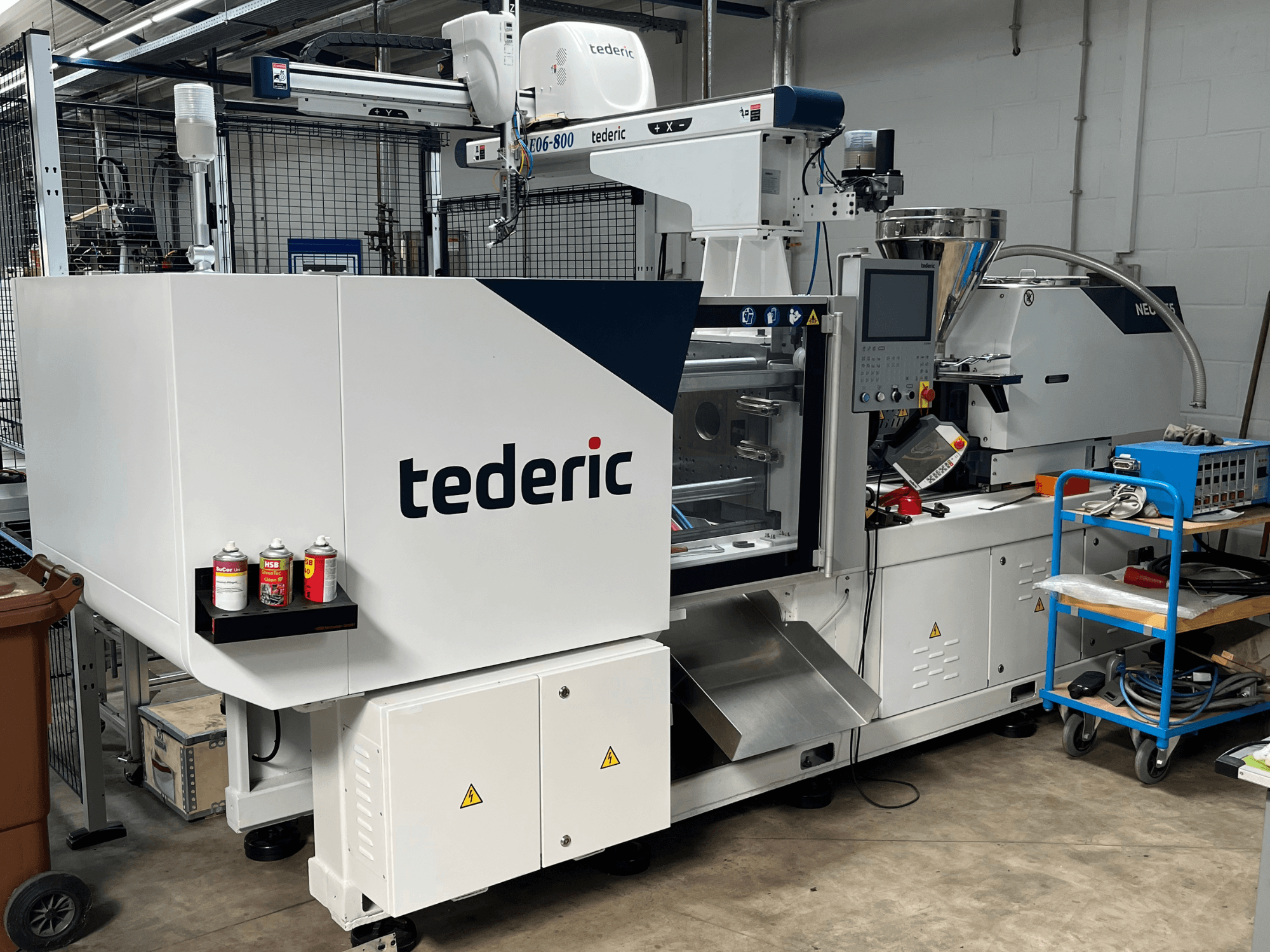

TEDERIC - NEO.E55/e110h DE-INJ-TED-2023-00001

General

• Operating Hours: Approx. 260 h

• Machine Condition: Working

Injection Unit

• Screw Diameter: 25 mm

• Screw Type: Nitrided Thermoplastic Screw

• Barrel: Bimetallic

• Nozzle Radius: 10 mm

• Nozzle Bore Diameter: 2.5 mm

• Stainless Steel Material Hopper

• Manually Sliding Material Hopper

• Feed Throat Temperature Control

• Dosing Signal Output

• Ceramic Heater Bands

• Hot Runner Controller: 8 Zones

• Temperature Control Channels: 8

Clamping Unit

• Centering Ring Diameter: 100 mm

• Mounting Plate Threads: M16

• Euromap Standard: Euromap 2

• 3-Stage Central Ejector

• Central Lubrication for Mould Height Adjustment

• Pneumatic Ejector: Included

• Pneumatic Core Pull Control: 1

• Core Pull Connector: Euromap 13 (HAN 16A)

• Water Circuits: 6

Control & Electrical

• Control Unit Brand: KEBA

• Display: 12" Color TFT Touchscreen

• Power Supply: 400 V

• Frequency: 50 Hz

• Main Switch: 4P+PE

Automation & Accessories

• 3-Axis Linear Robot: TLRE03-650, (optional, not included)

• Robot Payload: 3 kg

• Pneumatic C-Axis

• Mechanical Robot Interface: Euromap 18

• Electrical Robot Interface: Euromap 67

• Vacuum Circuits: 2

• Compressed Air Circuits: 2

• Automatic Lubrication of Main Axes

• Robot Protection Class: IP67

• Emergency Stop: 1

• Conveyor Belt Dimensions (optional, not included): 2000 × 400 × 1100 (+100) mm

• Safety Fence Dimensions (optional, not included): 800 × 1000 × 2000 mm

• Spare Parts Kit with Non-Return Valve (optional, not included)
