➤ Used Netstal S-1500K-460 For Sale | gindumac.com

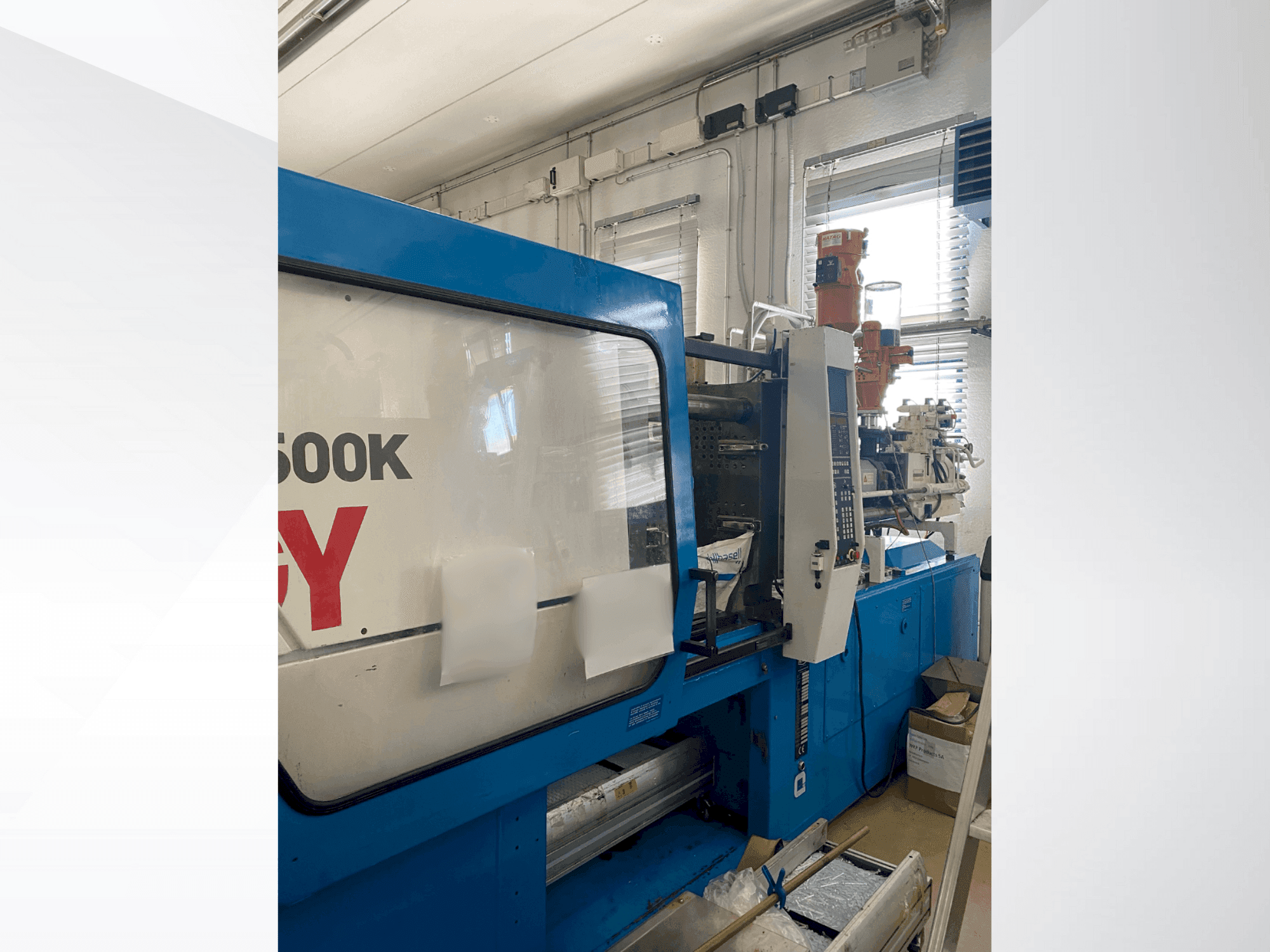

This Netstal S-1500K-460 hydraulic injection moulding machine was manufactured in 2004. It features a clamping force of 1500 KN, a screw diameter of 40 mm, and a maximum shot volume of 201 cm³. Dimensions include a length of 6114 mm, width of 1732 mm, and height of 2307 mm. A great opportunity to buy this Netstal S-1500K-460. For more information about this hydraulic injection moulding machine, please reach out to us.

Overview

brand: Netstal
year: 2004
MODEL: S-1500K-460
application type: Injection Moulding
Location: Switzerland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Netstal S-1500K-460

General Data

Measurements width: 1732 MM
Measurements depth: 6114 MM
Measurements height: 2307 MM
Machine weight: 12100 KG

Injection Unit

Screw diameter: 40 mm
Shot weight: 193 g (PS)
Injection pressure: 2218 bar
Heating capacity: 19.9 kW

Clamping unit

Clamping force: 1500 kn
Opening stroke: 450 mm
Distance between bars: 460 x 460 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max metering stroke: 160 mm
- - Max shot volume: 201 cm³
- - Injection flow rate: 1382 cm³/s
- - Opening force: 412 kn
- - Tie bar diameter: 85 mm
- - Dry cycle – stroke: 1. 3 s
- - Nozzle contact force: 57 kn
- - High injection pressure: 2218 bar
- - High injection flow rate: 1382 cm³/s

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
