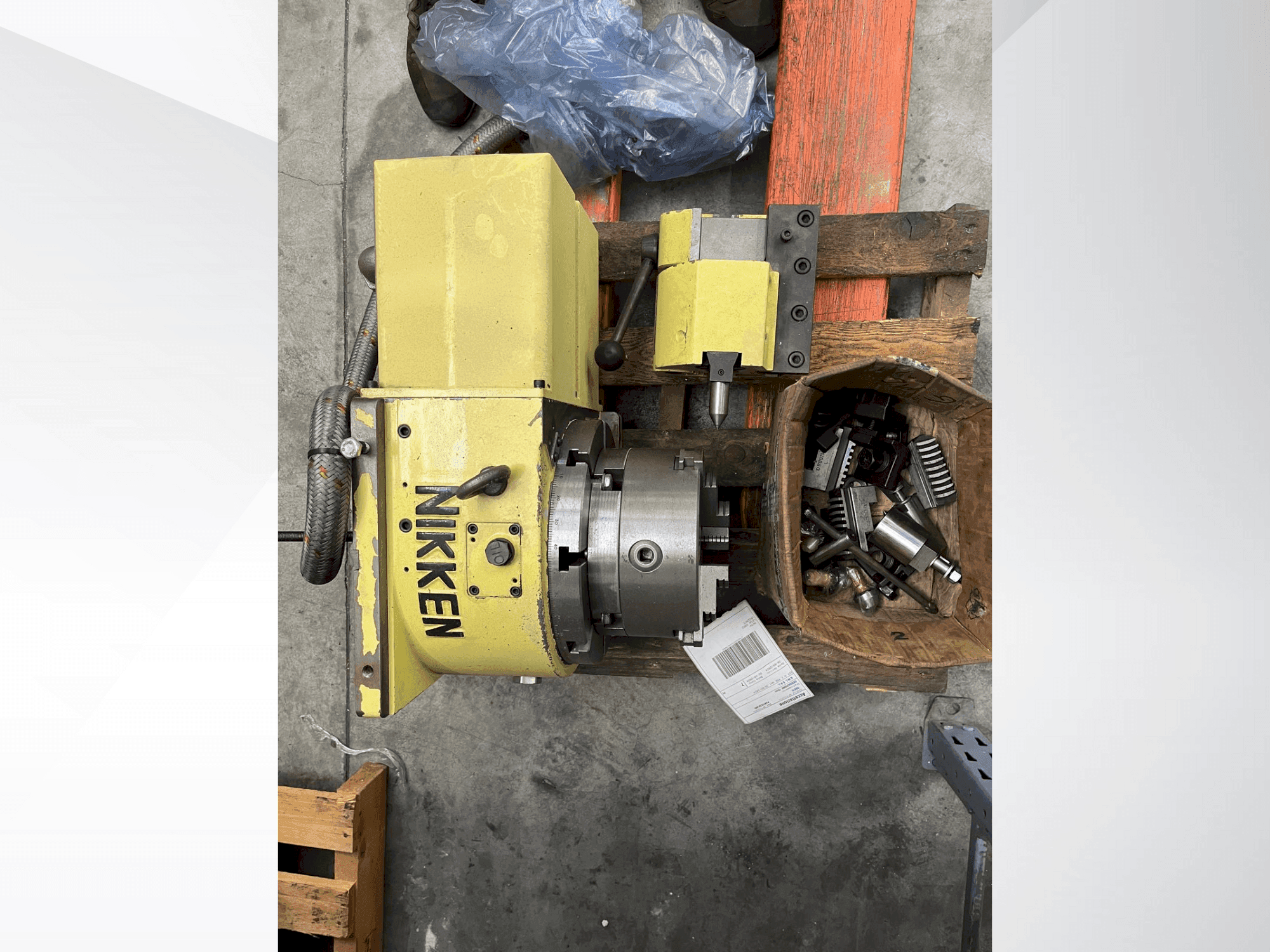

NIKKEN CNC 260

Photo Gallery

NIKKEN - CNC 260IT-OTH-NIK-2018-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used NIKKEN CNC 260 Machine Tool For Sale | gindumac.com

This NIKKEN CNC 260 was manufactured in 2018. It features a Ø170 mm table diameter, 170 mm center height, and a pneumatic clamp system with a force of 1560 Nm. The machine supports a maximum horizontal work load of 120 kg and vertical load of 60 kg. Weighing 60 kg, it's equipped with a FANUC αiF4 servo motor and dual-supported worm shaft. Consider the opportunity to buy this NIKKEN CNC 260. Contact us for more information.

Overview

brand: NIKKEN
year: 2018
MODEL: CNC 260
application type: Other Machine Tools
Location: Italy
machine type: Machine Tool
control unit brand: FANUC

Technical Information - NIKKEN CNC 260

Control Unit

Control Brand: FANUC

Movement

Number of Axes: 2

Additional Information

Additional equipment

Motor Mount Plate to Table Face Distance: 200 mm
Back Housing to Table Face (excluding motor): ~150 mm

Machine Benefits

Qualitative Machine Benefits

Air pressure for clamp: 0. 5 mpa
Bearing type: cross-roller
Worm shaft support: dual support
Lubrication: grease
Table face bolt circle: Ø130 p. C. D with 8x m8-6h tapped holes
Center bore: Ø35h7 with depth ~40 mm
T-slot width: 12 mm
Additional hole positions: m6 holes on 60° spacing
Mounting holes: 4x m12 tapped holes at each corner
Hole spacing: 200 mm x 170 mm

Technical Machine Benefits

Table diameter: Ø170 mm
Center height: 170 mm
Table bore: Ø35h7
Clamp system: pneumatic
Backlash (worm gear): 4 sec
Indexing accuracy: 20 sec
Repeatability: ±3 sec
Gear ratio: 1/90
Max work load (horizontal): 120 kg
Max work load (vertical): 60 kg

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
