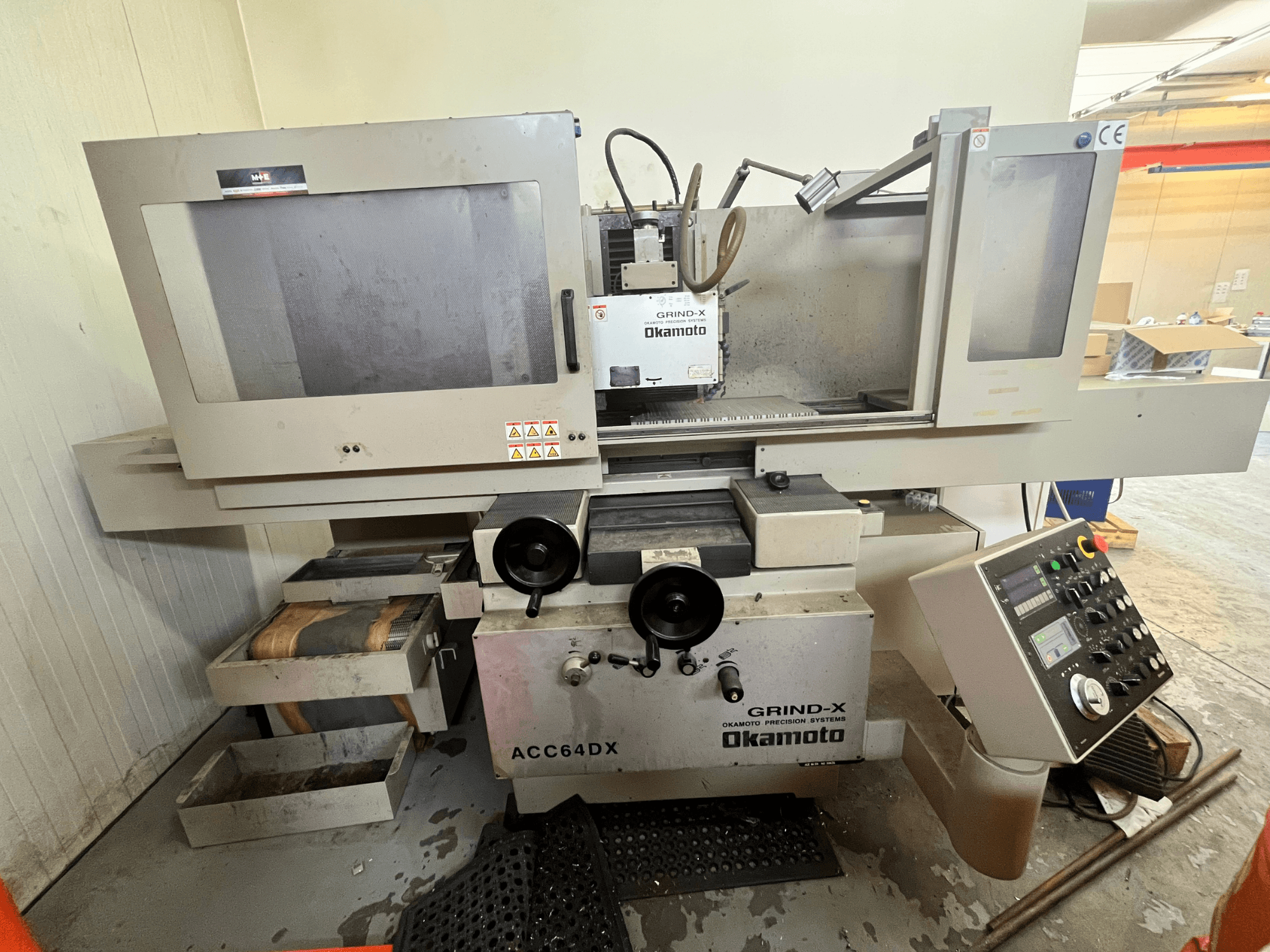

Okamoto ACC64 DX Surface Grinding Machine in front view, showing grinding wheel, control panel, and storage drawers.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

OKAMOTO ACC64 DX

Photo Gallery

OKAMOTO - ACC64 DXHU-GRI-OKA-2018-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used OKAMOTO ACC64 DX For Sale | gindumac.com

This 3-axis OKAMOTO ACC64 DX was manufactured in 2018. It features a table size of 650 × 440 mm and a maximum workpiece weight capacity of 420 kg. The grinding wheel size is Ø305 × 38 × Ø127 mm, with a speed of 1,800 rpm. If you are looking to get high-quality grinding capabilities, consider the OKAMOTO ACC64 DX surface grinding machine we have for sale. Contact us for further details.

Overview

brand: OKAMOTO
year: 2018
MODEL: ACC64 DX
application type: Grinding
Location: Hungary
machine type: Surface Grinding Machine

Technical Information - OKAMOTO ACC64 DX

Dimensions

Machine Weight: 2900 kg

Movement

Number of Axes: 3
X-axis Travel: 750 mm
Y-axis Travel: 440 mm

Additional Information

Table size: 650 × 440 mm
Magnetic chuck size: 600 × 400 mm
Maximum workpiece weight: up to 420 kg
Grinding wheel size: Ø305 × 38 × Ø127 mm
Grinding wheel speed: 1,800 rpm
Automatic vertical feed: servo-controlled, with fine infeed increments
Hydraulic longitudinal and cross table feed
Automatic grinding cycles
Automatic vertical downfeed

Additional equipment

Magnetic chuck
Coolant system (depending on machine configuration)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
