- ➤ Used OKAMOTO ACC84 DX For Sale | gindumac.com

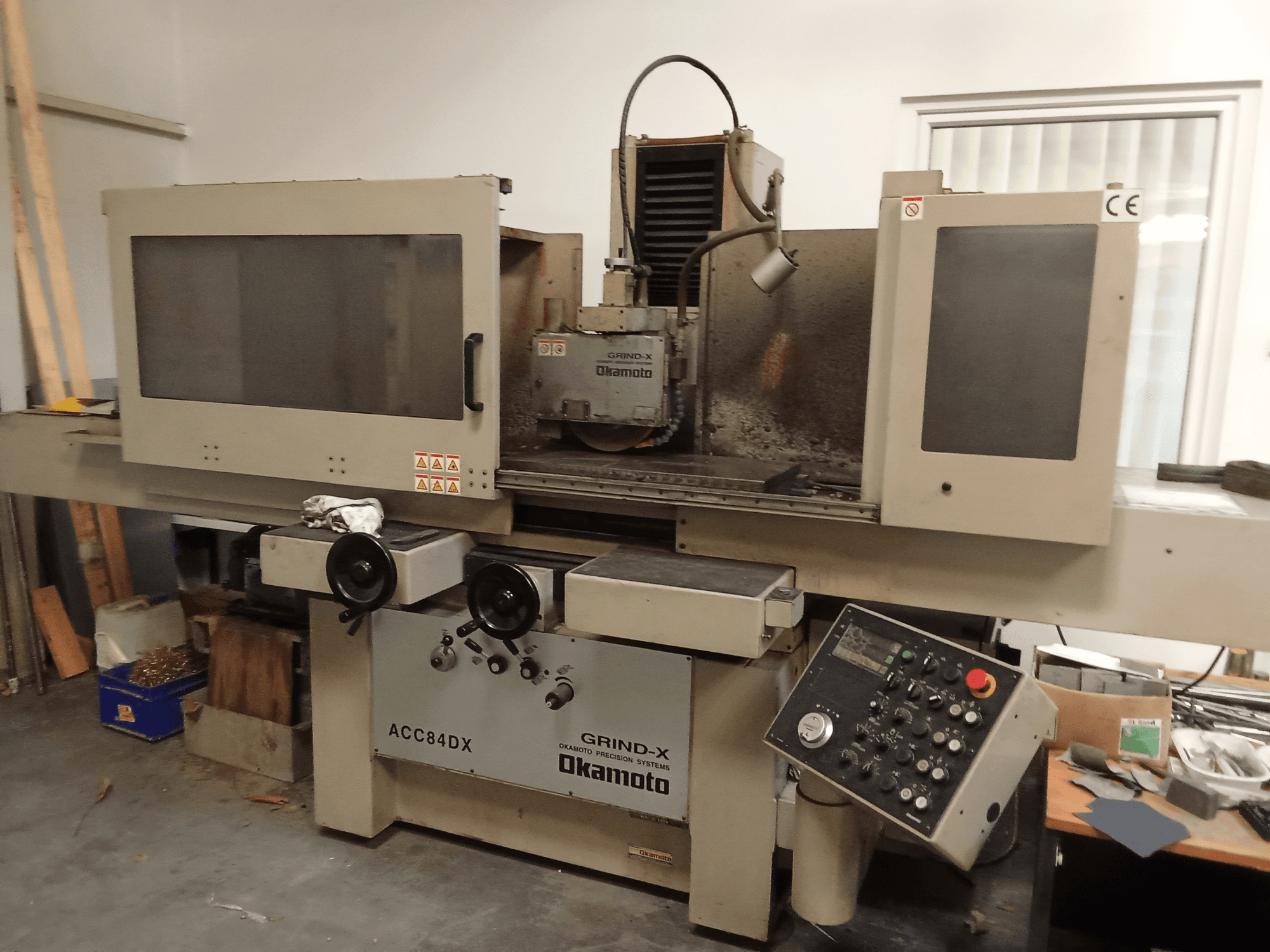

This 3-axis OKAMOTO ACC84 DX surface grinding machine was manufactured in 2018. It features a table size of 850 × 400 mm and a maximum workpiece weight of 700 kg. The grinding wheel dimensions are Ø355 × 38 × Ø127 mm, with a grinding wheel speed of 1,800 rpm. If you are looking to get high-quality grinding capabilities, consider the OKAMOTO ACC84 DX machine we have for sale. Contact us for further details.
Overview
- brand: OKAMOTO
- year: 2018
- MODEL: ACC84 DX
- application type: Grinding
- Location: Hungary
- machine type: Surface Grinding Machine
Technical Information - OKAMOTO ACC84 DX
Dimensions
- Machine Weight: 3900 kg
Movement
- Number of Axes: 3
- X-axis Travel: 950 mm
- Y-axis Travel: 440 mm
Additional Information
Working area:
Table size: 850 × 400 mm
Maximum workpiece weight: 700 kg
Distance from table surface to spindle centre: 47.5–547.5 mm
Grinding unit:
Grinding wheel: Ø355 × 38 × Ø127 mm
Grinding wheel speed: 1,800 rpm
Automatic vertical feed: 0.001–0.03 mm per pass
Feeds and cycles:
Hydraulic longitudinal table feed
Hydraulic cross table feed
Automatic grinding cycles
Automatic vertical downfeed
Additional equipment
Magnetic chuck, 800 × 400 mm
Coolant system (depending on machine configuration)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
