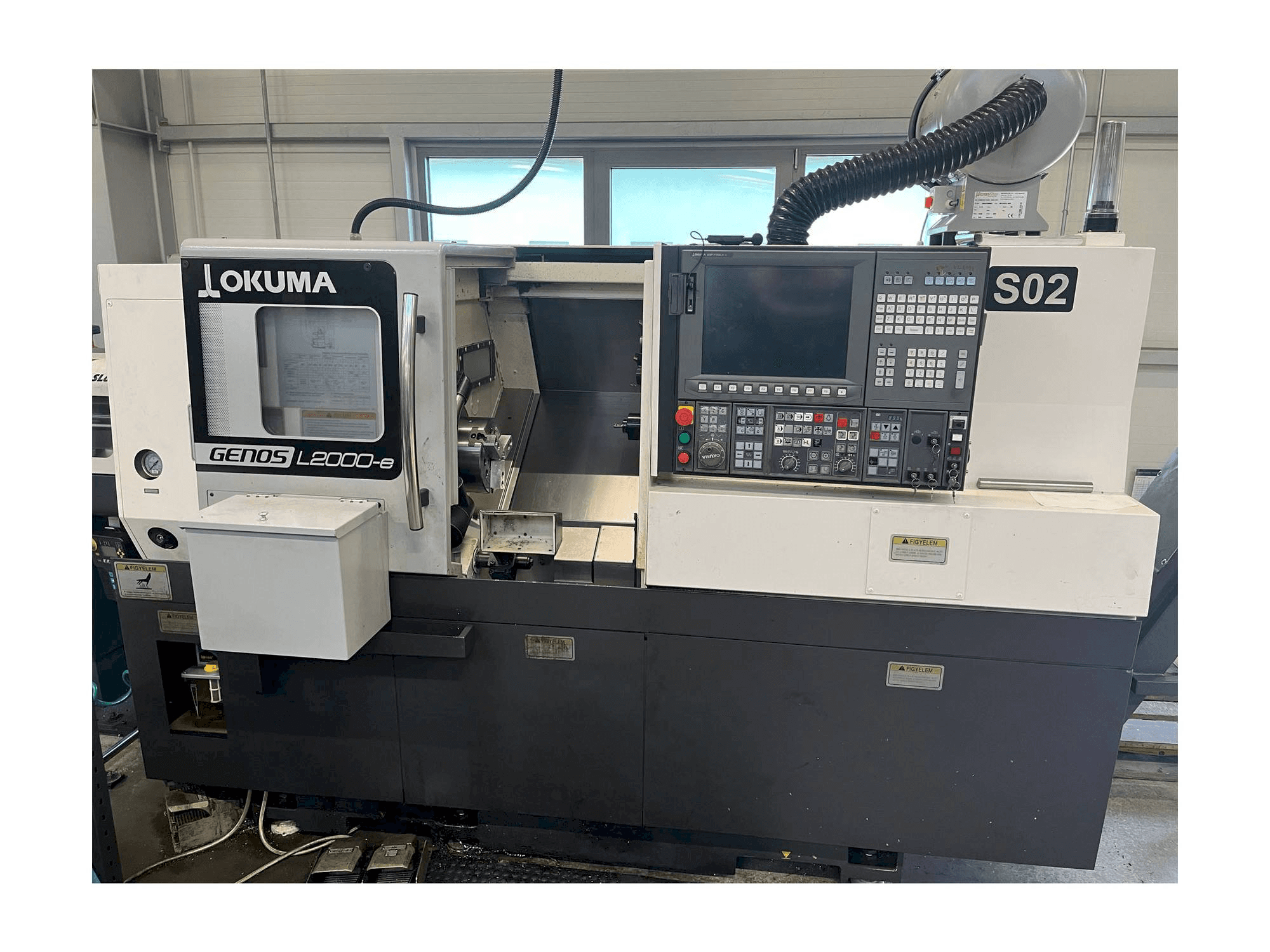

Front view of Okuma GENOS L200  machine

Okuma GENOS L2000-e

Okuma - GENOS L2000-e

2018

63,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This OKUMA GENOS L2000-e Lathe was manufactured in the year 2018 in Taiwan. It is equipped with a OKUMA OSP P300L-R control unit. The machine has a spindle speed of 107-4500 rpm.

Overview

  • brand: Okuma
  • year: 2018
  • MODEL: GENOS L2000-e
  • application type: Turning
  • Location: Hungary
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: OKUMA
  • GINDUMAC ID: HU-TUR-OKU-2018-00001

Technical Information

General Data

  • Measurements width: 2081 mm
  • Measurements depth: 1550 MM
  • Measurements height: 1569 mm
  • Machine weight: 3800 kg

Control Unit

  • Brand: OKUMA
  • Model: OSP P300L-R

Main drive

  • Spindle speed range: 107-4500 1/MIN
  • Spindle bore: 66 mm
  • Tool taper: JIS A2-6

Movement

  • X-AXIS Movement: 165 mm
  • Z-AXIS Movement: 400 mm
  • C-AXIS Movement: 360º MM

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Bar feeder not included in the price
      • - Swivel diameter over bed 450 mm
      • - Max. Machinable diameter 200 mm
      • - Front main spindle bearing diameter 100 mm
      • - Turret head type m-v12 (vdi) number of tools 12
      • - Tool size 20x20 mm
      • - Tool shank diameter ∅32 mm
      • - Tool change time 0,1 sec
      • - Driven tool speed 60-6. 000 1/min
      • - Rapid traverse (x) 20 m/min rapid traverse (z) 25 m/min
    • Qualitative Machine Benefits:
      • - Cone of segment sleeve mt5
      • - Segment sleeve displacement 100 mm
      • - Main motor power (30 min/process) 11/7,5 kw
      • - Driven tool power 4,0/1,8 kw
      • - Ce and emc marked〈european standard specification〉

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
