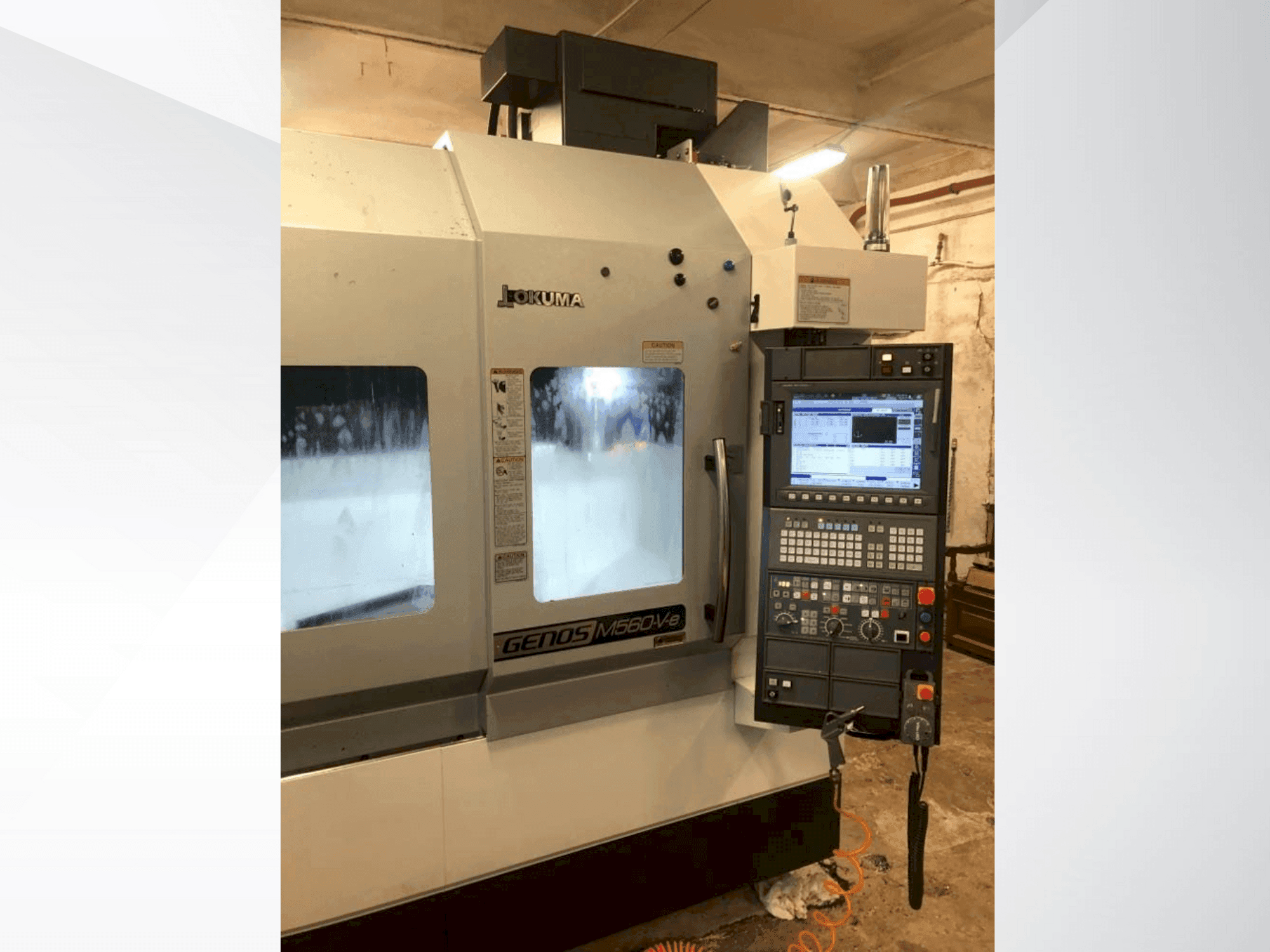

This 4-axis OKUMA vertical machining centre was manufactured in 2021. It features an impressive travel range with X-axis at 1,050 mm, Y-axis at 560 mm, and Z-axis at 460 mm. The spindle can reach speeds up to 15,000 min^-1 and supports a maximum load capacity of 900 kg. Rapid traverse rates are 40 m/min for X and Y axes and 32 m/min for Z-axis, enhancing productivity. The machine accommodates 32 tools with a max tool diameter of 125 mm when adjacent slots are vacant. Reach out for further details regarding this vertical machine center.
Overview
- brand: Okuma
- year: 2021
- MODEL: GENOS M560-V-e
- application type: Milling
- Location: Lithuania
- machine type: Vertical Machining Centre
- availability: Sold
Technical Information - Okuma GENOS M560-V-e
General Data
- Measurements height: 2746 mm
- Machine weight: 8,300 kg
Main drive
- Number of spindles: 1
- Spindle speed range: 15000 1/MIN
- Spindle motor power: 22/18.5 kW
- Number of axis: 4
Movement
- X-AXIS Movement: 1050 mm
- X-AXIS Rapid traverse: 40 m/min
- Y-AXIS Movement: 560 mm
- Y-AXIS Rapid traverse: 40 m/min
- Z-AXIS Movement: 460 mm
- Z-AXIS Rapid traverse: 32 m/min
Tools
- Number of index: 32
Additional Equipment
- - Feedrate
- - Tool shank: MAS BT.40 [DIN No.40]
- - Pull stud: JIS
- - NC unit: OSP-P300M-e
Additional Information
- Technical Machine Benefits:
- - Table top to spindle nose: 150 to 610 mm
- - Max work dimension: 1,300 x 560 mm
- - Distance from floor to table top: 800 mm
- - Max load capacity: 900 kg
- - Speed ranges: infinitely variable
- - Tapered bore: 7/24 taper no. 40
- - Bearing dia: ø70 mm
- - Cutting feedrate: 32,000 m/min
- - Max tool dia (with adjacent tools): ø90 mm // max tool dia (without adjacent tools): ø125 mm // max tool length: 300 mm // max tool mass: 8 kg // max tool mass moment: 7,8 (8 kg x 100 mm) n·m // tool selection: memory random
- - Axis feed: x·y·z: 3. 5 kw
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
Products related to Okuma GENOS M560-V-e
TC 32B
Brother - Vertical Machining Centre
MTV 655/60N
Mazak - Vertical Machining Centre
F5
Makino - Vertical Machining Centre

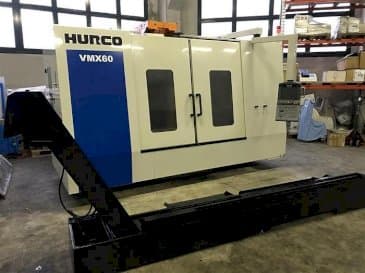

VMX 60
Hurco - Vertical Machining Centre
C30U
HERMLE - Vertical Machining Centre
UX600/15C
Quaser - Vertical Machining Centre
UMC-500SS
HAAS - Universal Machining Centre
DMP 70 with WH3
DMG MORI - Vertical Machining Centre
VMX 64/50T
Hurco - Vertical Machining Centre
SPACE CENTER MA-600HB
Okuma - Horizontal Machining Centre

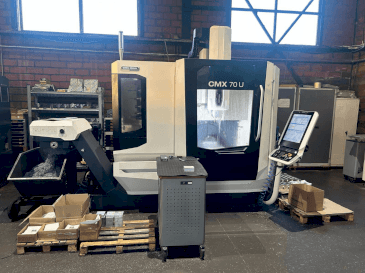

CMX 70U
