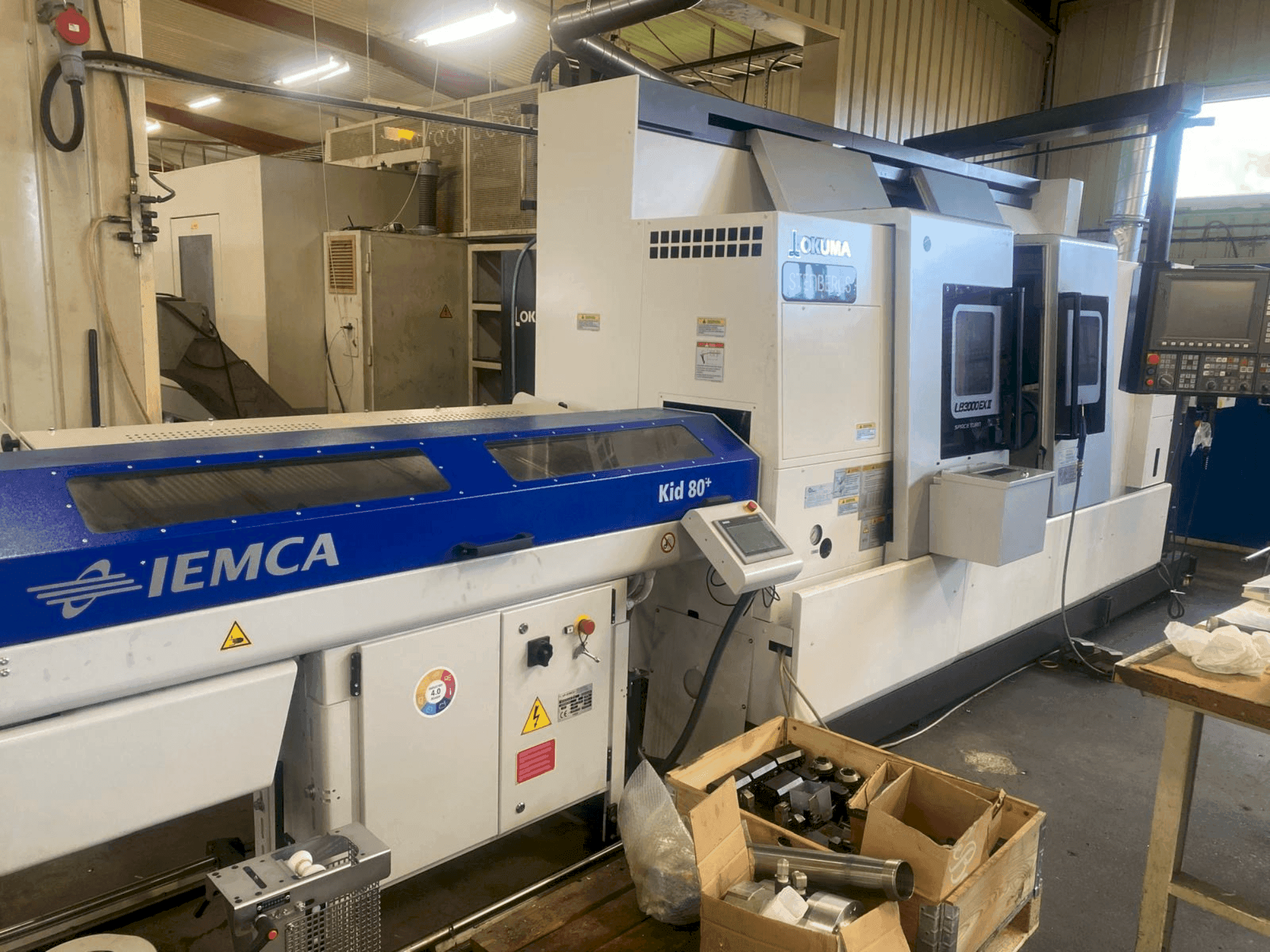

Okuma - LB 3000 EX II with Iemca KID 80SE-TUR-OKU-2022-00001

• Distance between spindle noses: 1085 mm

• Maximum turning diameter: 340 mm

• Bar capacity through main spindle draw tube: 80 mm

• Sub spindle bore: 63 mm

• Bar capacity through sub spindle draw tube: 52 mm

• Rotational speed of driven tools: 45–6000 rpm

• Control: Okuma OSP P300L (OSP Suite), 15" screen

• Configuration: Main spindle (left) + sub-spindle (right), Y-axis, turret with driven tools (radial tool mounting)

• Max turning diameter: 340 mm

• Spindle speeds:

  • Left (main): 42–4,200 rpm

  • Right (sub): 50–6,000 rpm

• Spindle motors:

  • Left (main): PREX 30/22 kW

  • Right (sub): PREX 11/7.5 kW

• Special main spindle (“Big Bore” option): Ø91 mm, nose JIS A2-8, 42–4,200 rpm, PREX 30/22 kW, max torque 700 Nm

• Control/monitoring functions:

  • Spindle orientation

  • Cutting load monitoring (“Load Monitor”) selectable for all axes and spindles

  • One-Touch IGF M-E conversational programming

  • Tool life monitoring: by workpiece count, by cutting engagement time, by cutting load; automatic sister-tool change or stop/alarm if no replacement

• Machine options: Additional flushing for left slideway covers

Additional equipment

• 250 mm SMW chuck on the main spindle

• 170 mm Kitagawa chuck on the sub spindle

• 6 sets of soft jaws

• 4 straight driven tool holders

• 4 angled driven tool holders

• 2 double turning tool holders

• 4 boring bar holders

• 8 standard turning tool holders

• 8 straight ER holders with about 30 ER collets

• Workholding (chucks)

  • SMW‑Autoblok BBD250‑77 / A8, hydraulic 3‑jaw chuck

    • Includes: 1 set soft top jaws, hydraulic cylinder VN170‑77, drawtube ID 72 with cylinder flange

    • Max speed: 4,000 rpm; bar capacity: Ø72 mm

  • Kitagawa B206 (Ø170 mm), hydraulic 3‑jaw chuck

    • Includes: 1 set soft top jaws, hydraulic cylinder SR1146, drawtube/cylinder flange, ejector

    • Max speed: 6,000 rpm

• Part handling

  • Part catcher, swing-bucket type, Ø80 × L150 mm, max 5.8 kg

• Chip management

  • Cromar chip conveyor for LB3000 EX II C1000, slat type, right-hand discharge

• Bar feeding and interfaces

  • Bar feeder interface (OSP P300L)

  • IEMCA KID 80+ bar feeder (SX – Left) for Okuma LB3000 EX II

    • Includes: 7" touchscreen HMI, mechanical/electrical interface kit, additional light kit, roller guide kit for round/hex bars, spindle extension, bar pusher D=26 mm, bar pusher D=15 mm, paper manuals

    • Accessories: Floor frame for longitudinal movement in Z; spindle liner/reduction tube
