Okuma - LB3000ll EX MC 1000DE-TUR-OKU-2014-00003
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Okuma LB3000ll EX MC 1000

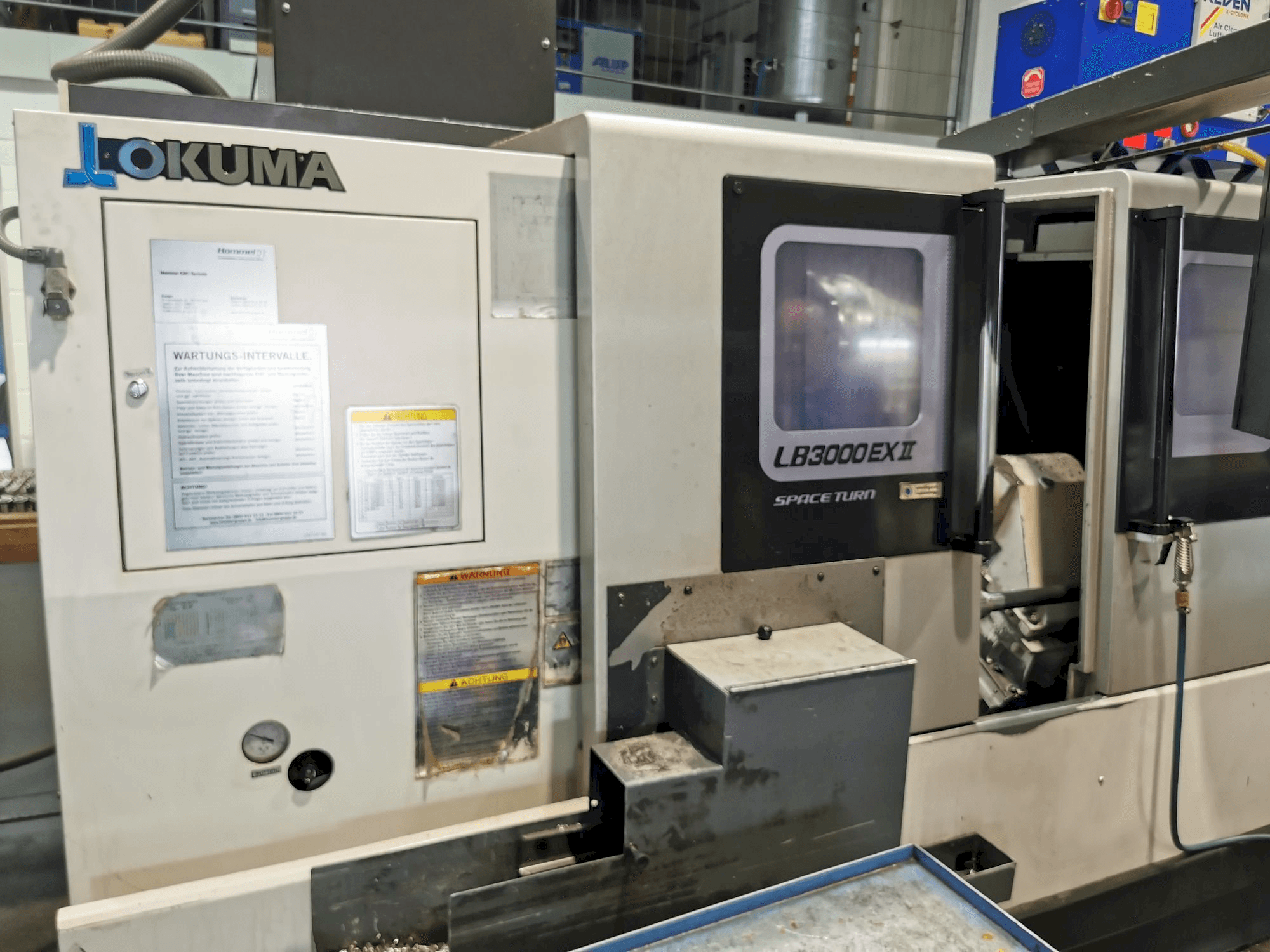

This Okuma LB3000ll EX MC 1000 Lathe was made in the year 2014 in Japan. This machine has 21010 production hours, of which 11219 are running time, 10325 are spindle hours and 9512 are machining time. It is operated through a 15'' colour 3D LCD OKUMA OSP-P300L control unit. This machine can work with a spindle speed range 50-5000 rpm and a spindle bore 80 mm.
Overview
- brand: Okuma
- year: 2014
- MODEL: LB3000ll EX MC 1000
- production hours: 21010
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: OKUMA
Technical Information - Okuma LB3000ll EX MC 1000
Control Unit
- Model: OSP-P300L
- Brand: OKUMA
Main drive
- Spindle speed range: 50-5000 1/MIN
- Spindle motor power: 22 kw
- Spindle bore: 80 mm
Workpiece
- Workpiece weight: 2.5 kg
Media
- Main electronic connection: 400 V 50 HZ
- Power consumption: 38 KVA
Additional Information
- Technical Machine Benefits:
- - With nc tailstock for turning length 1000 mm
- - Main spindle: short taper 6, front bearing 120 mm, torque 427 nm
- - Drive data: 7. 1 kw, 23. 7 nm, 45-4500 rpm
- - 12-position tool turret direct mounting system ''radial'', without tool holder 45-6000 rpm
- - C-axis with resolution 0. 001º
- - Rapid traverse 12 m/min, setting force: 5 kn
- - 15'' colour lcd with 3d
- - Tool changer as set-up aid for normal chucks (when using chuck 250 mm only without jaws), for coarsened main spindle bore 110 mm not standard, but optional.
- - Diameter 210 mm, speed max. 5500 rpm
- - Actuating force 50 kn, clamping range 5-80 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
