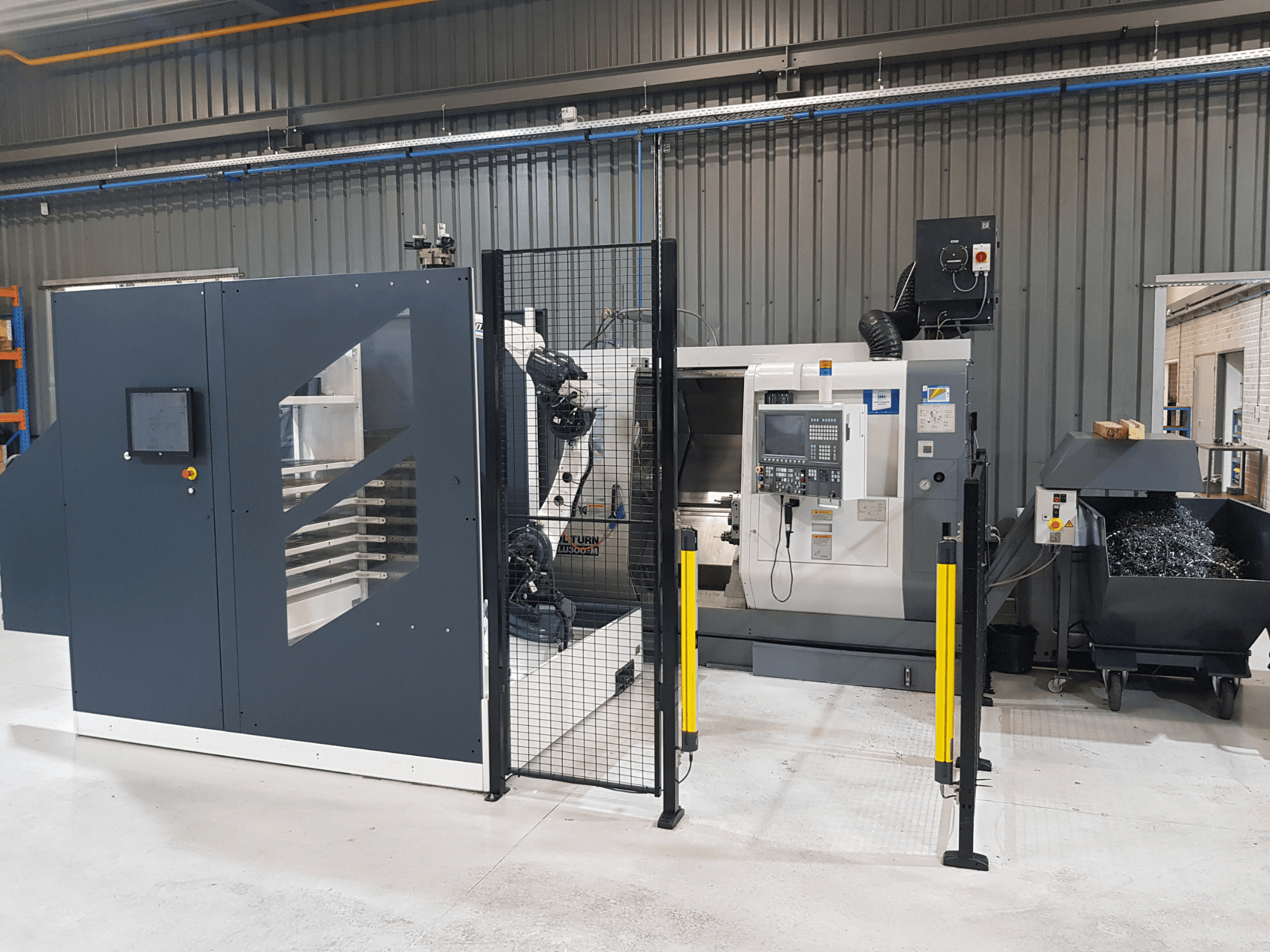

ALTURN automated lathe and CNC machine shown in a factory setting; front view with control panel and safety fencing visible.
ALTURN automated lathe and CNC machine shown in a factory setting; front view with control panel and safety fencing visible.

Okuma - LU300-M + BMONL-TUR-OKU-2006-00001

147,500 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This Okuma LU300-M was manufactured in 2006. A robust horizontal turning machine featuring a spindle bore of 62mm and speeds up to 5000 RPM. It includes dual turrets with 12 and 8 positions respectively, enhancing its versatility. Equipped with a Mayfran chip conveyor and OSP-P200L control for efficient operation. Consider the opportunity to buy this Okuma LU300-M horizontal turning machine. Contact us for more information about this machine.

Overview

  • brand: Okuma
  • year: 2006
  • MODEL: LU300-M + BMO
  • application type: Turning
  • Location: Netherlands
  • machine type: Horizontal Turning Machine
  • control unit brand: OKUMA

Technical Information - Okuma LU300-M + BMO

Control Unit

  • Control Brand: OKUMA
  • Control Model: OSP-P200L

Additional Information

Additional information

  • Turning Length: 600mm

  • Turning Diameter: 340mm

  • Spindle Bore: 62mm

  • Speed: 45–5000 RPM

  • Number of Turrets: 2

  • A Turret: 12 positions, all driven

  • B Turret: 8 positions

  • Tail Stock Center

  • Touchsetter

  • Kitagawa B210 chuck (optional)

  • Kitagawa CRL60A8 collet chuck with sleeve for both 173E and 185E collets (optional)

  • Fastems automatic door opener

  • Mayfran chip conveyor

  • AFS 1100m³/h fume extraction including HEPA filter (optional)

  • IGF one-touch software

  • Tool monitoring via load monitor

  • Hydraulic cylinder replaced in April 2023

  • Main bearing assembly, including brake pads, replaced in December 2024

  • Equipped with a BMO automation cell:

  • Cautomation cell with a 50kg robot arm load

  • Includes a double three-point gripper and a double two-point gripper

  • Additional production drawers with specific compartment configurations

  • Includes software for production parameter entry and Turnjob software for longer axles

  • Incl BMO cell with YOM 2017

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
