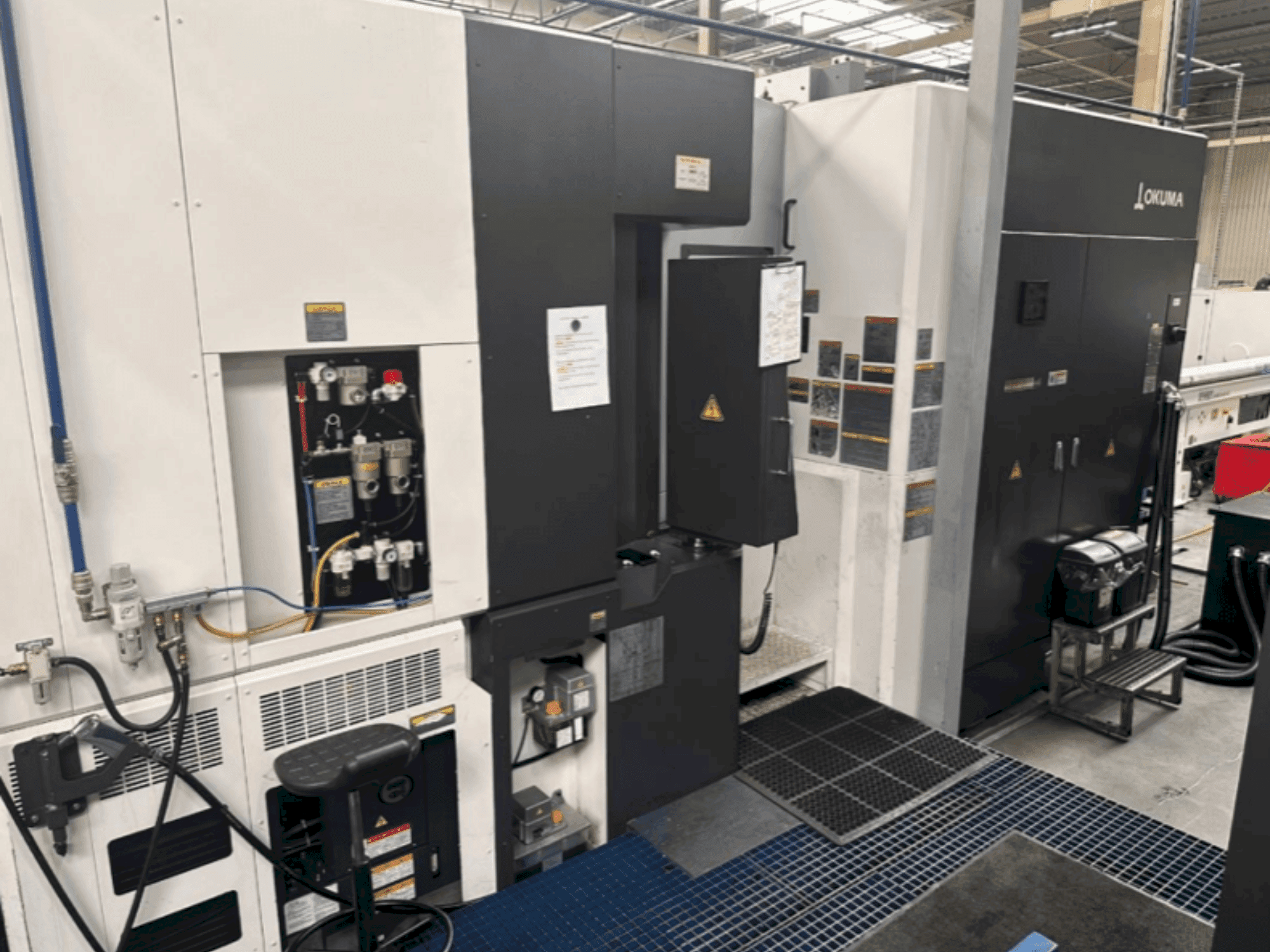

Okuma - MA 600H IIIT-MIL-OKU-2019-00001

• Useful table surface: 630 x 630 mm

• Max rotation dimensions: Ø1,000 x 1,000 mm

• Standard division: 0.001°

• Table drive power: 3.8 kW

• Table indexing time (90°–180°): 2.0–3.0 sec

• Pallet change time: 7 sec

• Axis travels / linear work area

  • Spindle center to table surface: 50–950 mm

  • Spindle nose to pallet center: 70–1,070 mm

  • Cutting feedrate: 60,000 mm/min

  • Positioning accuracy (X/Y/Z): ±0.004 mm (STD JIS)

  • Repeatability (X/Y/Z): ±0.0015/100 mm (STD JIS)

• Spindle

  • Front bearing diameter: Ø60 mm

  • Through-spindle coolant: Yes

  • Compressed air: 4–6 bar

• Tool magazine

  • Tool stations: 171

  • Fixed position tool management: Yes

  • Tool change time (tool-to-tool): 1.9 sec

  • Tool change time (chip-to-chip): 4.4 sec

• Floor space (2-pallet version): 3.38 x 6.11 m

• Installed power: 50 kVA

• Additional features

  • Presetting at table edge: Yes

  • Provision for Renishaw probe: Yes

  • Spindle cooling: Yes

  • Turning function: Yes

Additional equipment

• Chip conveyor: Mayfran Consep 2000
