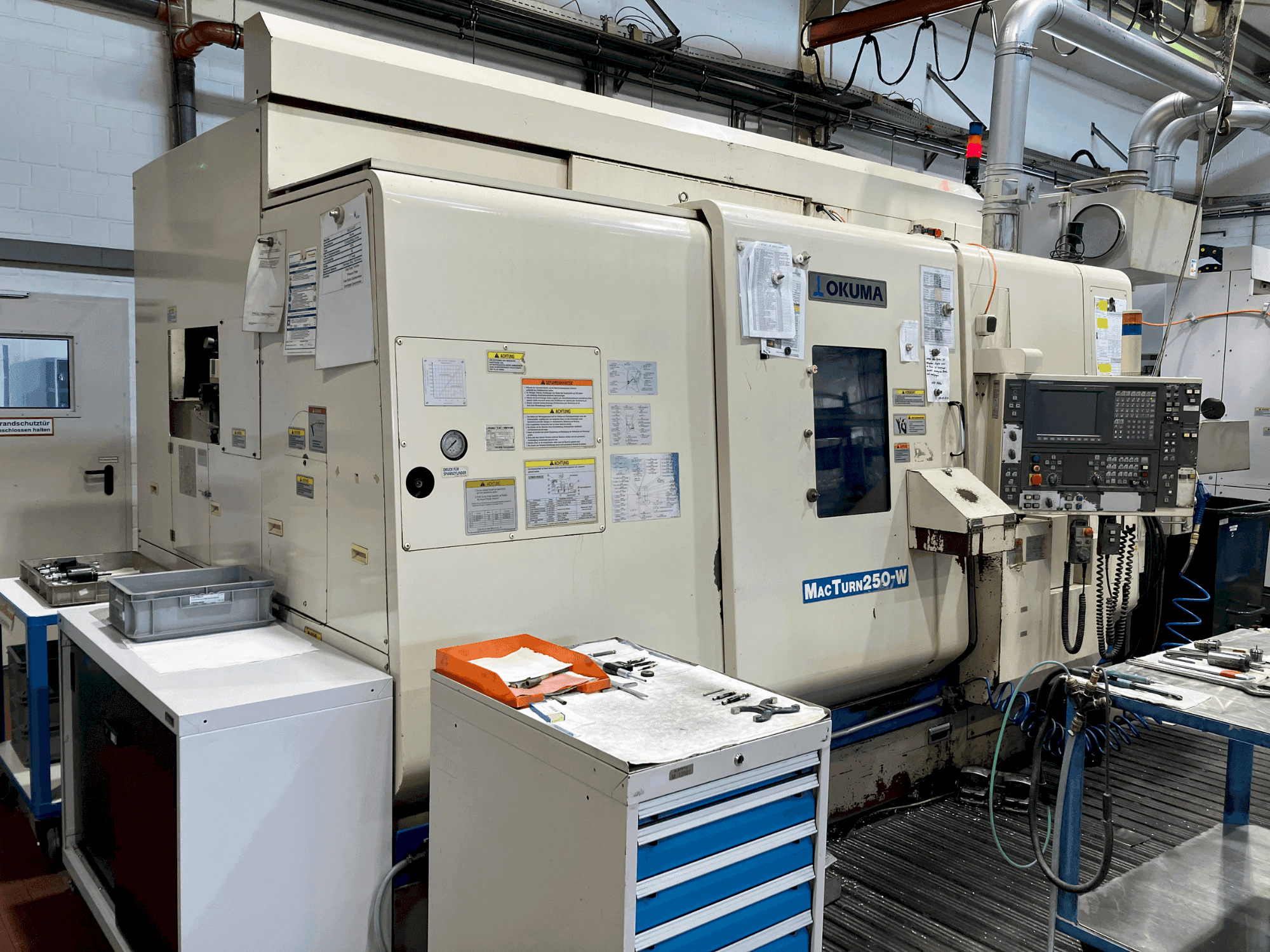

Front view of Okuma MacTurn 250-W machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Okuma MacTurn 250-W

Photo Gallery

Okuma - MacTurn 250-WDE-MIL-OKU-2004-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Okuma MacTurn 250-W For Sale | gindumac.com

This 7-axis Okuma MacTurn 250-W turn-mill centre was manufactured in 2004. It features a control unit OSP U100L, a maximum turning length of 1000mm, and a turning diameter of 530mm. The spindle supports speeds up to 5000 rpm with a bar capacity of 71mm. It includes a milling head with B-axis, a chip conveyor, and a tool measurement touch setter. For more information about this turn-mill centre, please reach out to us.

Overview

brand: Okuma
year: 2004
MODEL: MacTurn 250-W
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
control unit brand: OKUMA

Technical Information - Okuma MacTurn 250-W

Control Unit

Control Brand: OKUMA
Control Model: OSP U100L

Dimensions

Machine Depth: 5200 mm
Machine Height: 2730 mm
Machine Weight: 12500 kg

Movement

Number of Axes: 7
X-axis Travel: 40 mm

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 5000 RPM

Additional Information

Additional equipment

C-axis
Y-axis
Milling head with B-axis 1°
Chip conveyor link belt
Tool measurement = touch setter
Parts catcher
Handwheel
Oil cooler
KSM tank

Machine Benefits

Technical Machine Benefits

Max. Turning length: 1000 mm
Max. Turning diameter: 530 mm
Comprehensive axis capabilities including c-axis, y-axis, and b-axis
Main spindle chuck speed: 4500 rpm
Counter spindle speed range: 650-7000 rpm
Counter spindle chuck speed: 6000 rpm
Milling spindle drive power: 5. 5 kw
Milling spindle speed range: 12000 rpm
Rapid traverse speeds: 30 / 40 / 26 m/min

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
