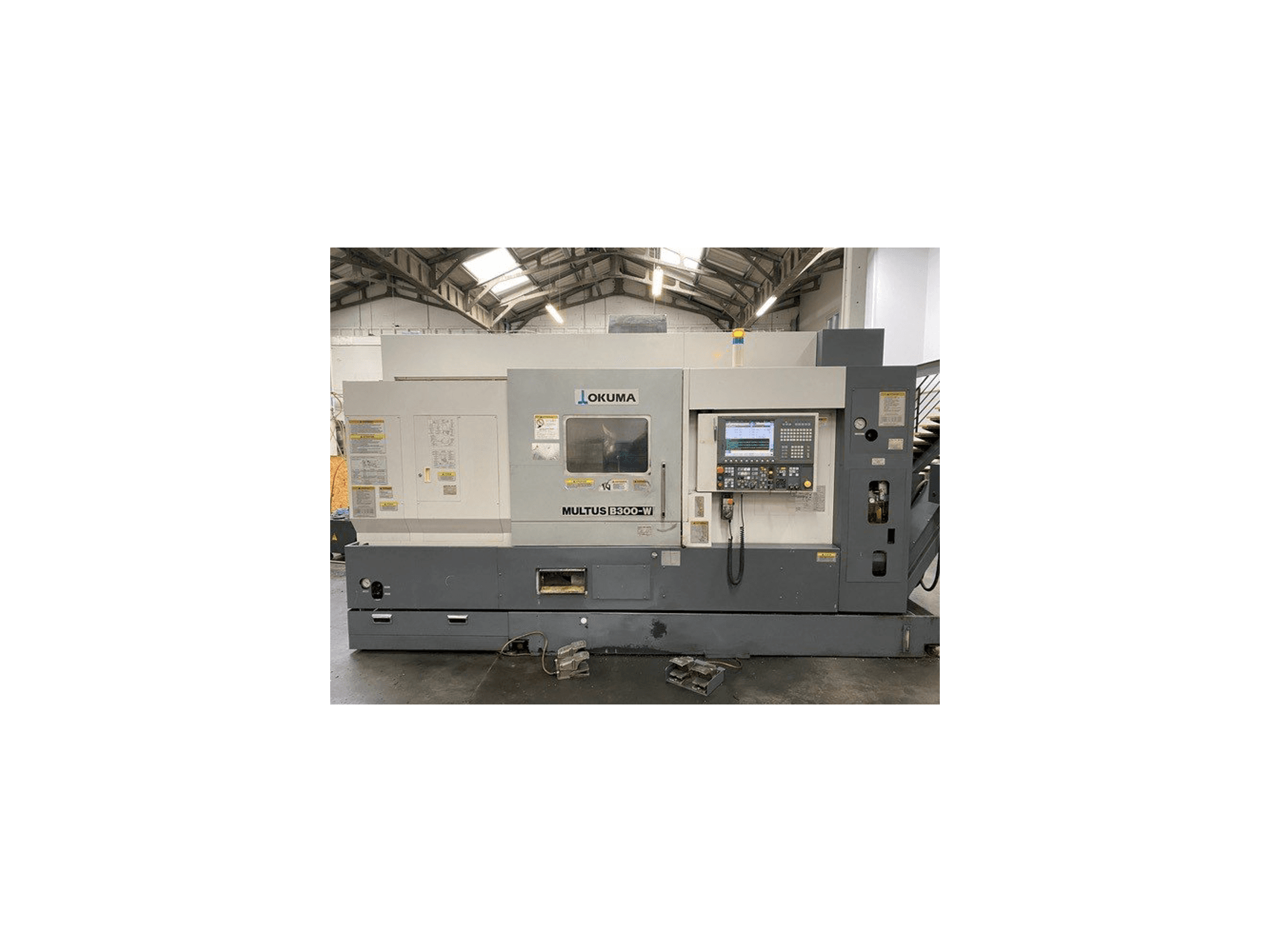

Front view of Okuma MULTUS B300-W machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Okuma MULTUS B300-W

Photo Gallery

Okuma - MULTUS B300-WFR-TUR-OKU-2008-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Okuma MULTUS B300-W

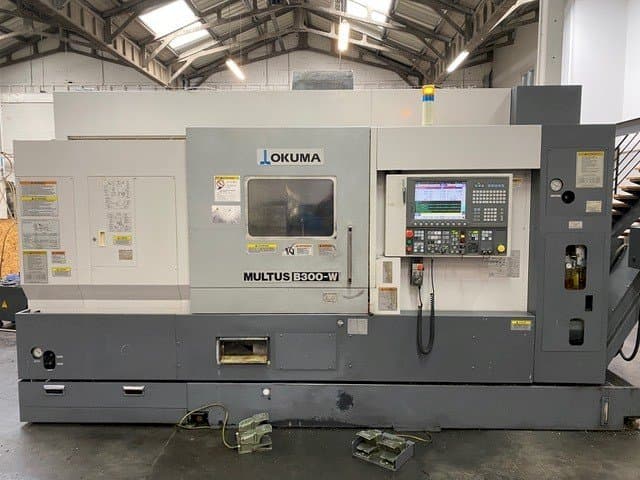

This Okuma MULTUS B300-W Lathe was manufactured in 2008 in Japan. It is operated through an OKUMA OPS-P200L control unit. This 6 axis machine can work with a spindle speed range 50-3800 rpm and a spindle bore 75 mm. It includes a high pressure coolant system and several tools holders. This machine is in good condition and comes with all its documentation.

Overview

brand: Okuma
year: 2008
MODEL: MULTUS B300-W
application type: Turning
Location: France
machine type: Turn-Mill Centre
control unit brand: OKUMA

Technical Information - Okuma MULTUS B300-W

Control Unit

Control Brand: OKUMA
Control Model: OPS-P200L

Movement

Number of Axes: 6
X-axis Travel: 580 mm
Y-axis Travel: 80 mm
Z-axis Travel: 935 mm

Technical Specification

Spindle Speed: 3800 RPM

Additional Information

Additional equipment

Collision v oidance system
Tools holders & tools
Tool presseter
High pressure coolant system

Machine Benefits

Qualitative Machine Benefits

All documentaiions
Under power
Good condition

Technical Machine Benefits

Max swing over saddle: 530 mm
Max machining diameter: 450 mm
Max working distance between spindles: 900 mm
B-axis: 225° ; w-axis sub-spindle slide: 1000 mm
C-axis on both spindles: 0. 001 degree (360000°)
Live tooling speed range: 90-10000rpm // live tooling horsepower: 15 hp
250 mm 3-jaw kitagawa chuck package on main
250 mm 3-jaw kitagawa chuck package on sub-spindle
Opposed spindle range: 38-5000 rpm // spindle horsepower both spindle: 20 hp each
Atc: 40; spindle nose: a2-8

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
