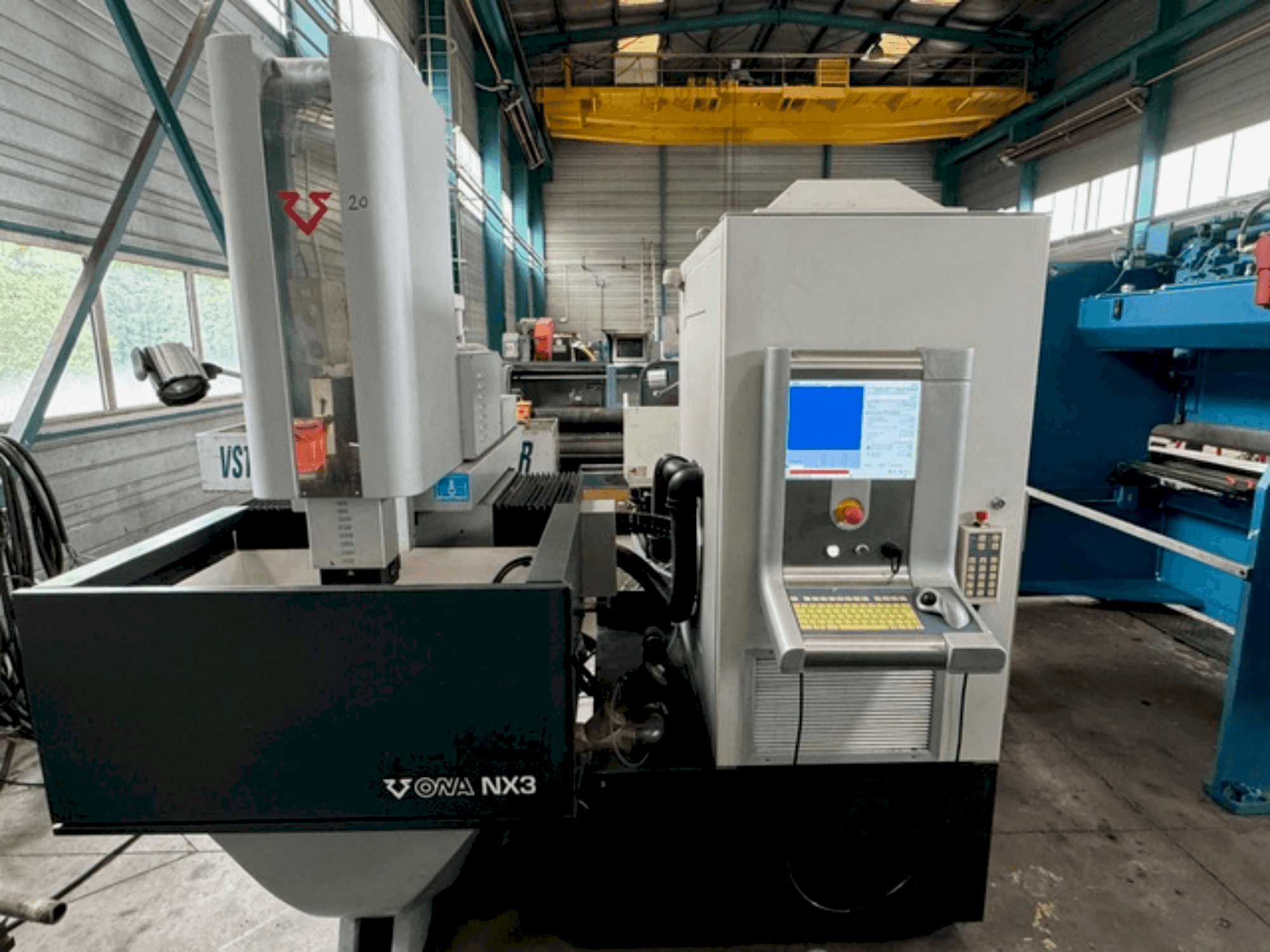

Front view of ONA NX3  machine

ONA - NX3FR-EDM-ONA-2009-00001


Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp

This 4-axis ONA NX3 Erosion machine was manufactured in 2009. It features a robust 900x600x330 mm pan size, a table load capacity of 750 kg, and a dielectric tank of 370 L. With only 1450 operating hours and 200 production hours, the ONA NX3 machine we have for sale represents a significant opportunity. Contact us for more information.


  • brand: ONA
  • year: 2009
  • MODEL: NX3
  • production hours: 200
  • application type: EDM
  • Location: France
  • machine type: Erosion Machine
  • availability: Sold

Technical Information - ONA NX3

Control Unit

  • Model: ONAS64CNC

Main drive

  • Number of axis: 4


  • X-AXIS Movement: 400 MM
  • Y-AXIS Movement: 300 MM
  • Z-AXIS Movement: 300 MM
  • C-AXIS Movement: 360° MM


  • Outer length: 600 MM
  • Outer width: 400 MM
  • Table load: 750 kg

    Additional Equipment

    • - Dielectric tank: 370 L
    • - Cooler

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Low production hours
        • - High precision and control
      • Qualitative Machine Benefits:
        • - Semi-new condition
        • - High table load capacity
        • - Large pan size for versatility

      Extra information

      • - Generator: 100 Amps / Pan size: 900x600x330 mm.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
