OPS INGERSOLL - SPEED HAWK 550DE-MIL-OPS-2010-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used OPS INGERSOLL SPEED HAWK 550 | Milling Machine

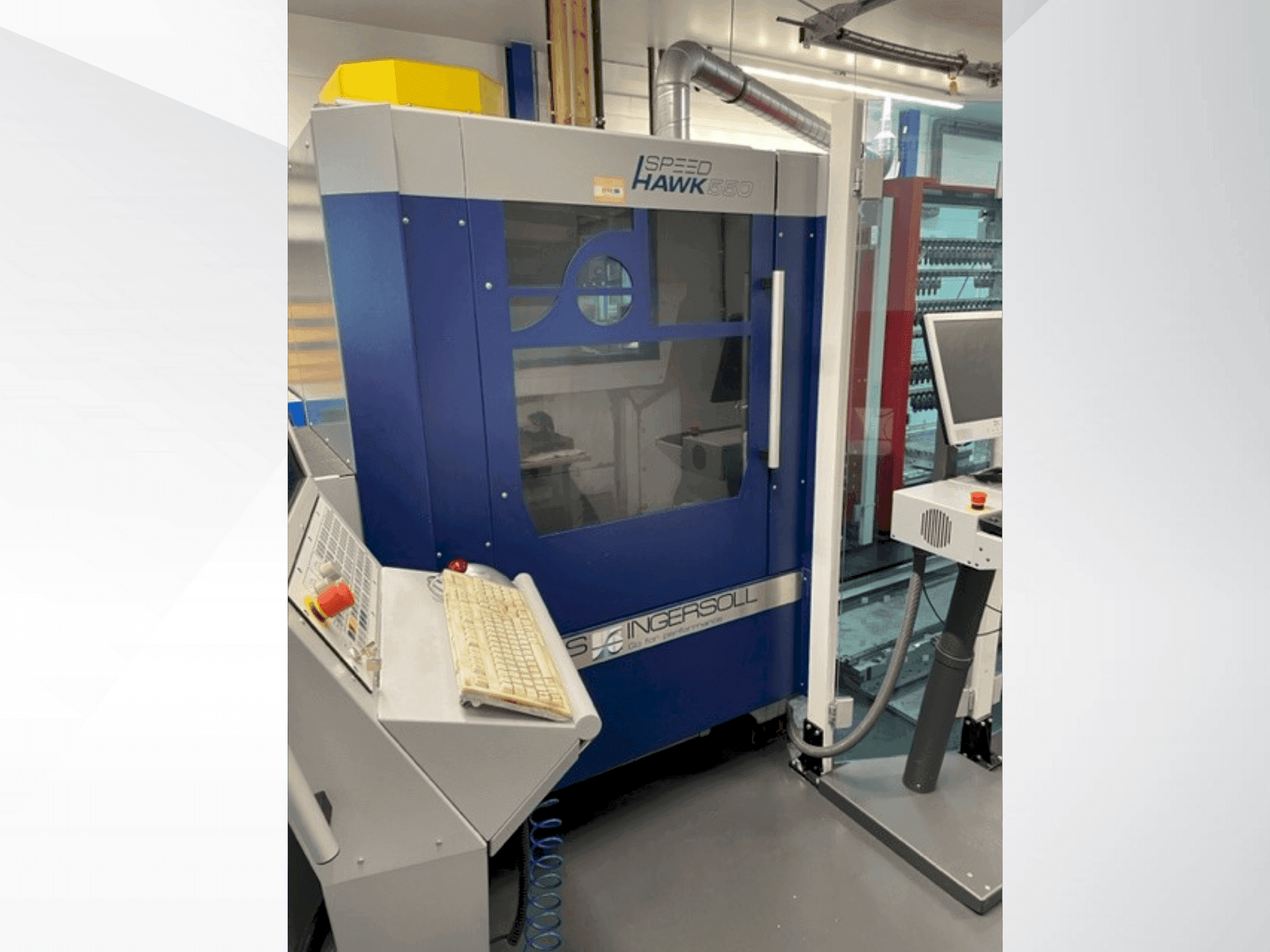

This 3-axis OPS INGERSOLL SPEED HAWK 550 milling machine was manufactured in 2010. It features a high-frequency spindle with speeds up to 42,000 rpm, HSK E40, and a laser system for tool breakage control. Additionally, it includes an infrared measuring probe and a MultiChange Easy basic unit. Ideal for milling, measuring, and die-sinking electrodes, the OPS INGERSOLL SPEED HAWK 550 represents a robust opportunity. It is optional a separate 40-position workpiece changer , a shrinking unit available and approx. 500 electrode holders available. Contact us for further details regarding this milling machine.
Overview
- brand: OPS INGERSOLL
- year: 2010
- MODEL: SPEED HAWK 550
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Immediately
Technical Information - OPS INGERSOLL SPEED HAWK 550
Control Unit
- Model: 2060
Main drive
- Number of spindles: 1
- Spindle speed range: 42000 rpm 1/MIN
- Tool taper: HSK E40
- Number of axis: 3
Movement
- X-AXIS Movement: 500 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 400 mm
Additional Equipment
- - Laser system for tool breakage control and tool length-diameter compensation
- - Infrared measuring probe
- - MultiChange Easy basic unit
- - Diebold shrink unit
- - Optional: Around 500 pieces electrode tools available
Additional Information
- Technical Machine Benefits:
- - Ultra-high spindle speed: 1-42,000 rpm for high-precision and fast machining operations.
- - Advanced tool control: laser system for tool breakage control and tool length-diameter compensation for increased accuracy and reduced downtime.
- - Versatile measuring system: infrared measuring probe for precise measurements.
- - Optional: seperate 40-position workpiece changer available / shrinking unit available / approx. 500 electrode holders available
- Qualitative Machine Benefits:
- - Precision machining: high-quality, precise machining capabilities suitable for die-sinking electrodes.
- - Improved tool life: diebold shrink unit ensures proper tool clamping, supporting extended tool life.
- - This machine together with ZK GENIUS 700 (2018) + Chameleon Automation is a Automation cell for milling, measuring and die-sinking electrodes": https://www.gindumac.com/product/zk-genius-700_DE-EDM-ZKX-2018-00001
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
