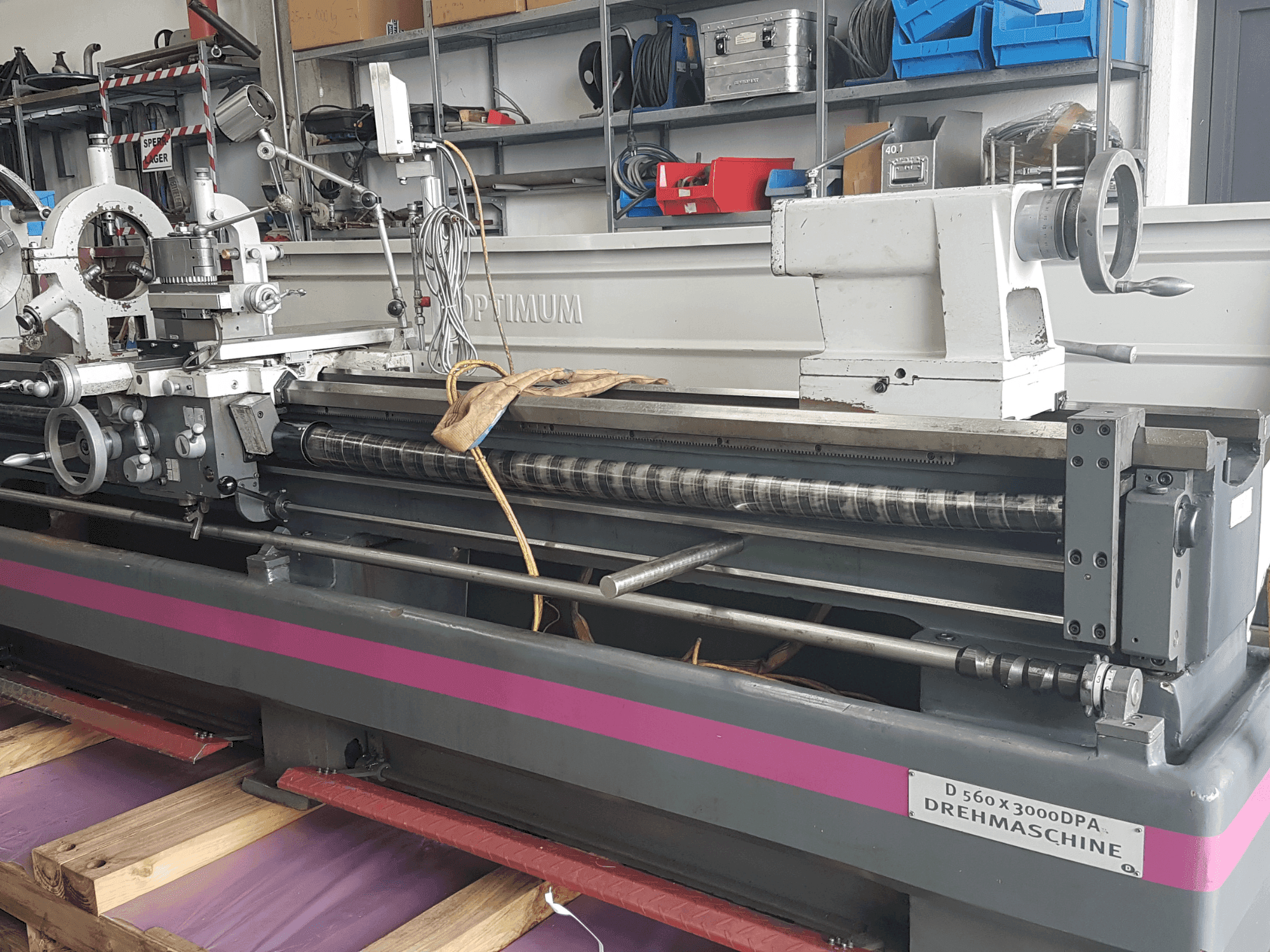

This Optimum D 560x3000 was manufactured in 2011. It features a spindle bore of 80 mm, a swing diameter over bed of 560 mm, and a maximum workpiece weight of 600 kg. The machine offers a spindle speed up to 1600 rpm and includes a coolant pump. Ideal for precision turning operations. Contact us for more information.
Overview
- brand: Optimum
- year: 2011
- MODEL: D 560x3000
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
Technical Information - Optimum D 560x3000
Dimensions
- Machine Depth: 4400 mm
- Machine Height: 1430 mm
- Machine Weight: 3920 kg
Technical Specification
- Spindle Speed: 1600 RPM
Additional Information
Additional equipment
- Lead Screw Thread Pitch: 6mm
- Longitudinal Feed [mm/rev] in the Range: 0.059 - 1.646
- Cross Feed [mm/rev] in the Range: 0.020 - 0.573
- Metric Pitch [mm/rev] in the Range: 0.2 - 14
- Inch Pitch [Threads/Inch] in the Range: 112 - 2
- Modular Threads in the Range: 0.1 - 7
- Diametrical Threads (ISO 678) in the Range: 4 - 112
Machine Benefits
Technical Machine Benefits
- Top slide adjustment range: +/- 90
- Top slide travel (mm): 130
- Cross slide travel (mm): 326
- Center height (mm): 280 // center width (mm): 3010 // bed width (mm): 350
- Swing diameter in bed bridge (mm): 788
- Passage of stationary steady rest (mm): 19-165
- Passage of follower steady rest (mm): 16-95
- Special stationary steady rest (not included) (mm): 140-270
- Turning length in bed bridge (mm): 200
- Spindle mount: camlock asa d 1-8
Extra Information
Tail Stock Tailstock - Transverse Adjustment (mm): +-13 Tools Maximum Tool Holder Size for Turning Tools in Quadruple Tool Holder (mm): 25x25 Media Total Connected Load: 3 x 400V / 8 kW ~ 50 Hz Spindle Motor Drive Power: 3 x 400V / 7.5 kW ~ 50 Hz Coolant Pump: 3 x 400V / 0.1 kW ~ 50 Hz Machine Lighting: 0.1 kW Control Voltage: 24 V / 160 VA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
