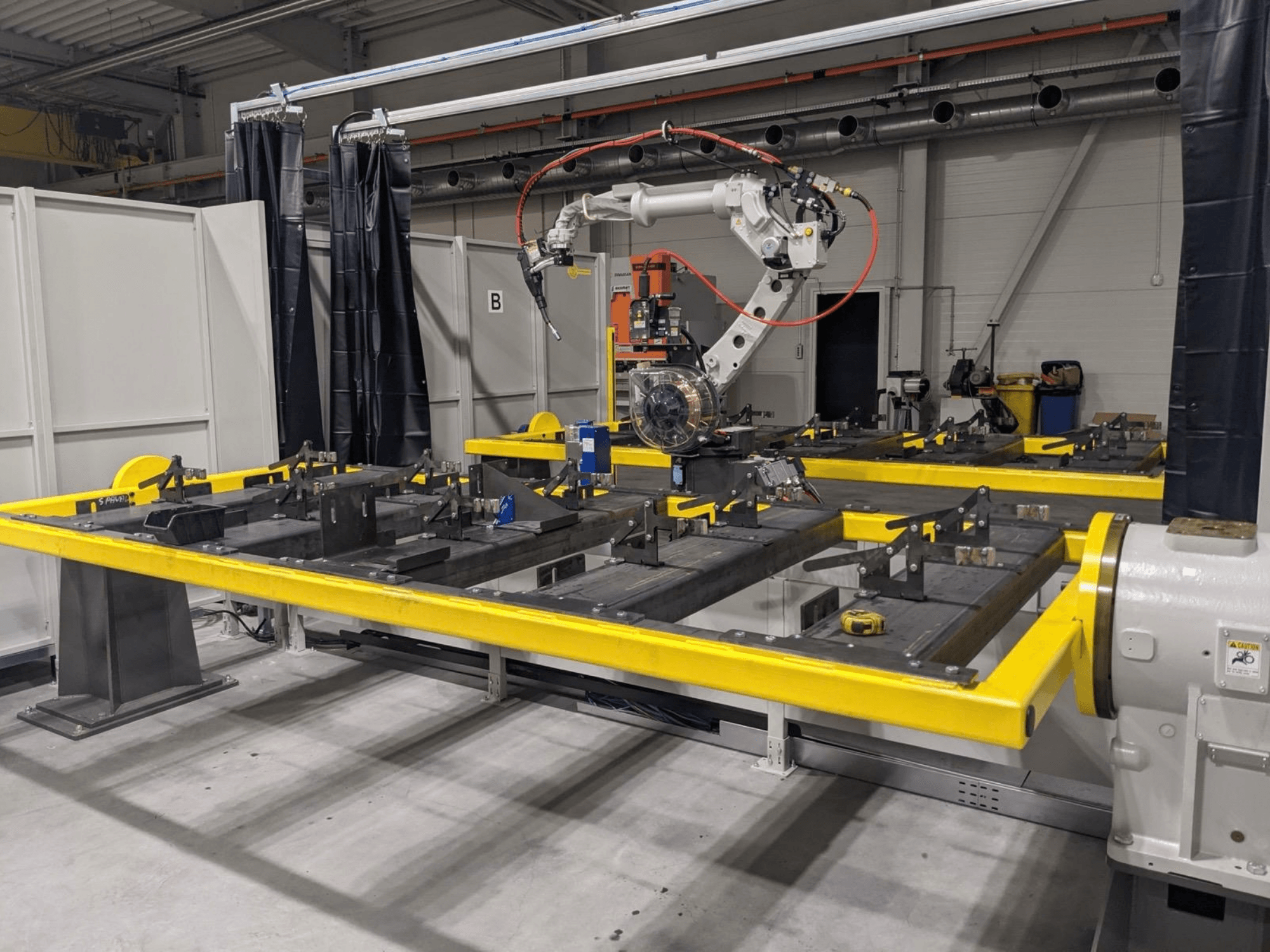

PANASONIC - TAWERS TM-2000WG3 Super Active WirePL-ROB-PAN-2021-00001

• Welding power source: 350 A

• Welding processes: SP-MAG / Pulse MAG (MIG optional; TIG DC optional)

• Repeatability: ±0.10 mm or better

• Maximum robot rapid movement: up to 180 m/min

• Motion ranges: base ±170°; upper arm -90° to +165°; forearm -80° to +210°; wrist rotation ±270°

• Maximum axis speeds: base 195°/s; upper arm 197°/s; forearm 205°/s; wrist up to 629°/s

• Wire feeding capability: Super Active Wire

• Safety system: CE compliant

Additional equipment

• Güdel TMF-1 linear track (2,000 mm travel; repeatability ±0.02 mm) with drive, servo control and track structure

• 2 × Panasonic servo-controlled rotary positioners + positioner servo control system

• 2 × workpiece frames (approx. 3,500 × 1,500 mm) providing 2 welding/loading stations

• Super Active Wire welding torch

• Wire Booster system

• Wire spool stand / wire cassette

• Torch cooling unit

• Torch cleaning station

• Touch Sensor

• Arc Sensor

• Power transformer

• Robot cable package

• Robot/positioner support structures

• 2 × safety light curtains and complete cell guarding

• Control and integration system

• Robot controller / control cabinet
