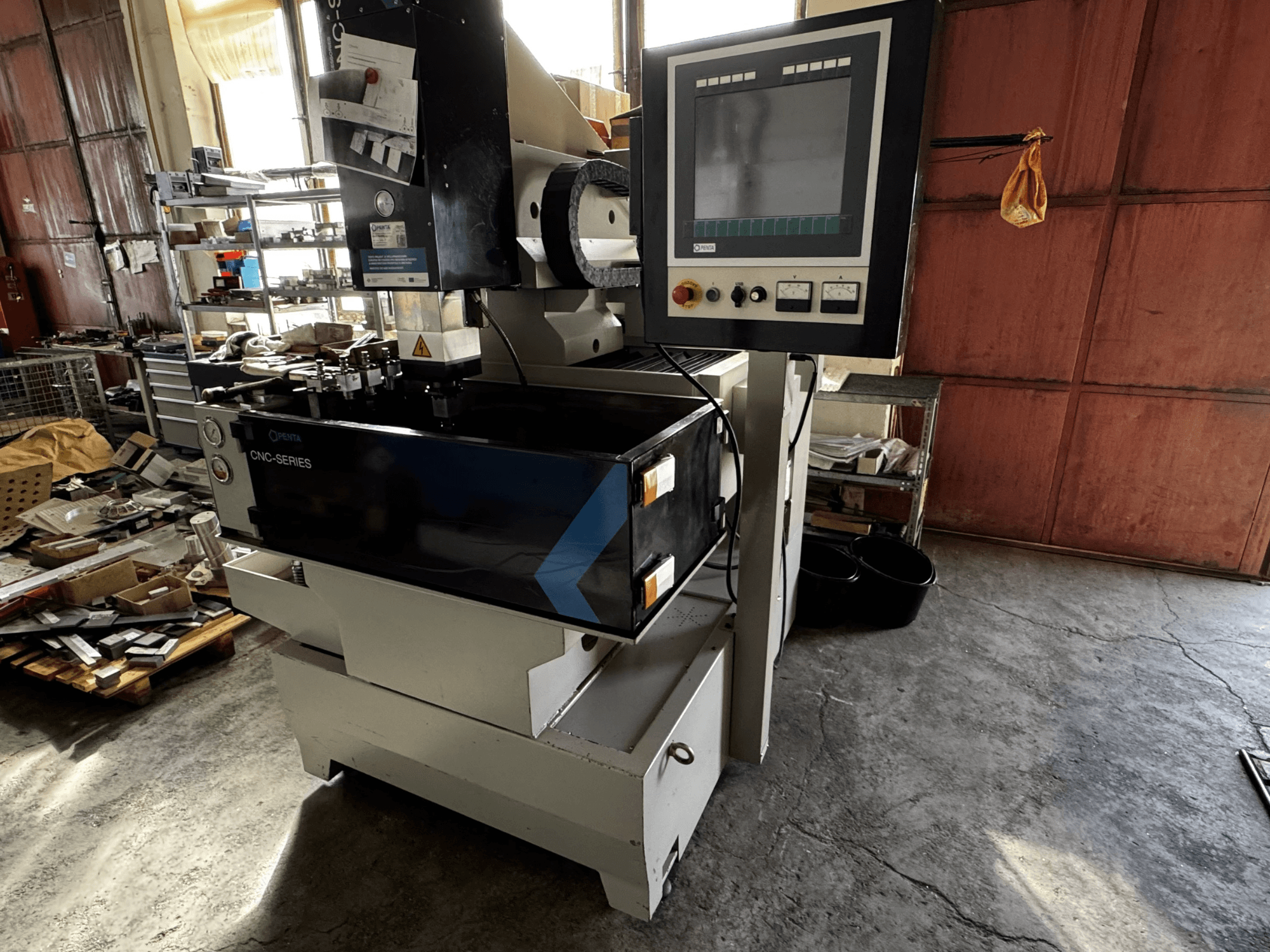

PENTA 433GS CNC die-sinking EDM machine, front view. Displays control panel, electrode holder, and metallic work table.
PENTA 433GS CNC die-sinking EDM machine, front view. Displays control panel, electrode holder, and metallic work table.

PENTA - 433GS CNCCZ-EDM-PEN-2013-00001

32,500 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 4-axis PENTA 433GS CNC was manufactured in 2013. It features a working area of 1000 × 550 × 320 mm and a maximum workpiece weight of 700 kg. The machine is equipped with an automatic electrode changer and a controlled rotary axis (C-axis). If you are looking to get high-quality die-sinking capabilities, consider the PENTA 433GS CNC die-sinking EDM machine we have for sale. Contact us for further details.

Overview

  • brand: PENTA
  • year: 2013
  • MODEL: 433GS CNC
  • application type: EDM
  • Location: Czech Republic
  • machine type: Die-Sinking EDM Machine

Technical Information - PENTA 433GS CNC

Movement

  • Number of Axes: 4
  • X-axis Travel: 400 mm
  • Y-axis Travel: 300 mm
  • Z-axis Travel: 300 mm

Additional Information

  • Working area X×Y×Z: 1000 × 550 × 320

  • Clamping table: 700 × 350

  • Distance table–quill (min–max): 130–430 mm

  • Max. workpiece weight: 700 kg

Additional equipment

  • Automatic electrode changer

  • Controlled rotary axis (C-axis)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
