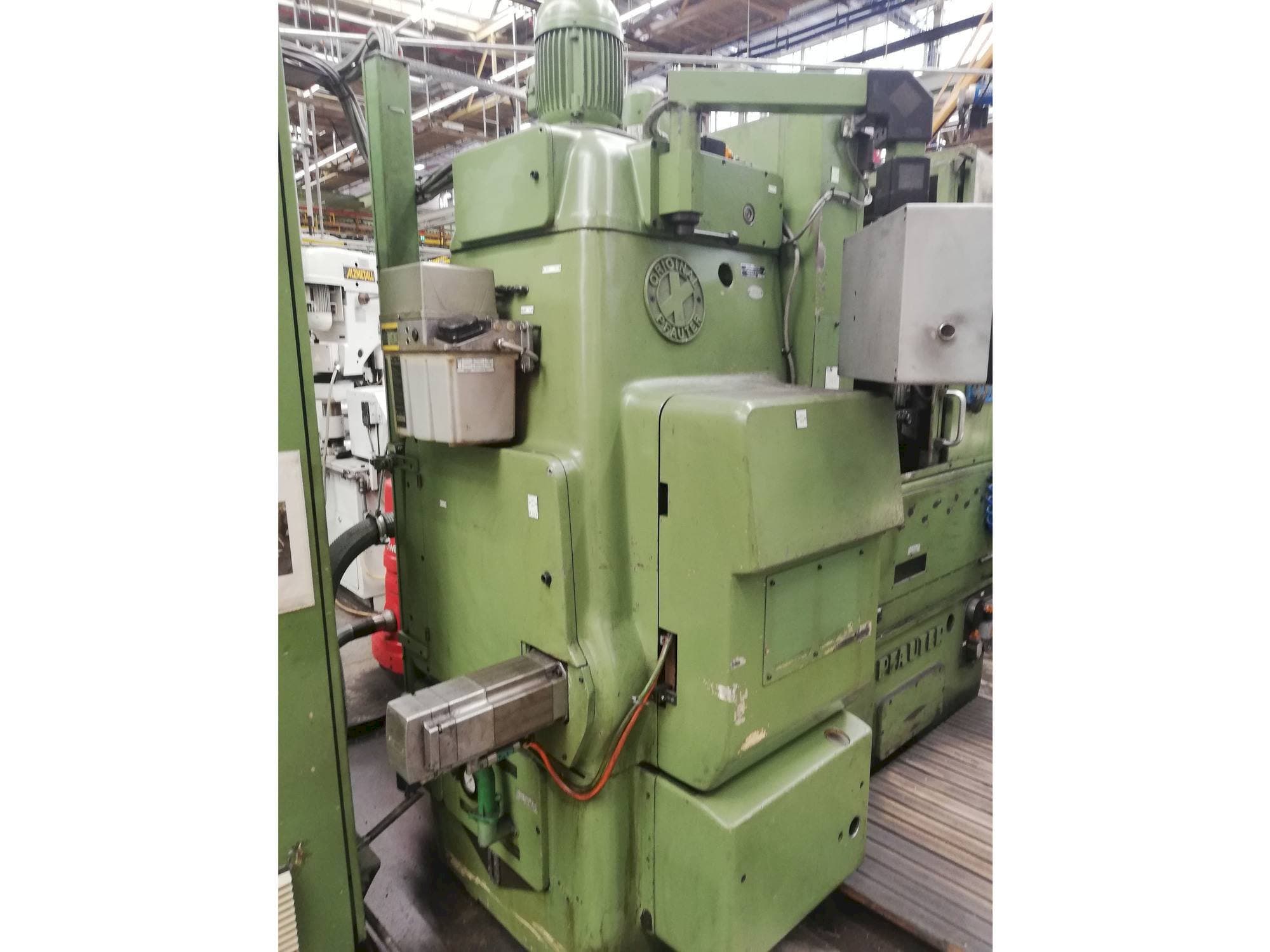

Pfauter - P400DE-GEA-PFA-2007-00001

Machine Benefits

Qualitative Machine Benefits

• Ec declaration of conformity
• New control panel, control structure with s7 plc
• Largest distance from clamping table to counterholder to center of milling spindle 638/470mm
• Milling spindle; taper 1 : 5 largest diameter milling cutter 160mm
• Largest width diameter 160mm
• Distance from axis to milling spindle and clamping spindle without counterholder graste: 300mm / smallest 30mm
• Adjustability of the milling spindle: by itself 100mm / by hand 120mm
• Milling slide: swiveling up to 240 degrees
• Table: diameter cross rings 400mm bore diameter 80mm
• Spherical milling device, step-shifting device

Technical Machine Benefits

• Two servo motors for axial (z-axis) and table drive (c-axis)
• Status light column, brake module make pold for cutter drive
• Cone: moise 5
• Connection for chip extraction, pold braking device
• Cd's with: complete electrical diagrams, cd's with: docu , s7, simo-drive, sinocom
• Full working chip guard with filet suction base 1840x730mm
• Work arbor 20h6 25h6, milling arbor 27 32 diameter j 5
• Working range largest part to be milled module 6mm
• Largest diameter to be machined with/without counterholder 400mm
• Largest milling width: spur gears 300mm

Extra Information

Especially suitable for: Straight and helical gears, Worm gears
