- ➤ Used POSmill E1100 For Sale | gindumac.com

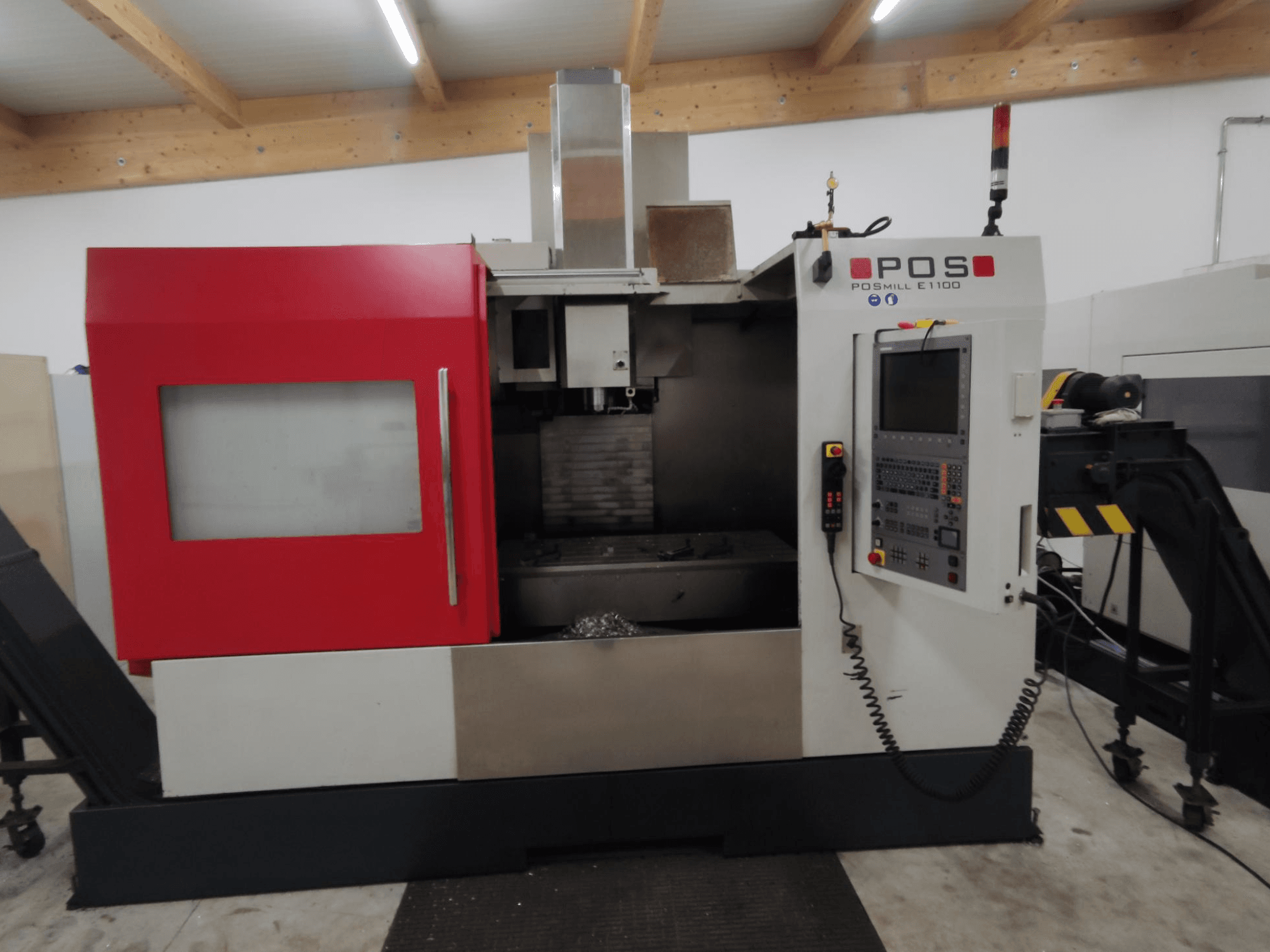

This 3-axis POSmill E1100 was manufactured in 2013 and features a robust iTNC 530 control unit by HEIDENHAIN. It boasts a spindle speed of 10,000 RPM and a motor power of 25 kW. The machine offers X, Y, Z travels of 1100 mm, 600 mm, and 510 mm respectively, and supports a table load of 1000 kg. Consider the opportunity to buy this POSmill E1100 vertical machining centre. Contact us for more information about this machine.
Overview
- brand: POSmill
- year: 2013
- MODEL: E1100
- production hours: 70
- application type: Milling
- Location: Austria
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - POSmill E1100
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Height: 3800 mm
- Machine Length: 4300 mm
- Machine Weight: 8500 kg
- Table Load: 1000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1100 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Spindle Power: 25 kW
- Spindle Speed: 10000 RPM
Additional Information
Worktable: 1300 x 600 mm; spindle-to-table distance 120–630 mm
Tool magazine: 40 slots; max tool length 300 mm; tool holder ISO 40; tool changer TC40
Measurement: Linear measuring system on X, Y, Z
Safety/operation: Protective enclosure; Plexiglas hinged band; tool change door locking operation; tool change protection
Dimensions (with chip conveyor and coolant tank): 4.30 m x 3.80 m x approx. 3.80 m
Additional equipment
Chip conveyor
Lehmann rotary table S500 Edition 4
Internal coolant supply (20 bar) with belt filtration system
Mechanical coolant separator
Wash-down system and water gun
Workpiece measurement system 25 HDR
Lamella belt clamping device
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
