Quick-Tech I-60U Lathe

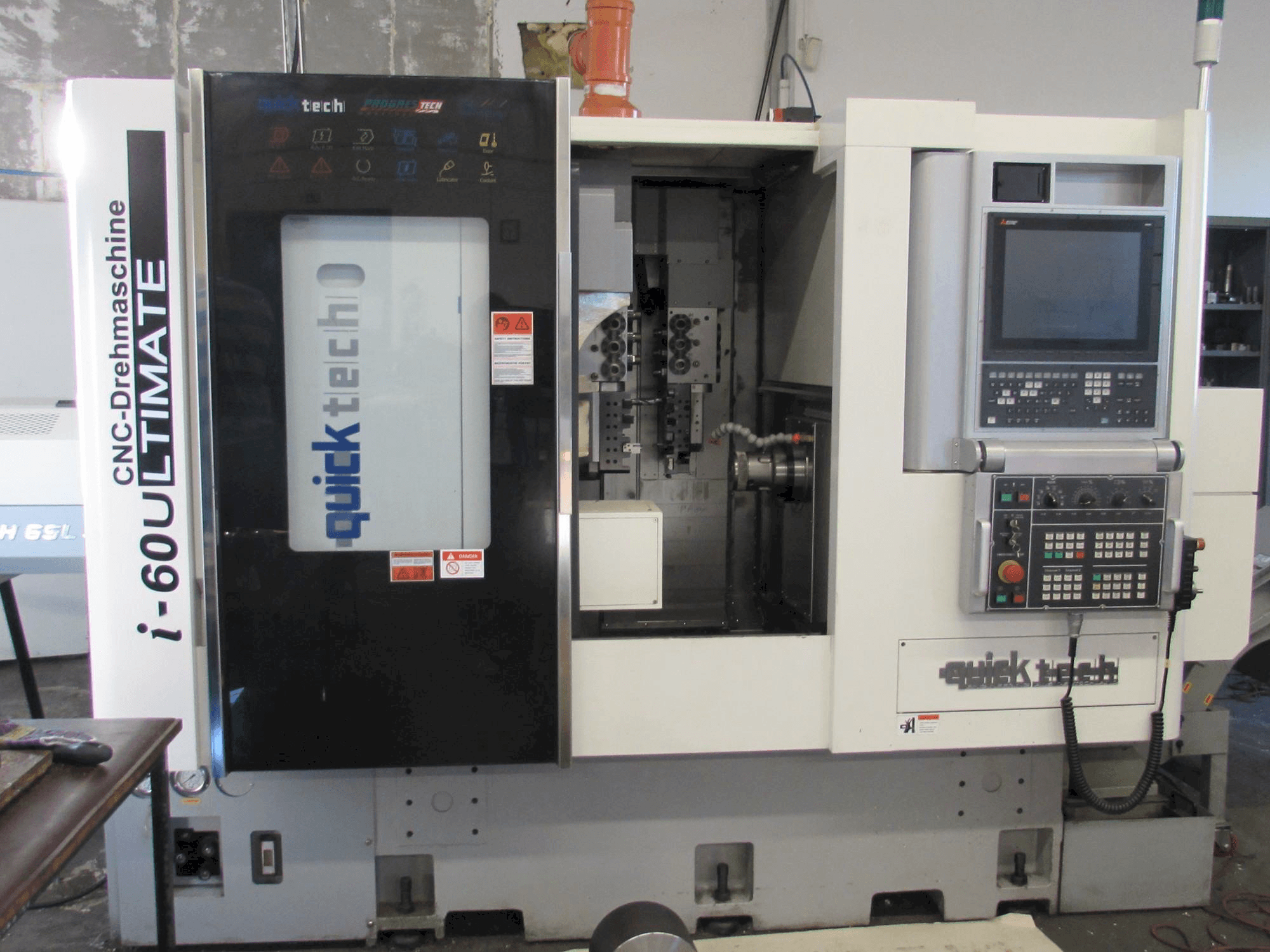

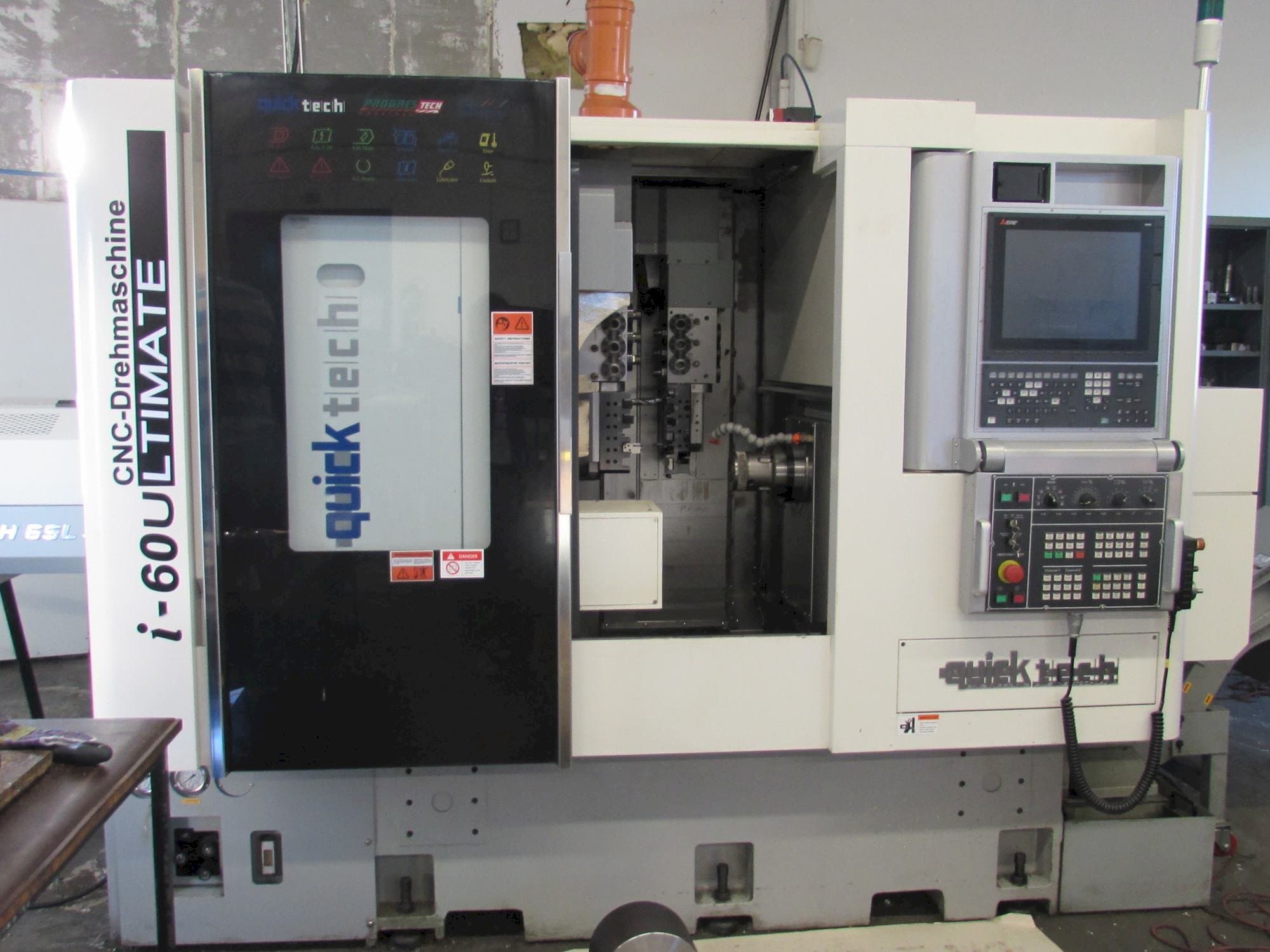

This Quick-Tech I-60U Lathe was built in 2017 in Taiwan. It has been operative for only 2346 hours. It is operated through a Mitsubishi M800 control unit. This machine incorporates 2 spindles and can operate with a spindle speed up to 5000 rpm. It includes a bar feeder Fedek DH65L (1,5 m) and an automatic lubrication.

Overview

brand: Quick-Tech
year: 2017
MODEL: I-60U
production hours: 2346
application type: Turning
Location: Czech Republic
machine type: Lathe
availability: Sold
control unit brand: Mitsubishi
GINDUMAC ID: CZ-TUR-QUI-2017-00002

Technical Information

General Data

Measurements width: 2900 mm
Measurements depth: 1900 mm
Measurements height: 1900 mm
Machine weight: 5800 kg

Control Unit

Brand: Mitsubishi
Model: M800
CNC main language: Czech
CNC language customizable: Yes

Main drive

Number of spindles: 2
Spindle speed range: 5000-4000 rpm 1/MIN

Movement

X-AXIS Movement: 150 mm
Y-AXIS Movement: 385 mm
Z-AXIS Movement: 250 mm

Turret

Number of turrets: 2

Tools

Slots in storage: 25

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar feeder fedek dh65l (1,5 m)
- - Set of tool holders (upon request)
- - Main spindle (a2-6) max. Turning length 250 mm
- - Main spindle power 11 kw, 5000 rpm, bore 62 mm, bar diameter 60 mm
- - Subspindle (a2-6) max. Turning length 100 mm
- - Subspindle power 5. 5 kw, 4000 rpm, bar diameter 42 mm
- - X1, y1, z1 stroke: 450, 400, 300 mm
- - Main tool head 6 outer, 5 inner positions (20 x 20 mm clamping), live tools 6 (3 radial, 3 axial)
- - 2nd tool head 5 outer, 9 inner positions (20 x 20 mm clamping), live tools 6 (3 radial, 3 axial)
- - C axis 0. 001 degrees (main spindle, subspindle)
Qualitative Machine Benefits:
- - Automatic lubrication
- - Machine like new

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
