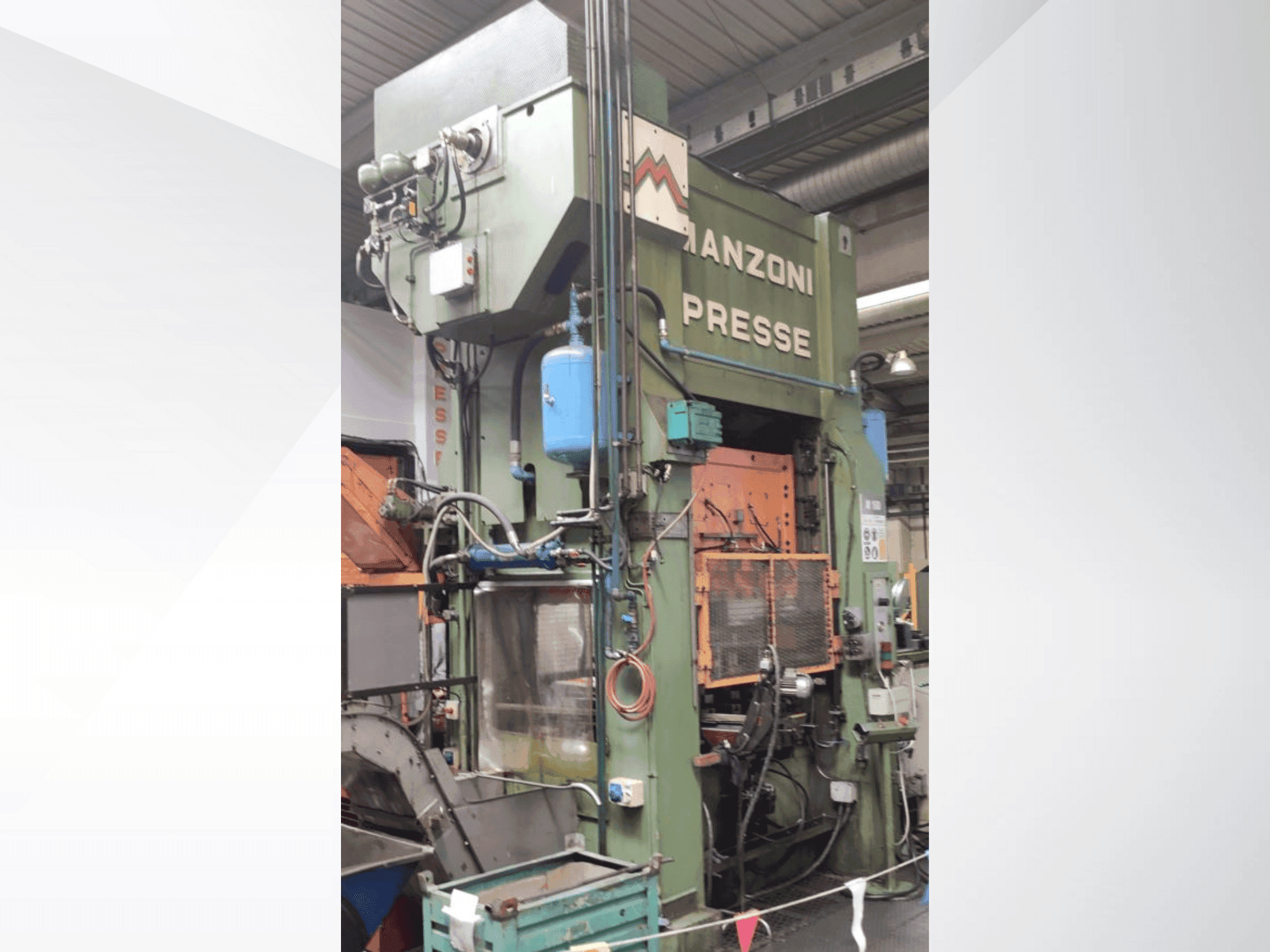

This stamping machine was manufactured in 1992. It features a robust Eccentric H-frame, monoblock design with a press force of 1600 kN and a fixed stroke of 160 mm. The machine includes a magnetic conveyor for scraps, a quick die cart system, and a millutensil oiling system. Ideal for high-quality stamping capabilities, consider the RAVNE PRESSES Manzoni 160 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: RAVNE PRESSES
- year: 1992
- MODEL: Manzoni 160
- application type: Stamping
- Location: Slovenia
- machine type: Stamping Machine
- availability: Immediately
Technical Information - RAVNE PRESSES Manzoni 160
Main drive
- Pressing force: 1600 kn
- Maximum sheet thickness: 4 mm
- Main motor power: 48.5 kW
- Stroke: 160 mm
Additional Equipment
- - Complete press line included
- - Magnetic conveyor for scraps
- - Quick die cart system
- - Scissors for sheet cutting
- - Millutensil oiling system
- - Documentation and drawings are included
Additional Information
- Technical Machine Benefits:
- - Stroke rate: 30 – 120 /min
- - Slide adjustment: 200 mm
- - Slide dimensions: 1250 x 1000 mm
- - Bed dimensions: 1350 x 1000 mm
- - Shut height: 400 – 600 mm
- - Side opening dimension: 800 mm
- - Front opening dimension: 1250 mm
- - Press force: 1600 kn
- - Press design: eccentric h-frame, monoblock
- - Number of pressure points: 2
- Qualitative Machine Benefits:
- - Uncoiling speed: 2 - 25 m/min
- - Feeding speed: 2-96 m/min
- - The stamping line is disassembled.
- - The stamping line is disassembled.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
Products related to RAVNE PRESSES Manzoni 160
F5-20 SB/AM
Finn-Power - CNC Punching Machine
Manzoni 315
RAVNE PRESSES - CNC Punching Machine
Nova C630kN
BEUTLER - Mechanical Stamping Press
Sold

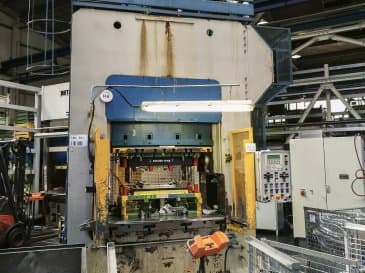

LKT 250
SMERAL - Stamping Machine
Sold

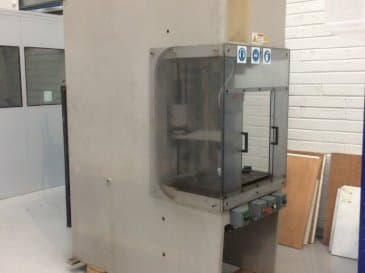

FN50-30H-0592E
ABEX Dension - Stamping Machine
Sold
NC 1-1500
AIDA - Stamping Machine
Sold

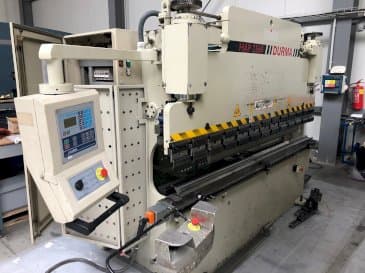

HAP 2560
