Ray Feng RC32

Photo Gallery

Ray Feng - RC32NL-TUR-RAY-2018-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

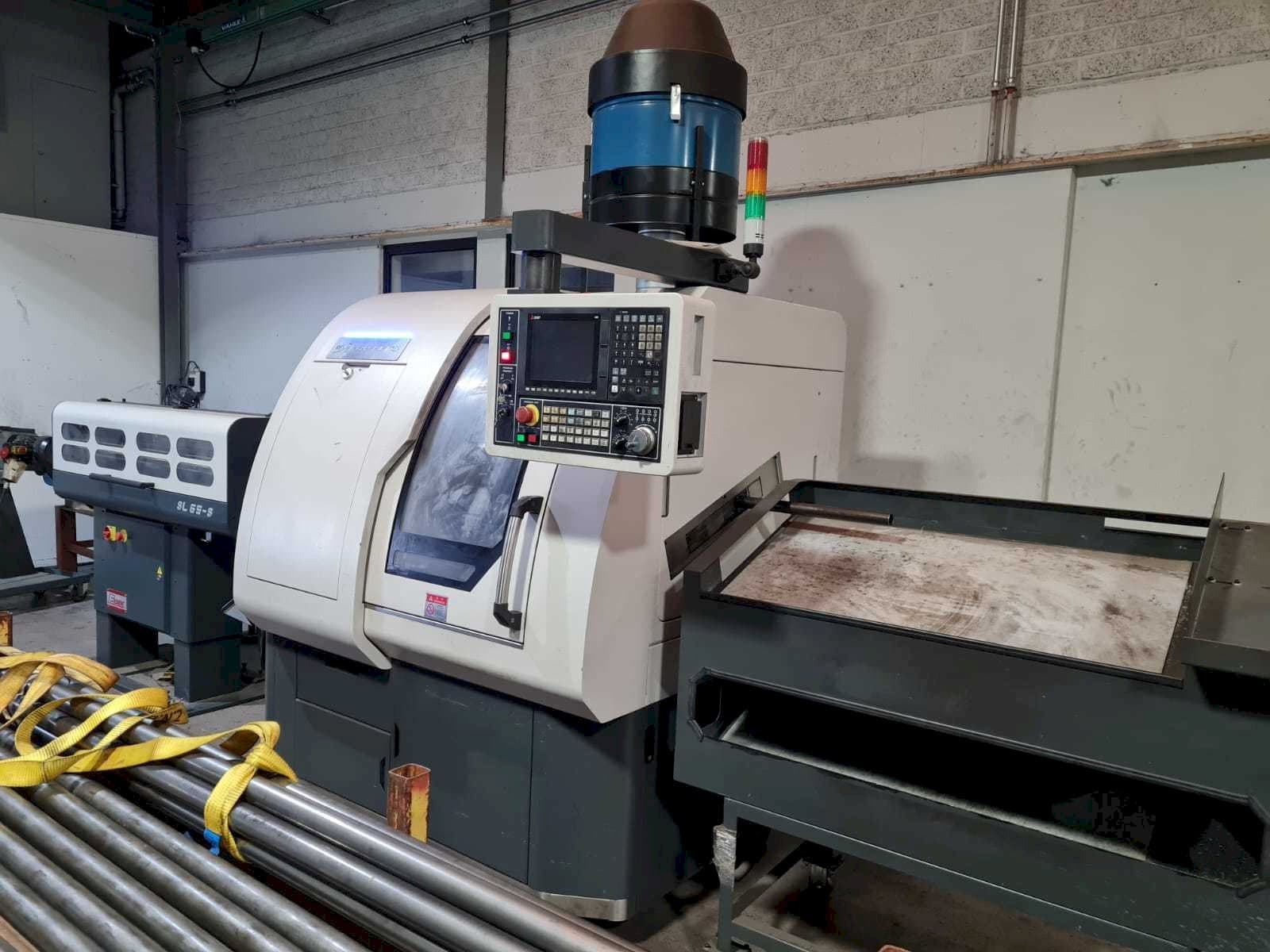

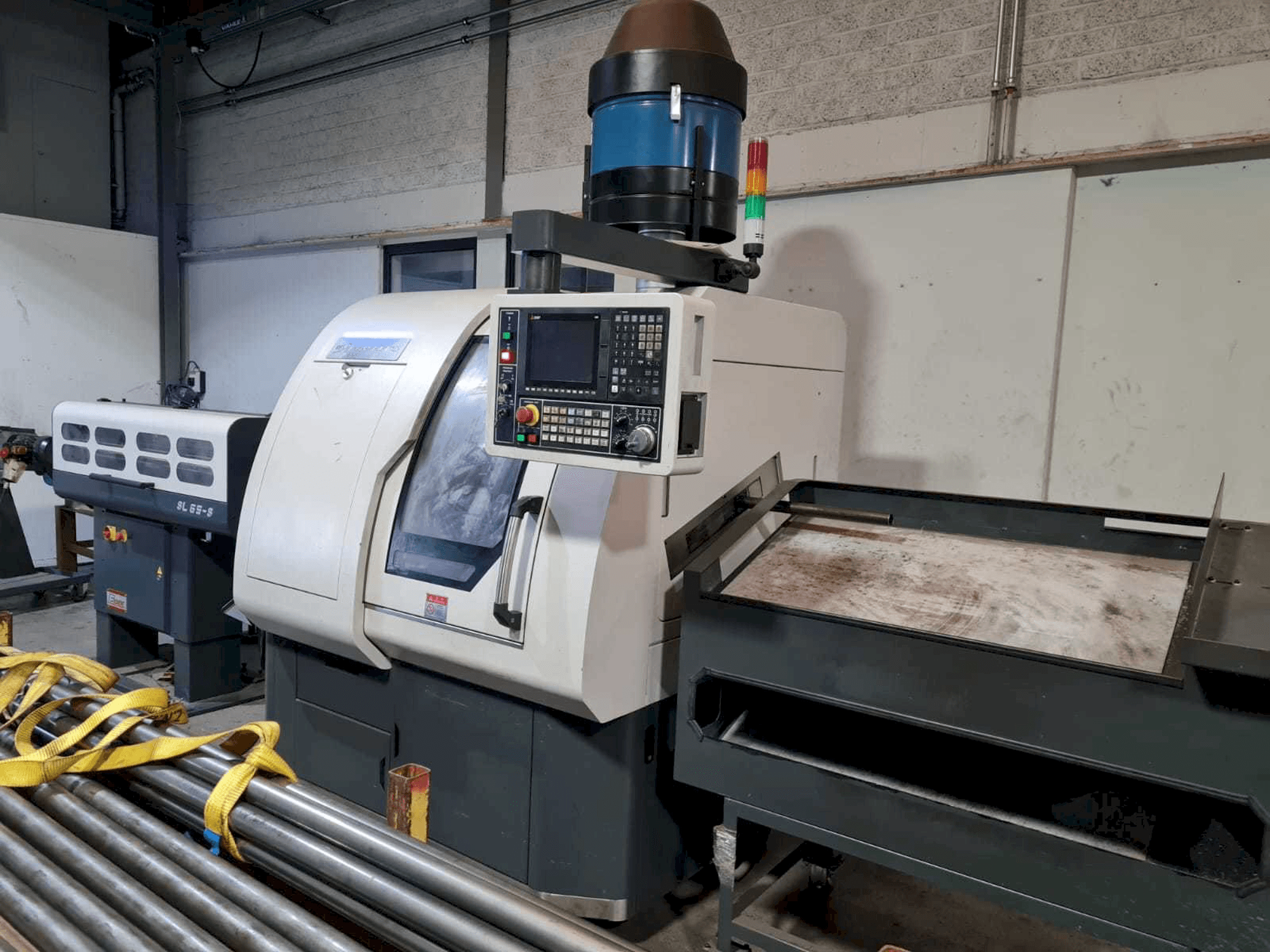

Ray Feng RC32 Lathe machine

This Ray Feng RC32 Lathe machine was manufactured in the year 2018. This can work with a spindle speed range up to 6000 rpm and a spindle speed of 5 kW. Also counts with a max. turning diameter of 33 mm and a max. turning length of 100 mm. Includes accesories.

Overview

brand: Ray Feng
year: 2018
MODEL: RC32
application type: Turning
Location: Netherlands
machine type: Swiss Type Turning Machine
availability: Sold

Technical Information - Ray Feng RC32

General Data

Measurements width: 2070 mm
Measurements depth: 1565 mm
Measurements height: 1835 mm
Machine weight: 1800 kg

Main drive

Spindle speed range: 6000 1/MIN
Spindle motor power: 5 Kw

Additional Equipment

- Collet holder (1 collet) Foot switch for collet Machine lighting
- 4 drill holders
- 2 rotary holders
- 1 stop bar
- Lubricate installation
- User manual
- Fedex LNS bar feeder type SL 65S (servo load)
- Processed Pipe Collection Device (Right of Machine)
- CE Compliance
- Transformer 10Kva

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning diameter: 33 mm
- - Max. Turning length: 100 mm
- - Max. Across the transverse: 80 mm
- - X-axis displacement: 340 mm
- - Z-axis displacement: 150 mm
- - Rapid traverse displacement: 16 m/min
- - Max. Spindle passage: 32 mm
- - X/z engine: 0. 75 kw
- - Smallest date to be entered: 0. 001 mm
- - Cooling pump: 0. 56 hp
Qualitative Machine Benefits:
- - Workpiece collection device and mist cooling
- - Outside turning tool size: 16x16mm
- - Inside turning tool size: c20-er16

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
