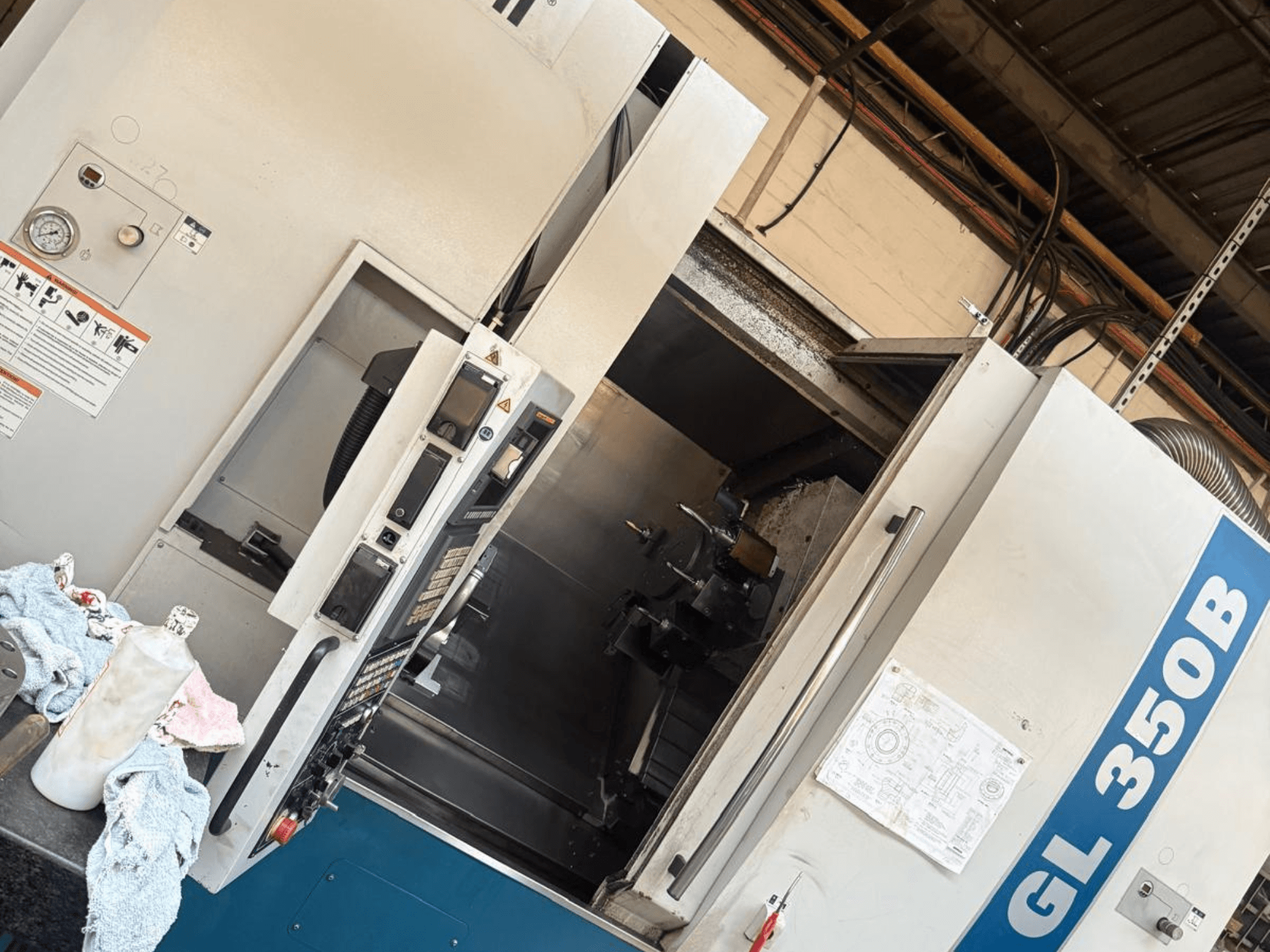

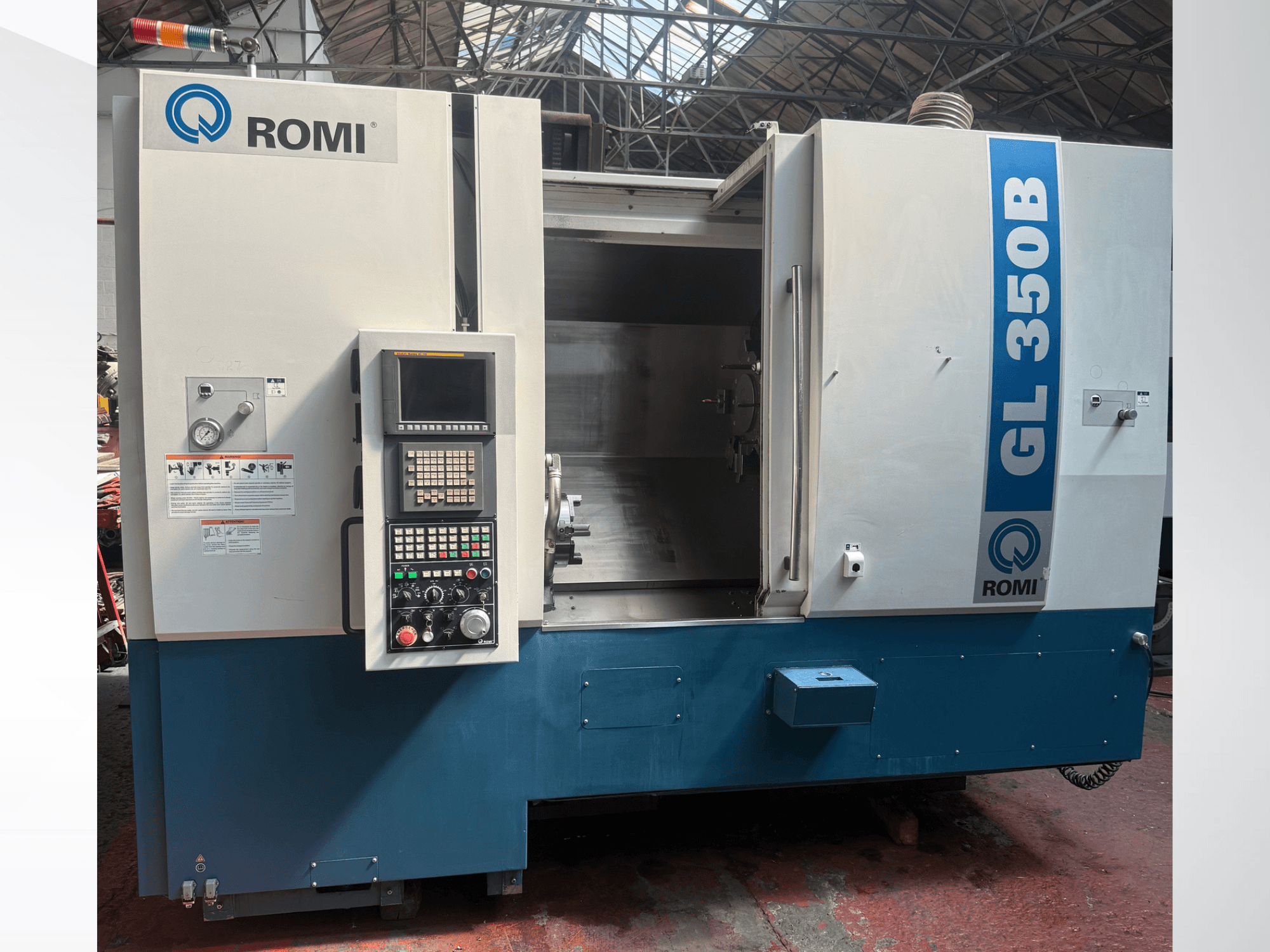

This 6-axis Romi GL 350B CNC Horizontal Turn-Mill Center was manufactured in 2014. It features a maximum workpiece diameter of 350 mm and a main spindle speed of 4,000 rpm. The machine is equipped with a counter spindle with a speed range of 6 – 6,000 rpm, driven tools, Y-axis capability, and a 12-position BMT-65 turret. The machine configuration includes controlled axes X, Y, Z, A, B and C, allowing complex turn-mill operations. If you are looking to achieve high-quality turning and milling capabilities, consider the Romi GL 350B machine we have for sale. Contact us for further details.
Overview
- brand: Romi
- year: 2014
- MODEL: GL 350B
- application type: Turning
- Location: United Kingdom
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Romi GL 350B
Control Unit
- Control Brand: FANUC
- Control Model: 0i-TD
Dimensions
- Machine Weight: 9600 kg
Movement
- Number of Axes: 6
- X-axis Travel: 243 mm
- Y-axis Travel: 50 mm
- Z-axis Travel: 740 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Speed: 4000 RPM
Additional Information
Axes:
Sub-spindle travel (B-axis): 830 mm
Capacity:
Max. workpiece diameter: 350 mm
Max. bar passage: Ø 64 mm
Main spindle:
Spindle nose: A2-8
Counter spindle:
Included
Speed: 6–6,000 rpm
Spindle nose: A2-5
Turret:
12 positions
Tool attachment/interface: BMT-65
Dimensions :
Machine depth: 2,080 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
