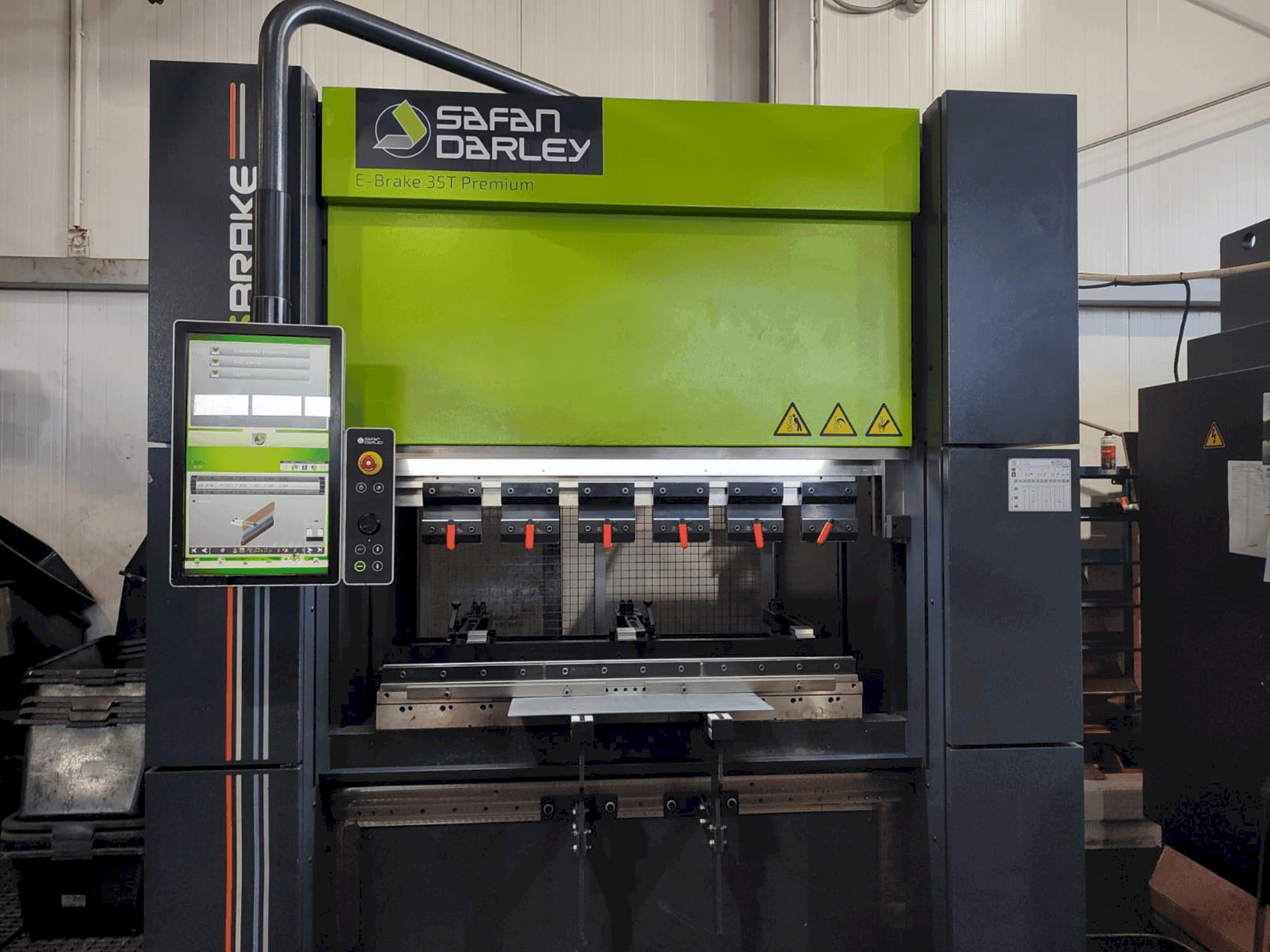

SAFAN - E-Brake Premium 35-1250PL-BEN-SAF-2020-00001

Additional equipment

• Servo-electric drive (no hydraulic system)
• 4 CNC-controlled axes (X, Y1, Y2, R)
• Manually adjustable backgauge axes (Z1, Z2)
• Mechanical punch clamping NSCL and MC Pro
• Mechanical die clamping OB/S-3 with 13.5 × 22 mm groove
• Two movable front supports (300 mm length)

Machine Benefits

Technical Machine Benefits

• Over 30% higher efficiency compared to conventional press brakes
• More than 50% lower energy consumption and reduced co₂ emissions
• Integrated safety system with cnc control (light curtain)
• Compliance with the european ce directive
• Connected power: 11 kw
• Ram stroke: 300 mm
• Daylight opening (q): 590 mm
• Press force: 350 kn (35 tons)

Extra Information

Table Approach Speed of the Upper Beam: 110 mm/s Return Speed of the Upper Beam: 110 mm/s Upper Beam Accuracy: ±0.01 mm Turret Maximum Backgauge Finger Speed: 350 mm/s Maximum Backgauge Reach (X-axis Range): 1000 mm Backgauge Repeatability: ±0.02 mm Backgauge R-Axis Range: 150 mm Backgauge R-Axis Repeatability: ±0.1 mm Backgauge R-Axis Speed: 100 mm/s Options included: AutoPOL software licence for offline programming
