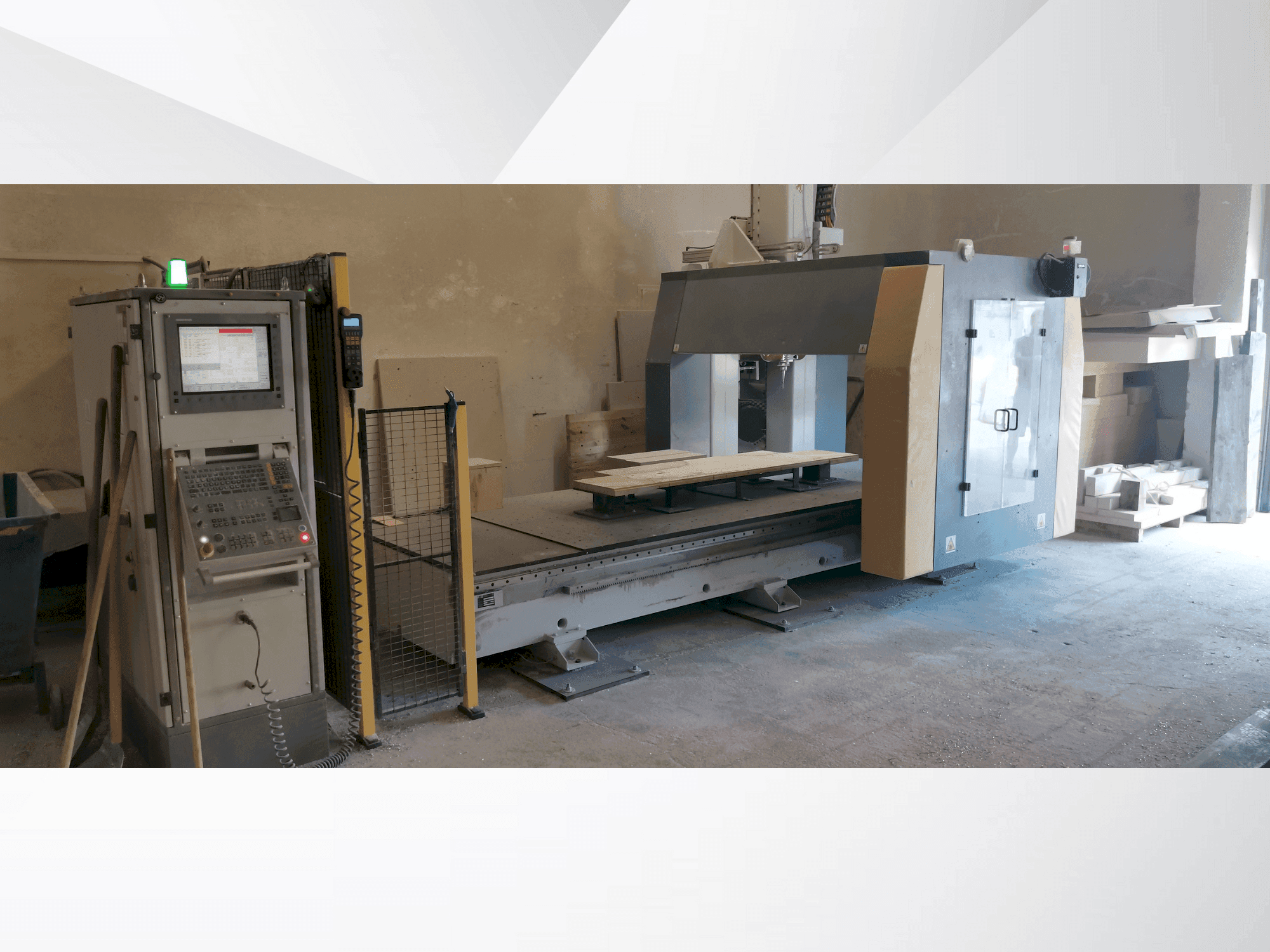

This 5-axis Sahos Dynamic FC 3000 vertical machining center was manufactured in 2011. It features a Heidenhain ITNC 530 control system, a spindle HSD ES 779 10kW HSK F63, and a tool changer with 14 positions added in 2020. The machine has a total of 63323 operating hours and 28535 spindle hours. Ideal for producing wooden models for foundry. For more information about this vertical machining center, please reach out to us.
Overview
- brand: Sahos
- year: 2011
- MODEL: Dynamic FC 3000
- production hours: 28535
- application type: CNC Wood Machining
- Location: Czech Republic
- machine type: CNC Wood Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - Sahos Dynamic FC 3000
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: ITNC 530
Movement
- Number of Axes: 5
- X-axis Travel: 3000 mm
- Y-axis Travel: 1580 mm
- Z-axis Travel: 800 mm
Technical Specification
- Number of Tools: 14
- Spindle Power: 10 kW
Additional Information
Additional equipment
Tool probe for measuring tools TT140
Touch workpiece probe TS 640 (transmitter, receiver)
Electrical cabinet equipped with a digital air conditioning unit
Hand control wheel HR 520
MP 3011S 2-axial fork head with spindle for threading
Mist cooling unit (installed in 2020)
Machine Benefits
Qualitative Machine Benefits
Regularly serviced and in very good technical condition
High precision with tool and workpiece probes
Technical Machine Benefits
Table: cardboard with m10 threads in a grid of 100x100 mm
Large travel ranges for versatile machining operations
Advanced control system with heidenhain itnc 530 for precise operations
Extra Information
Machine still under power
In 2018, the machine was retrofitted:
Addition of the U-axis gantry.
Replacement of the X-axis gearbox.
Replacement of the MP 3011S dual-axis head.
Replacement of the ball nuts and gears of the Y, Z axes.
Replacement of the carriages on the X, U and Y axes.
Replacement of the complete Z-axis relief system with a maintenance-free one.
Replacement of the air conditioning of the switchboard.
In 2019, the following was replaced:
Central lubrication unit.
Spindle cooling unit.
Replacement of the ball nut on the Y axis
Replacement of the electronic door locks.
Replacement of the HR 520 handwheel.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
