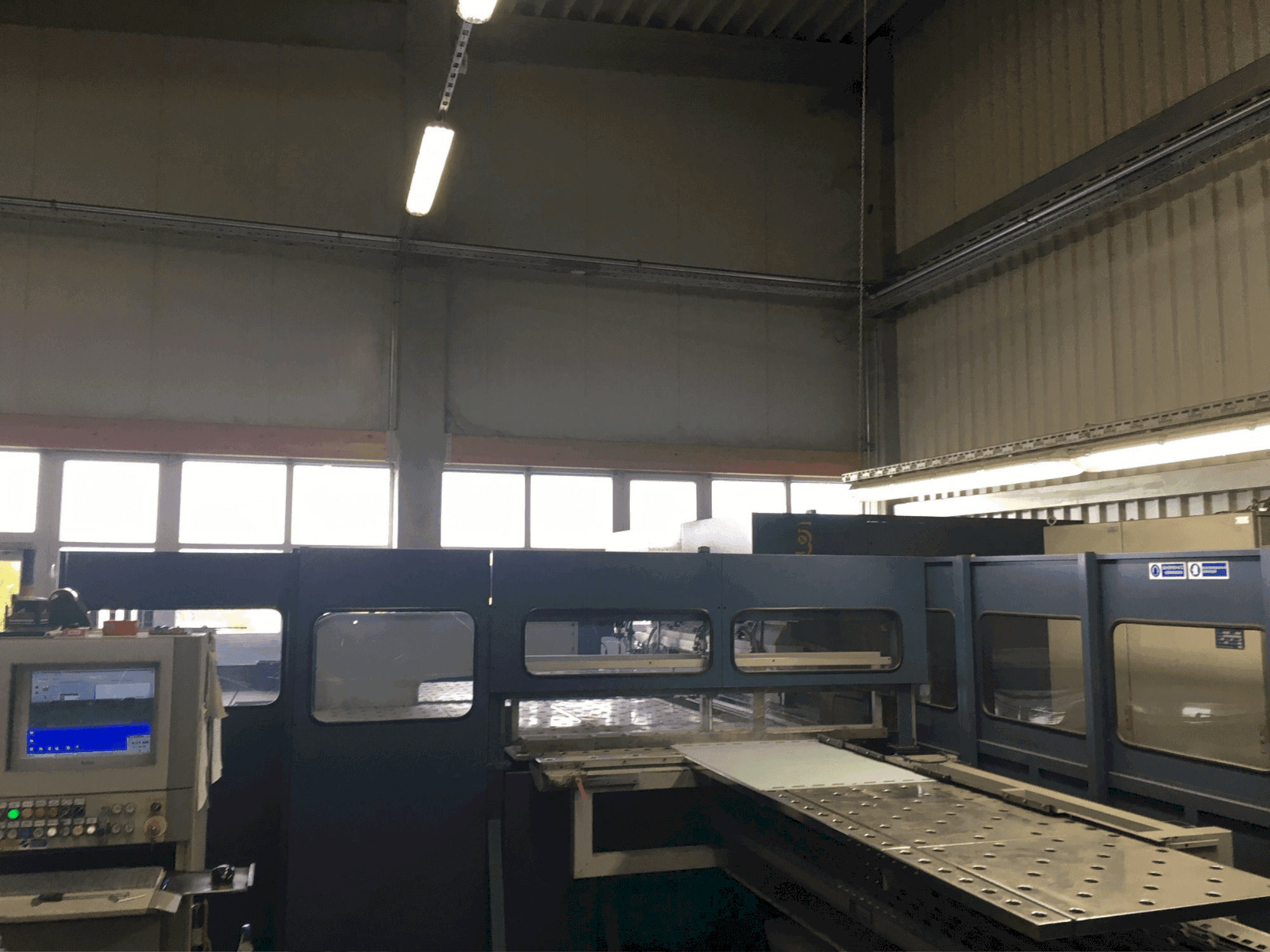

This 3-axis Salvagnini P4-2512 was manufactured in 2000, featuring a max bending length of 2500mm and handling sheet thicknesses up to 3.00mm. It includes quick-clamping segments for enhanced flexibility and precision in sheet metal operations. If you are looking to get high-quality bending capabilities, consider the Salvagnini P4-2512 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: Salvagnini
- year: 2000
- MODEL: P4-2512
- application type: Other Sheet Metal Machinery
- Location: Germany
- machine type: Sheet Metal Machine
Technical Information - Salvagnini P4-2512
Movement
- Number of Axes: 3
Technical Specification
- Bending Length: 2500 mm
Additional Information
Additional equipment
- O+UC1000/2(SO)
- P40FFICE
- Tool set consisting of 13 CLA tool pairs for a total length of 1100 mm
- Includes pairs of CLA tools ranging from 25 mm to 90 mm
- Quick-clamping segments for large-area recesses
Machine Benefits
Technical Machine Benefits
- Max length of the notched blank at the inlet: 2700 mm
- Max width of the notched blank at the inlet: 1500 mm
- Max rotating diagonal of the notched blank: 2700 mm
- Max space for bends above the work table: 127 mm
- Max sheet thickness at tensile strength 410 n/mm²: 2. 00 mm
- Max sheet thickness at tensile strength 600 n/mm²: 1. 25 mm
- Max sheet thickness at tensile strength 265 n/mm²: 3. 00 mm
- Min sheet thickness: 0. 50 mm
Extra Information
Optional: set of clamps 84x 25 mm segments 10x 155-200 mm center segments 2x BLC swivel segments 2x BLX sliding segments 2x tool slides Optional: special clamps with recesses: 12x 150 mm quick-release segments 2x 40 mm quick-release segments 20x 50 mm quick-release segments 2x 75 mm quick-release segments 2x 185 x 195 mm center segments
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
