SANDRETTO 2054-380
SANDRETTO - 2054-380
1998
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- SANDRETTO 2054-380 Injection Moulding Machine

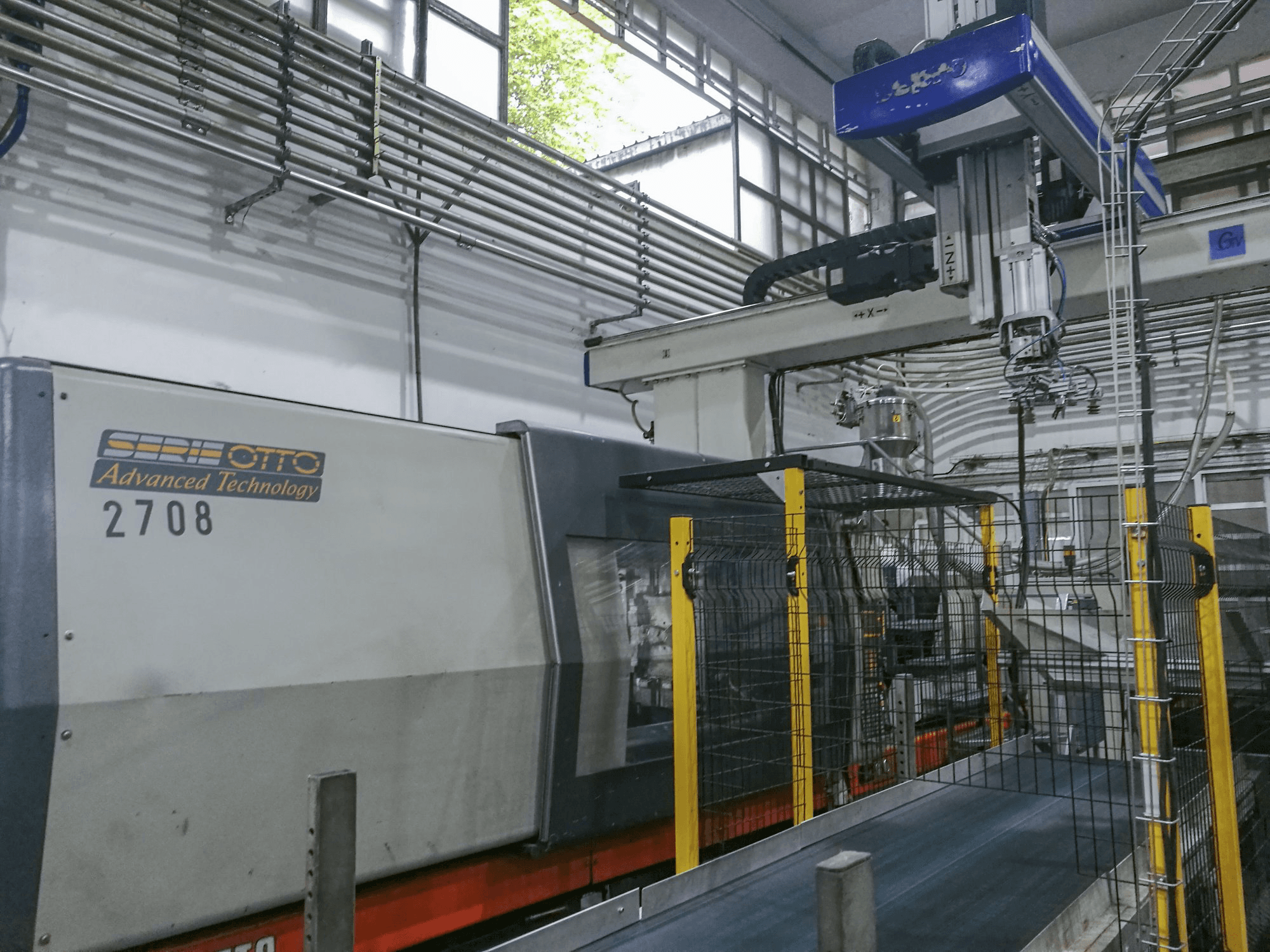

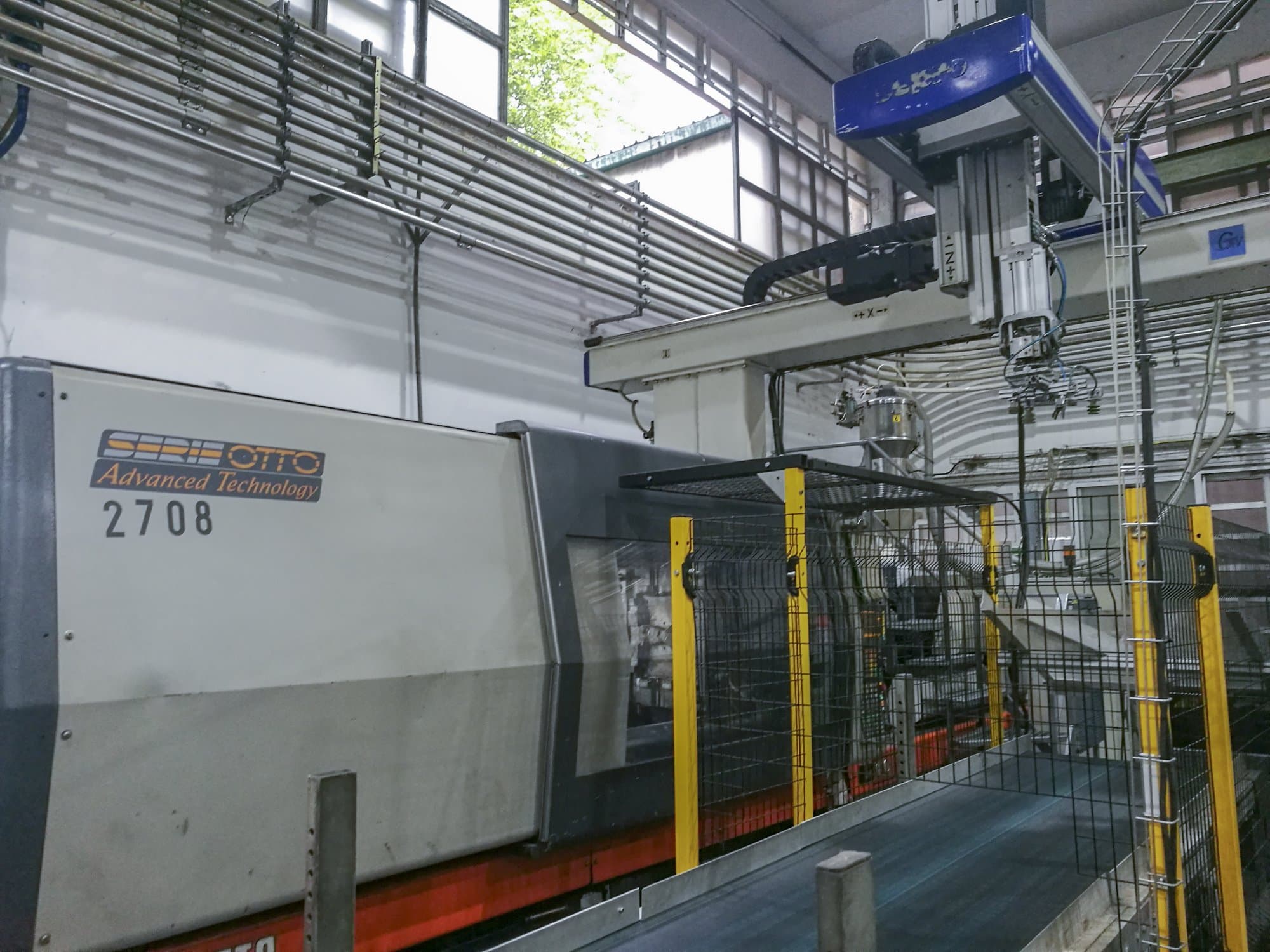

This SANDRETTO 2054-380 Injection Moulding Machine from 1998 was manufactured in Italy and counts a total of approximately 100000 production hours since then. Equipped with a SEF 100 Control unit, this machine has worked with polypropylene during the past, producing plastic molds for the automotive industry. This model stands out due to 380 tons of clamping force and comes with a linear robot Sepro SR 4030 A3 included.
Overview
- brand: SANDRETTO
- year: 1998
- MODEL: 2054-380
- production hours: 100000
- application type: Injection Moulding
- Location: Spain
- machine type: Injection Moulding Machines
- availability: Sold
- control unit brand: SEF
- GINDUMAC ID: ES-INJ-SAN-1998-00001
Technical Information
General Data
- Measurements width: 8810 mm
- Measurements depth: 2420 mm
- Measurements height: 1850 mm
- Machine weight: 16000 kg
Control Unit
- Brand: SEF
- Model: 100
Injection Unit
- Screw diameter: 75 mm
- Stroke volume: 1370 cm³
- Injection pressure: 1500 bar
Clamping unit
- Clamping force: 3725 kN
- Opening stroke: 550 mm
- Ejector stroke: 240 mm
Additional Equipment
- - Robot Sepro SR 4030 A3 Visual
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
