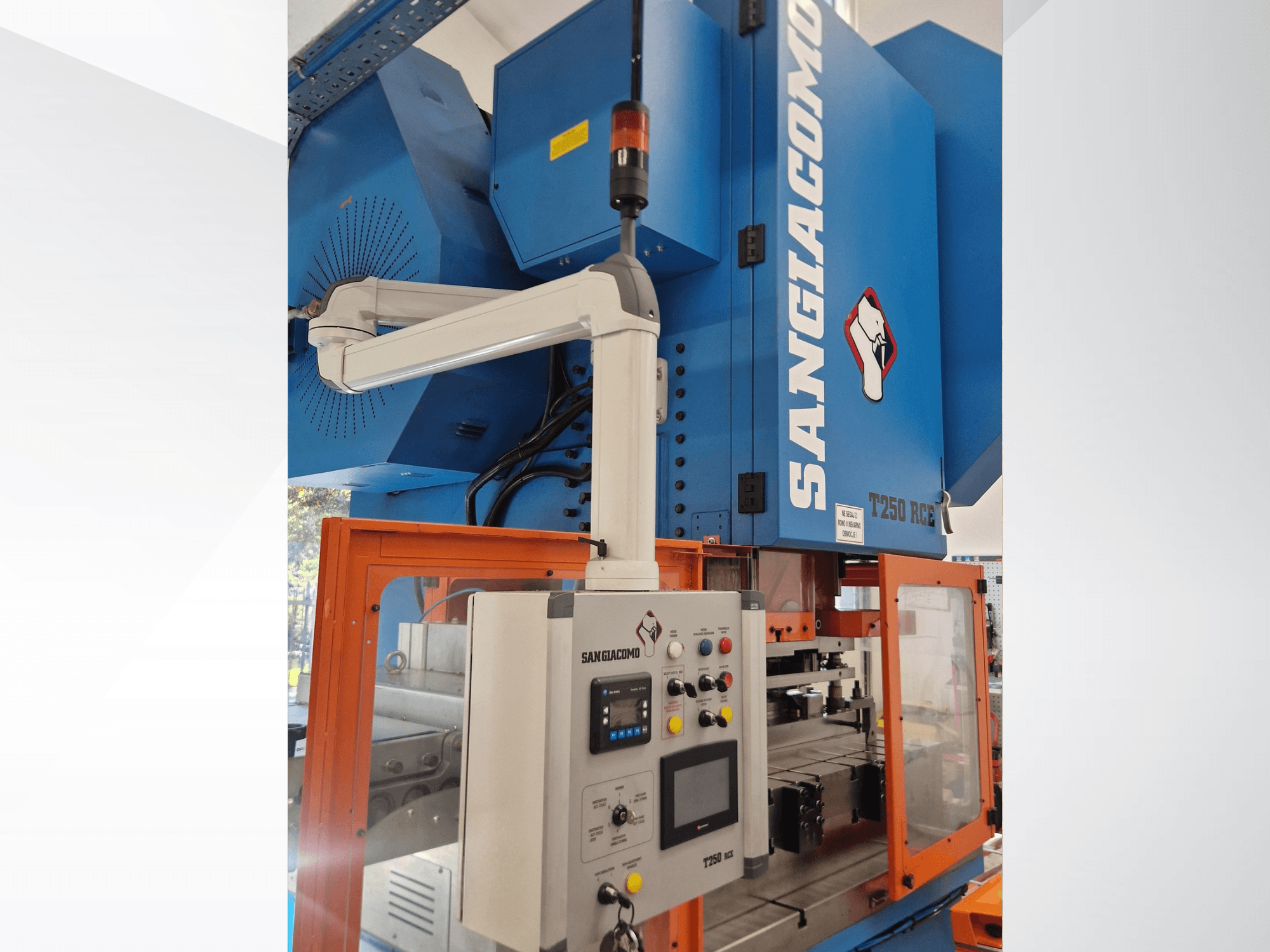

SANGIACOMO T250 RCE mechanical stamping press, front view with control panel and safety guard visible, showcasing operational elements.
SANGIACOMO T250 RCE mechanical stamping press, front view with control panel and safety guard visible, showcasing operational elements.

SANGIACOMO - T250 RCESI-STA-SAN-2008-00001

99,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

Mechanical stamping press manufactured in 2008. This SANGIACOMO T250 RCE features a nominal force of 250 t and an adjustable stroke ranging from 15 to 220 mm. It has a maximum die surface of 800 × 1,450 mm and a closed die maximum height of 662.5 mm. If you are looking to get high-quality stamping capabilities, consider the SANGIACOMO T250 RCE machine we have for sale. Contact us for further details.

Overview

  • brand: SANGIACOMO
  • year: 2008
  • MODEL: T250 RCE
  • application type: Stamping
  • Location: Slovenia
  • machine type: Mechanical Stamping Press

Technical Information - SANGIACOMO T250 RCE

Dimensions

  • Machine Weight: 22000 kg

Technical Specification

  • Max. Stroke: 8 mm
  • Stamping Force: 2500 Kn

Additional Information

  • Adjustable stroke: 15–220 mm

  • Ram adjustment: 100 mm

  • Stop position: T.D.C.

  • Stroke rate: 20 / 42 / 50 strokes/min

  • Maximum insertions per minute: 18

  • Maximum die surface: 800 × 1,450 mm

  • Closed die maximum height: 662.5 mm

  • Closed die minimum height: 460 mm

  • Maximum upper die weight: 300 kg

  • Flywheel speed: 176 / 370 / 441 rpm

  • Stop time: 206 ms

  • Safety distance at 1.6 m/s: 330 mm

  • Total installed power: 22.37 kW

  • Supply voltage: 400 V

  • Auxiliary circuit voltage: 24 V

  • Required working air pressure: 5.5–6 bar

  • CE marked: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
