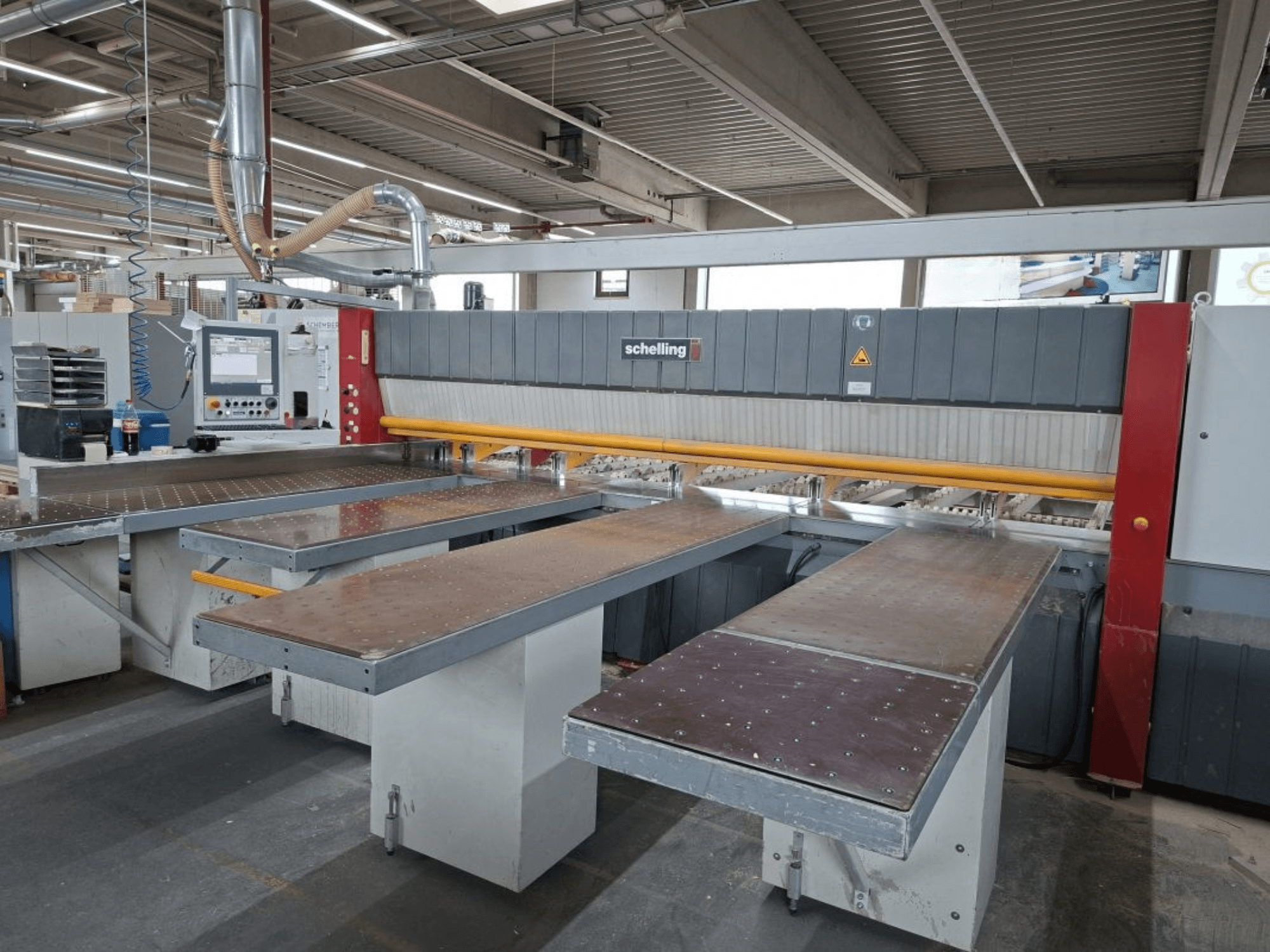

SCHELLING - FH 4DE-SAW-SCH-2012-00001

Panel dimensions

• Length: 2000–4100 mm

• Width: 300–2100 mm

• Thickness: 6–60 mm

• Panel thickness tolerance: -0.2 to +0.2 mm

Machine specifications

• Nominal cutting length (Saw Machine 430): 4250 mm

• Main saw blade diameter (max): 350 mm

• Scoring saw blade diameter: 300 mm

• Max saw blade clearance above table: 95 mm

• Max package height: 80 mm

• Strip aligner alignment force: 400–2000 N/piece

• Max clamp opening: 90 mm

• Working height: 970 mm

• Overall height: 2070 mm

Drives and speeds

• Main saw motor power: 15 kW

• Saw unit feed speed (forward): 5–120 m/min

• Saw unit feed speed (reverse): 120 m/min

• Feed speed (forward): up to 80 m/min

• Feed speed (reverse): up to 80 m/min

Additional equipment

• Panel storage system (Manufacturer: Grundner)

  • Length: 24.90 m

  • Width: 14.17 m

  • Stack height: 2 m

  • Lifting height: 2.10 m

  • Max panel size (L x W): 4.20 x 2.10 m

  • Min panel size (L x W): 1.80 x 0.60 m

  • Max lifting capacity: 250 kg

  • Horizontal drive power: 2.2 kW

  • Horizontal travel speed: approx. 120 m/min

  • Vertical travel speed: approx. 40 m/min

  • Panel material: suitable for vacuum gripping technology

  • Connected load: 6 kW

• ARDIS software package
