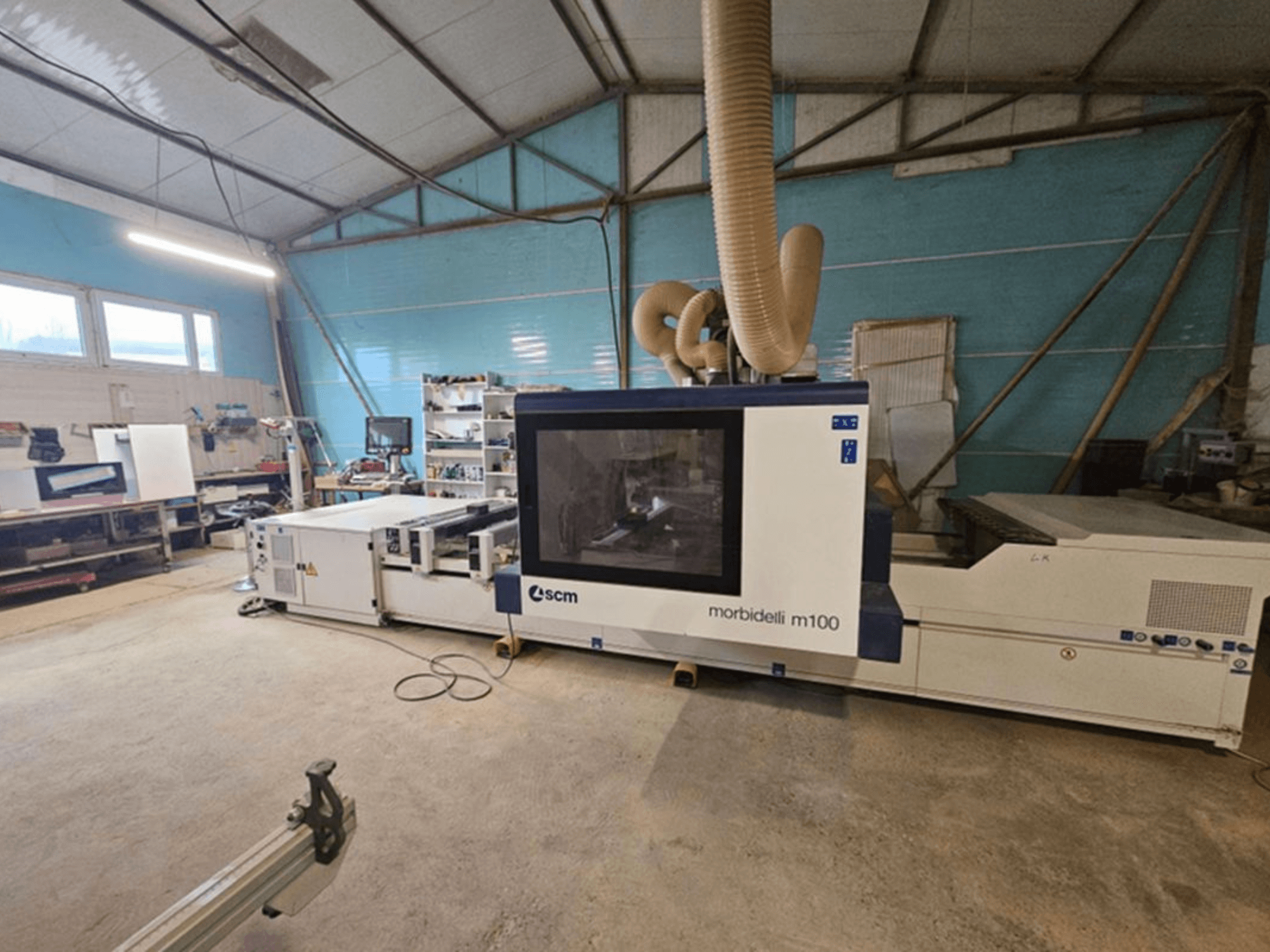

This 5-axis SCM Morbidelli M100 CNC processing center was manufactured in 2019. It features a useful working field of 3110 mm in the X-axis and 1620 mm in the Y-axis, designed for high productivity in furniture and panel processing. The machine includes advanced capabilities such as 5-axis routing, drilling, and integrated CAD-CAM software. If you are looking to get high-quality panel processing capabilities, consider the SCM Morbidelli M100 machine we have for sale. Contact us for further details.
Overview
- brand: SCM
- year: 2019
- MODEL: MORBIDELLI M 100
- application type: CNC Wood Machining
- Location: Romania
- machine type: CNC Processing Center
Technical Information - SCM MORBIDELLI M 100
Movement
- Number of Axes: 5
- X-axis Travel: 3110 mm
- Y-axis Travel: 1620 mm
- Z-axis Travel: 180 mm
Technical Specification
- Spindle Speed: 24000 RPM
Additional Information
Year/usage: Purchased 2019; approx. 2,000 operating hours
Axes/capabilities: 3/4/5-axis machining; drilling (vertical and horizontal on 4 sides), routing/milling, grooving, edge machining; PRO-SPACE safety system
Working area: X 3110 mm; Y 1620 mm; Z passage 180 mm; Y passage 1900 mm; pendulum length 1400 mm
Worktable: TV FLEX 1600 worktable, 6 mobile bars/supports, 6 crossbars; standard bar positions 6–12; mobile bar length 1600 mm; 12 fixed vacuum cups (145 x 145 x 75 mm); prep for 6 pneumatic clamps; 4 pneumatic panel loading/support devices; 8 rear limiters; 8 intermediate limiters; left lateral reference + laser for shaped parts
Structure/motion: Welded steel frame; linear guides with recirculating bearings; X by mobile bars, Y by gantry with rack & pinion both sides, Z by ball screw; CNC-managed positioning
Speeds: Max XY vector speed (PRO-SPACE) 56 m/min; drilling spindles up to 8,000 rpm; electrospindle up to 24,000 rpm
Drilling unit: F23L group with 13 vertical spindles (7R+6L), 10 horizontal spindles (4+3 in X, 2 in Y); integrated X-direction saw Ø125 mm, 2.2 kW; 75 mm pneumatic on/off stroke; inverter for programmable speed
Main spindle: Hiteco JQX 5-axis electrospindle, HSK F63, liquid cooled, ceramic bearings; power class ~10 kW (S6 up to ~15 kW), 24,000 rpm
Tool changers: Rear TRB 14 (14 positions; 350 mm stroke; 115 mm pitch; tools up to Ø240 mm; total 70 kg); Front FAST 14 (14 positions; tools up to Ø130 mm in selected pockets; max 8 kg/tool; total 24 kg)
Control/software: Windows 7; 21.5" FHD display; keyboard/mouse + machine panel; Maestro CNC CAD/CAM (parametric/graphic programming, DXF import, ISO graphics, simulation); TECPAD 7" mobile touch pendant; remote control along machine
Vacuum: Standard vacuum pump (machine standard); centralized automatic lubrication
Utilities: Installed power 23 + 28.5 kVA; compressed air 450 NL/min; dust extraction requirement 4500 m³/h, 25 m/s, outlet Ø250 mm; centralized/optimized extraction with adjustable conveyor and grouped outlets
Safety/standards: PRO-SPACE concept (no front photocells/side fences per offer), CE conformity, emergency stops and guarded areas as per EU norms
Additional equipment
Additional vacuum pump: 1 x 90 m³/h
Additional hardware key for Xilog/Maestro (USB)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
