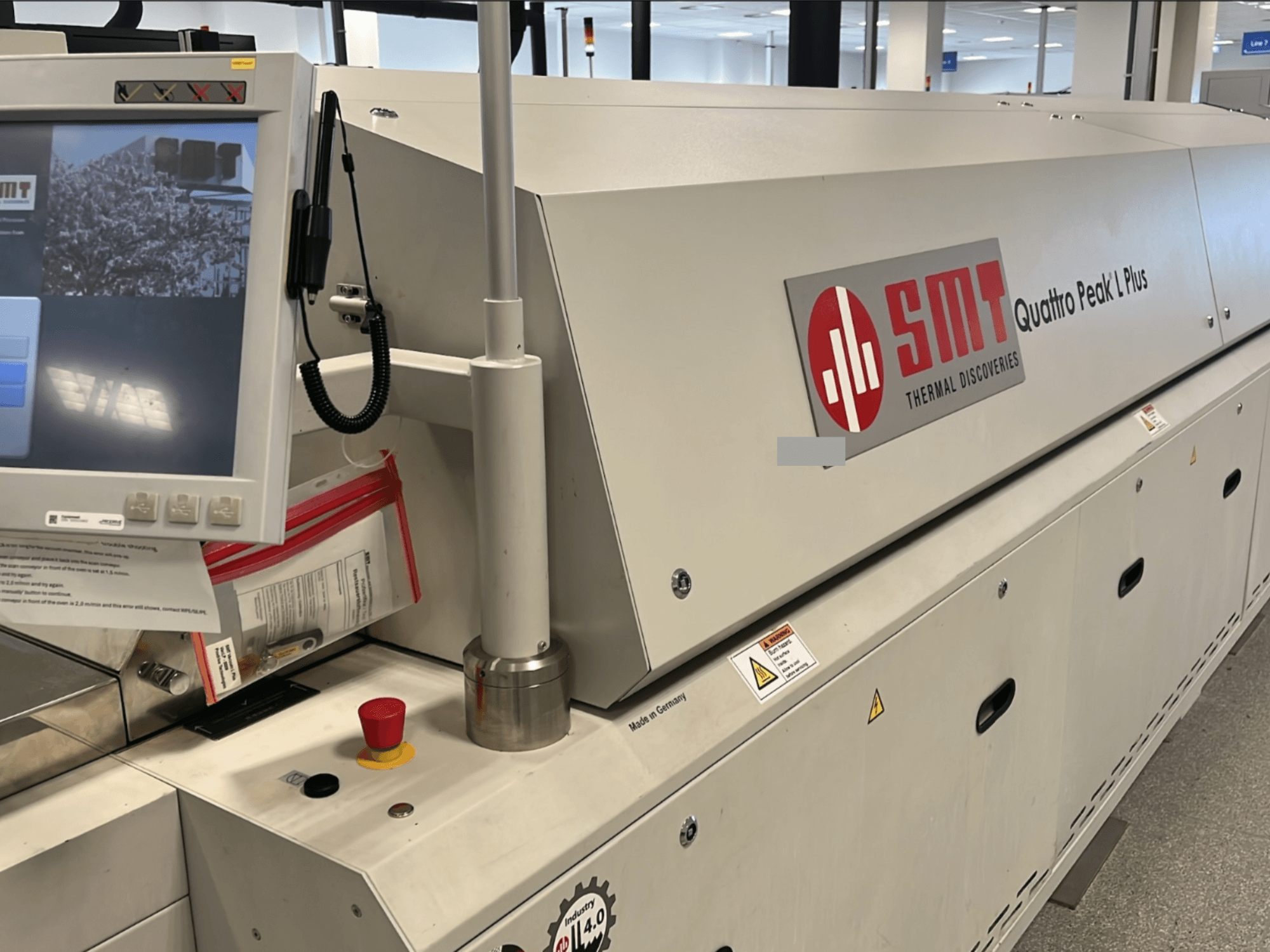

SMT - Vacuum L Plus VacNL-OTH-SMT-2018-00001

• Heating configuration: 5 x preheating zones, 4 x peak zones, 1 x vacuum chamber

• Cooling configuration: 3 x zones standard (up to 5 optional)

• Typical conveyor speed: 1.3 m/min

• VAC cycle time: approx. 38 s per lane

• Vacuum chamber dimensions (L x W): 450 x 510 mm (max. product)

• Vacuum chamber cycle time extension: approx. 8–13 s

• Process gas cleaning: 3 x high-temperature ABS

• Fan speed control: Infinitely variable via frequency converter (5 pcs total)

• UPS voltage: 24 V

• Nitrogen residual oxygen display: DRSM011

• Nitrogen measurement display: PC monitor

• Conveyor type: Single-lane chain conveyor (pin chain)

• Conveyor width: 65–510 mm

• Conveyor rail: Fixed rail front (Rail 1)

• Chain pin length: 3 mm

• Center support height/drop: 10 mm / 10 mm

• Network interface: Ethernet

• Handling interface: SMEMA (IPC/SMEMA-STD1)

• Cooling zone lengths: Zone 1 = 585 mm; Zone 2 = 473.5 mm; Zone 3 = 473.5 mm

• Cooling water requirement: < 15°C and 15 l/min

• Barcode interface: RS232

• Monitoring sensors: PT100 (Guard software)

Additional equipment

• Included: Not specified

• Option compatibility (not included unless stated):

  • Nitrogen options: RE0004, RM0002, VA0002, RE0005

  • Cooling options: RE0026, RE0066, RE0067, RM0008

  • Process monitoring options: RE0007, AL0011
