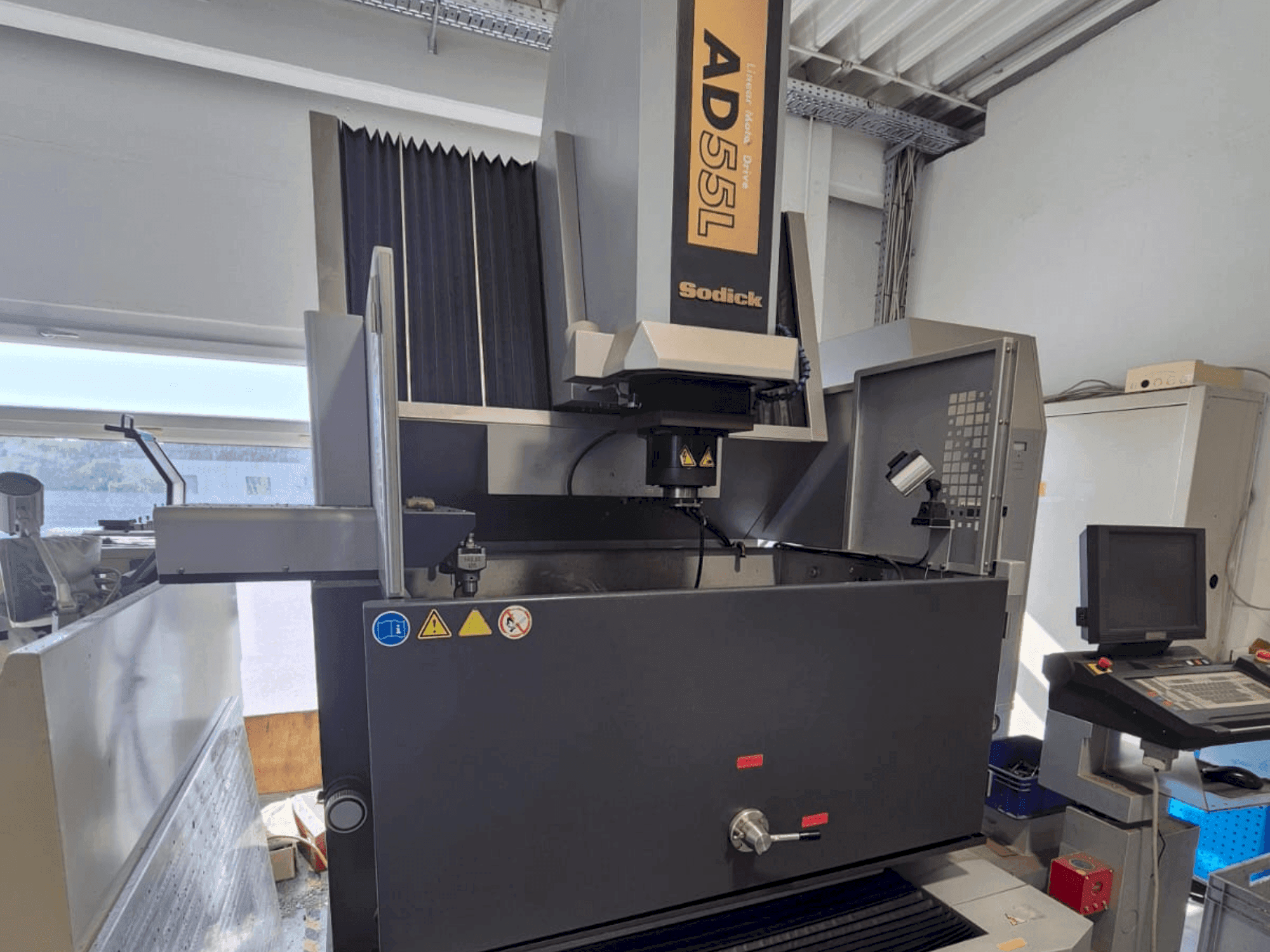

This Sodick AD 55 L die-sinking EDM machine was manufactured in 2016. It features a work tank with internal dimensions of 1200 x 800 x 500 mm and a capacity of 470 liters, supporting a maximum workpiece weight of 1000 kg. Equipped with a cooling unit for the linear motor, a C-axis, and a SGF generator unit, it offers robust performance for precision applications. Contact us for more information about this machine.
Overview
- brand: Sodick
- year: 2016
- MODEL: AD 55 L
- application type: EDM
- Location: Germany
- machine type: Die-Sinking EDM Machine
Technical Information - Sodick AD 55 L
Dimensions
- Machine Depth: 2335 mm
- Machine Height: 2635 mm
- Machine Weight: 4020 kg
Movement
- X-axis Travel: 600 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 400 mm
Additional Information
Additional equipment
Features: 10-year warranty on positioning accuracy, LN Professional, Cooling unit for linear motor, Glass scales (X, Y, Z axes), Remote control, USB port, Shuttle ATC, C-axis (SEC-10), SGF generator unit, 15" TFT touchscreen, Dielectric cooling unit, Automatic voltage stabilizer, Paper filters (2), Fire extinguisher, Mouse, LAN port, Work lighting
Machine Benefits
Technical Machine Benefits
Machine footprint (w x d): 3300 x 3535 mm
Work tank internal dimensions (w x d x h): 1200 x 800 x 500 mm
Work tank capacity: 470 l
Workbench size (w x d): 750 x 550 mm
Air flow: 100 nl/min
Power requirement: 3-phase 50/60hz, 10 kva
Extra Information
Machine operating times:
Machine switch-on time: 3089 hours
Machine processing time: 1488 hours
Accessories: 40 Erowa electrode holders
On request, copper rod material, various threads and rod electrodes are available at an additional cost at the current copper price.
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
