Sodick - AQ 327 LIT-EDM-SOD-1995-00001

Name: Sodick AQ 327 L
Brand: Sodick
SKU: IT-EDM-SOD-1995-00001
Price: 32000 EUR
Availability: InStock

32,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Sodick AQ 327 L - Wire EDM For Sale | gindumac.com

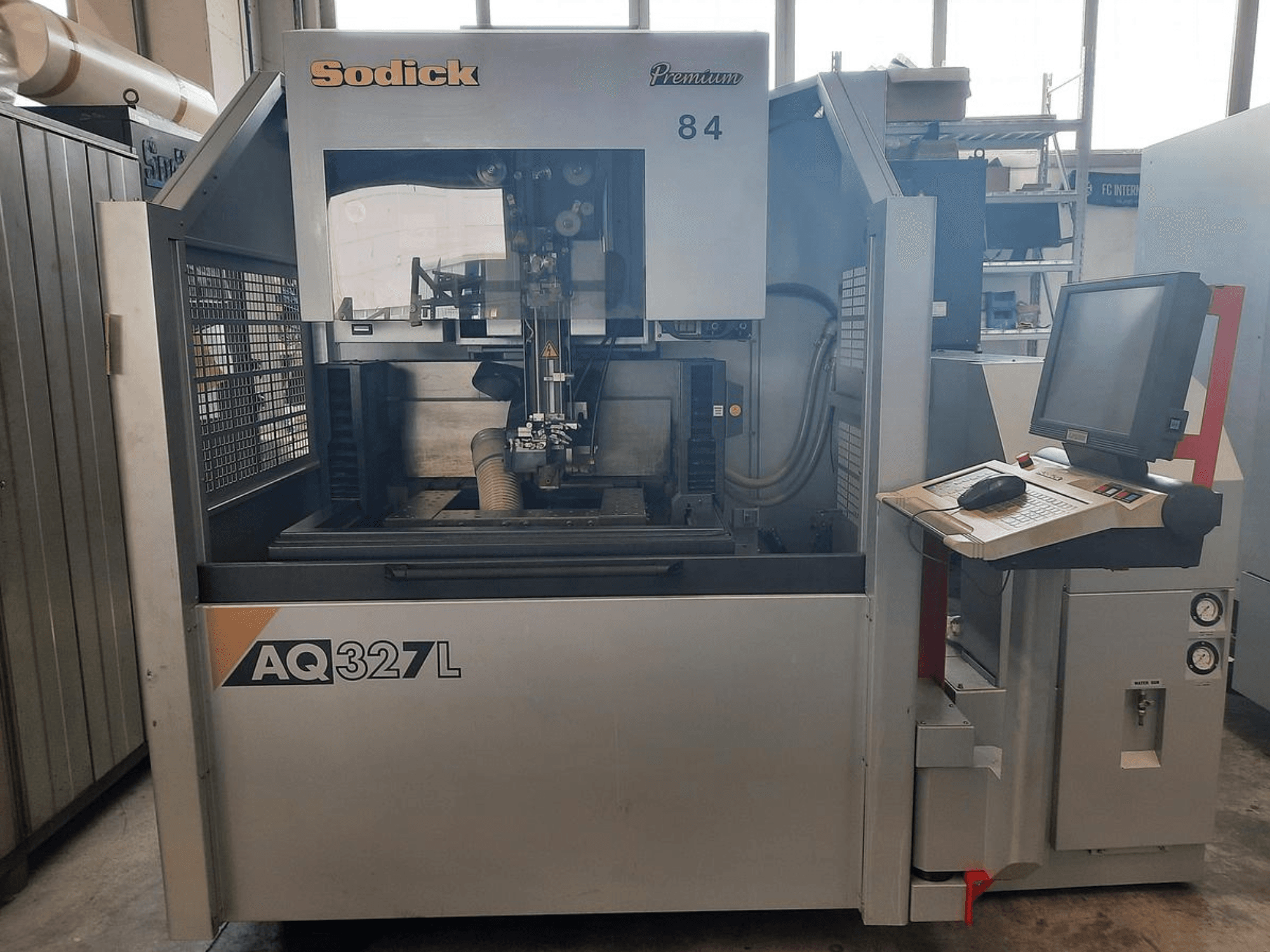

This 5-axis Sodick AQ 327 L wire EDM machine was manufactured in 1995. It features a table/work tank of 570 × 420 mm, supports a maximum workpiece weight of 500 kg, and offers a taper angle of ±25° for 80 mm cutting height. If you are looking to get high-quality precision cutting capabilities, consider the Sodick AQ 327 L machine we have for sale. Contact us for more information about this machine.

Overview

brand: Sodick
year: 1995
MODEL: AQ 327 L
application type: EDM
Location: Italy
machine type: Wire EDM Machine

Technical Information - Sodick AQ 327 L

Dimensions

Machine Depth: 3200 mm
Machine Height: 2220 mm
Machine Length: 3200 mm
Machine Weight: 3800 kg

Movement

Number of Axes: 5
X-axis Travel: 370 mm
Y-axis Travel: 270 mm
Z-axis Travel: 250 mm

Additional Information

U-axis travel: 120 mm
V-axis travel: 120 mm
Max workpiece height: 240 mm
Max workpiece weight: 500 kg
Table/work tank dimensions: 570 × 420 mm
Internal tank dimensions: 850 × 630 mm
Taper angle: ±25° for 80 mm cutting height
Wire diameter: 0.15 – 0.30 mm
Wire tension: 3 – 23 N
Wire feed speed: 420 mm/sec

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
