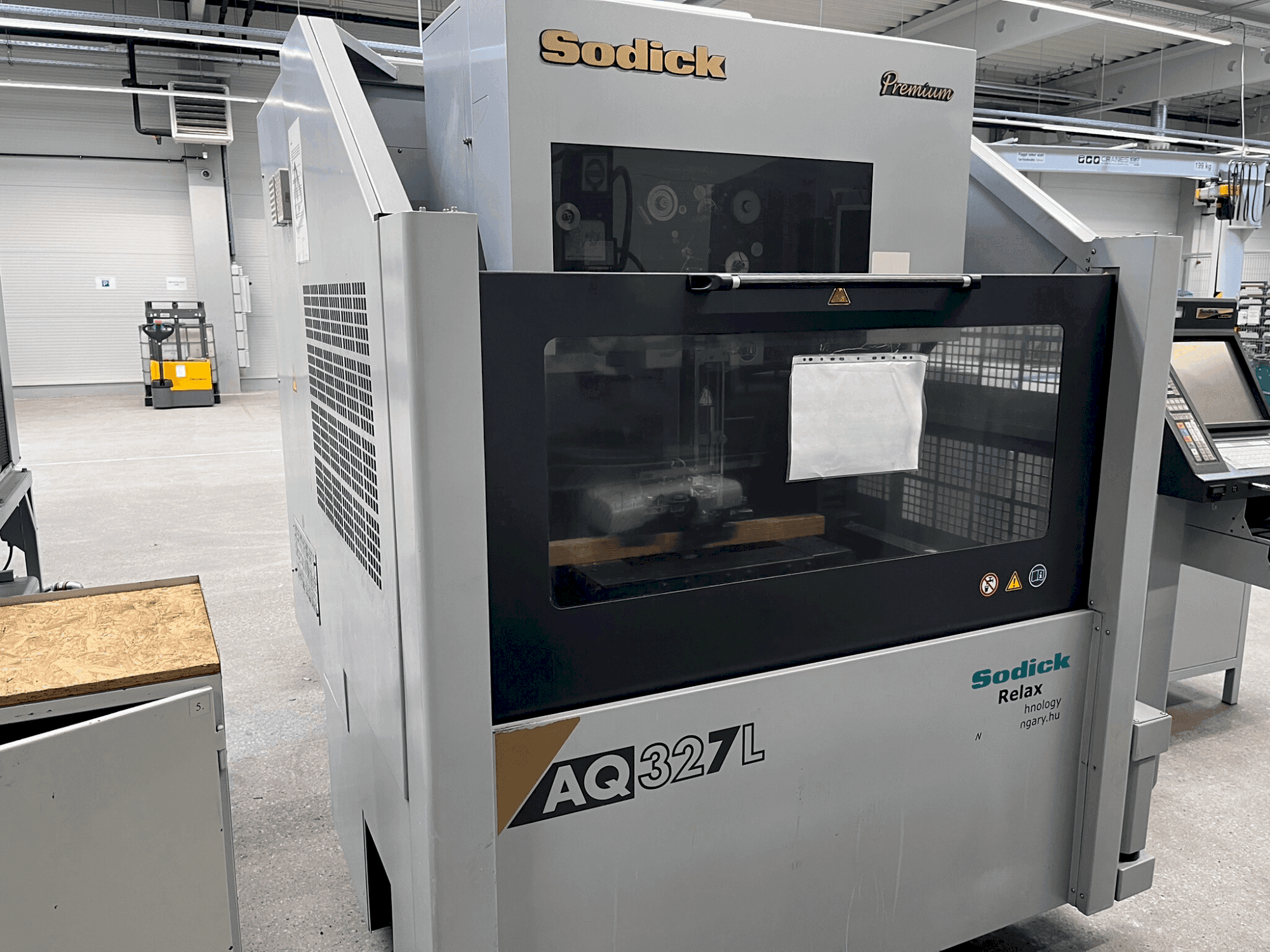

Front view of Sodick AQ327L  machine
Front view of Sodick AQ327L  machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Sodick AQ327L

Photo Gallery
An SVG of an eye

Sodick - AQ327LHU-EDM-SOD-2003-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
  • GINDUMAC
  • Products
  • Machine Tools
  • SODICK AQ327L Wire cut EDM machine
Show in original language

This SODICK AQ327L Wire cut EDM machine was manufactured in 2006. It is equipped with a SODICK LQ33W control and has 3 axes with axis travel (X x Y x Z) 370 x 270 x 250 mm. The machine has a work tank inner size of 820 x 610 mm and operates with a wire diameter of Ø 0.15 - Ø 0.3 mm.

Overview

  • brand: Sodick
  • year: 2006
  • MODEL: AQ327L
  • application type: EDM
  • Location: Hungary
  • machine type: Wire EDM Machine
  • availability: Sold
  • control unit brand: SODICK

Technical Information - Sodick AQ327L

General Data

  • Measurements width: 2225 MM
  • Measurements depth: 2395 MM
  • Measurements height: 2220 MM
  • Machine weight: 3950 kg

Control Unit

  • Model: LQ33W
  • Brand: SODICK

Movement

  • X-AXIS Movement: 370 MM
  • Y-AXIS Movement: 270 MM
  • Z-AXIS Movement: 250 MM

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Work tank size: 850 x 610 mm
      • - Max. Workpiece dimensions (w x d x h) 570 x 420 x 240 (flushing) mm // 570 x 420 x 230 (submerged) mm
      • - Max. Workpiece weight: 500 kg
      • - U axis x v axis travel 120 x120 mm
      • - Taper angle (workpiece thickness of 100mm) ±25°
      • - Wire diameter 0. 15~0. 30#1 mm
      • - Wire feed speed (max) 420 mm/sec
      • - Wire tension 3~23 n
      • - Distance from floor to table top 995 mm
      • - Total power input normal: 10,5 kva

    Extra information

    • - Sodick's pioneering advancements in core technology have propelled them to achieve unparalleled feats in high-speed precision machining, epitomized by their groundbreaking "7 series". Extensive simulations conducted through state-of-the-art 3-D design systems have underscored the advantages of Sodick's innovative design approach, leveraging ceramics for critical machine tool components. Nonetheless, Sodick remains steadfast in its commitment to time-tested methodologies, such as meticulous scraping of all mating surfaces, to optimize the inherent robustness of the machine's foundational structure. The cutting-edge electric discharge control system orchestrates machine tool operations with precision, while the incorporation of linear motors on each axis ensures unparalleled responsiveness.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
