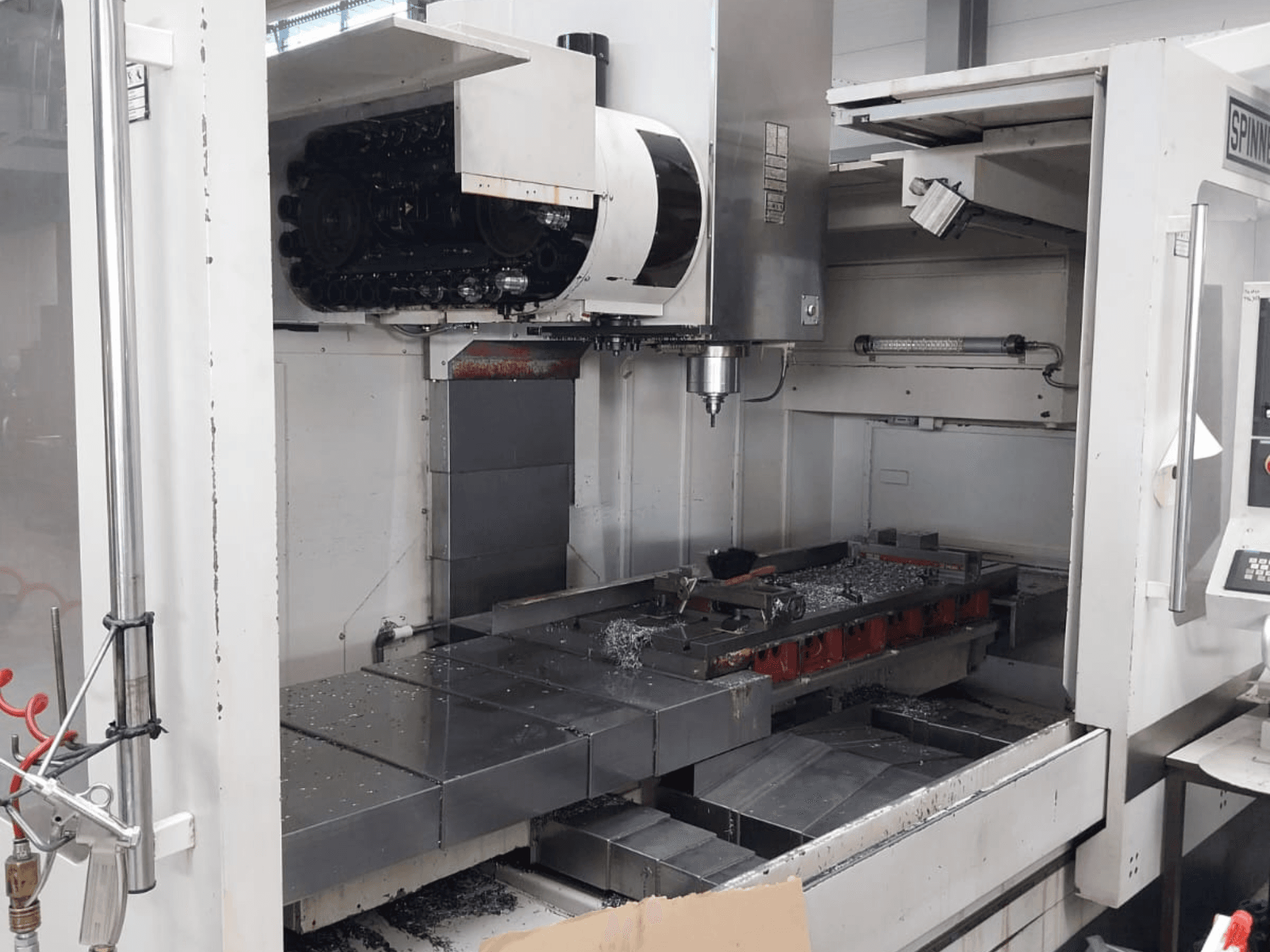

Front view of SPINNER MVC 1600 vertical machining centre showcasing the open workspace, spindle, and metal chips on the table.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

SPINNER MVC 1600

Photo Gallery

SPINNER - MVC 1600DE-MIL-SPI-2013-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SPINNER MVC 1600 For Sale | gindumac.com

This 3-axis SPINNER MVC 1600 was manufactured in 2013. It features an impressive X-axis travel of 1600 mm, Y-axis travel of 810 mm, and Z-axis travel of 700 mm. The machine includes a robust table size of 1800 x 810 mm and a maximum workpiece weight of 2000 kg. If you are looking to get high-quality machining capabilities, consider the SPINNER MVC 1600 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: SPINNER
year: 2013
MODEL: MVC 1600
production hours: 16981
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - SPINNER MVC 1600

Dimensions

Machine Weight: 8000 kg

Movement

Number of Axes: 3
X-axis Travel: 1600 mm
Y-axis Travel: 810 mm
Z-axis Travel: 700 mm

Technical Specification

Spindle Power: 22 kW
Spindle Speed: 10000 RPM
Taper Size: SK 40
Tool Stations: 24

Additional Information

Rapid traverse (X/Y/Z): 18 / 18 / 15 m/min
Table size: 1800 × 810 mm
Maximum workpiece weight: 2000 kg
Spindle torque: 109–1052 Nm
Tool magazine capacity: 24 tools
Tool changer condition: defective
Supply voltage: 400 V
Power supply: 3 / PE
Frequency: 50 / 60 Hz
Rated current (IB): 58 A
Nominal current (IN): 63 A
Hours: 16,981 h

Additional equipment

Optional 4th axis for 10.000€

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
