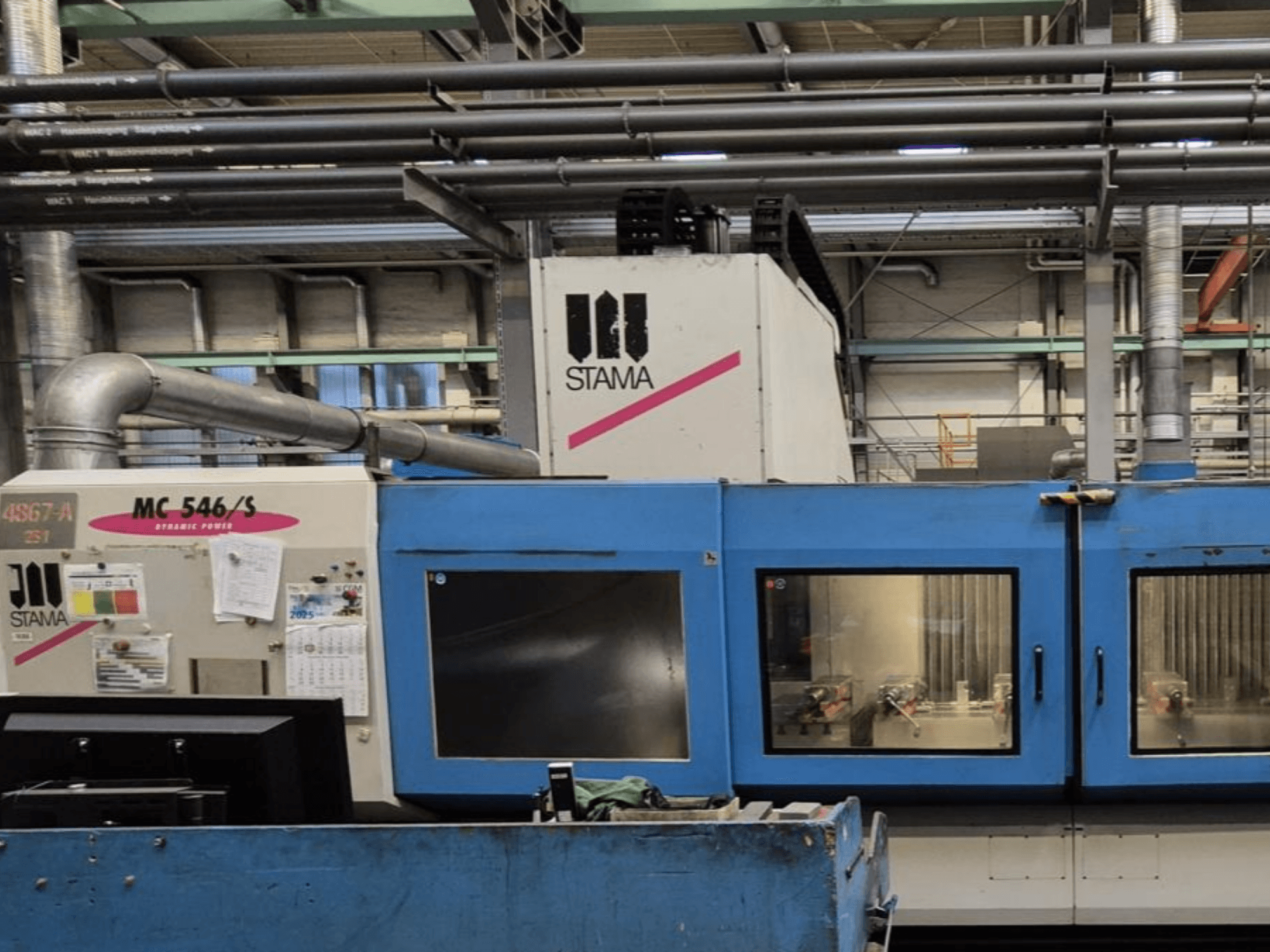

This 3-axis STAMA MC 546/S was manufactured in 2001. It features a powerful main spindle motor with a maximum speed of 6,000 RPM and a torque of 840 Nm. The machine is equipped with Siemens control and motors for precise operation. If you are looking to get high-quality machining capabilities, consider the STAMA MC 546/S vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: STAMA
- year: 2001
- MODEL: MC 546/S
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - STAMA MC 546/S
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Dimensions
- Machine Height: 4000 mm
- Machine Length: 10200 mm
- Machine Weight: 27500 kg
- Machine Width: 6400 mm
Movement
- Number of Axes: 3
- X-axis Travel: 4000 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 750 mm
Technical Specification
- Spindle Power: 28 kW
- Spindle Speed: 6000 RPM
- Taper Size: SK 50
Additional Information
- Throat Depth: 890 mm
- Table to Spindle Nose Min.: 450 mm
- Table to Spindle Nose Max.: 1200 mm
- Max. Workpiece Weight: 15 kg
- Table Clamping Surface Length: 4500 mm
- Table Clamping Surface Width: 840 mm
- T-Slots: 2 (22 DIN 650)
- Slot Width: 22H12/H7
- Slot Distance: 700 mm
- Table Height Above Floor: 890 mm
- Required Floor Area (L x W x H): 10.2 m x 6.4 m x 4.0 m
- Total Weight: 27,400 kg
- Connected Load: 50 kVA
- Total Power Requirement: 50 kW
- Voltage: 400 V (3~, 50 Hz)
- Rated Current: 80 A
- Spindle Bearing Diameter: 95 mm
- Tool Taper / Holder: SK50
- Max. Torque: 840 Nm with gear ratio i=4 (at 40% ED)
- Spindle Speed Range: 36 - 6000 rpm
- Tool Magazine Capacity: 60 tools
- Tool Clamping Force: 20,000 N
- Max. Tool Diameter: 180 mm
- Max. Tool Length: 400 mm
- Feed Rates (X, Y, Z): 1 - 10,000 mm/min
- Rapid Traverse Rates (X / Y / Z): 30 m/min / 30 m/min / 22 m/min
- Max. Feed Force (X / Y / Z): 12,000 N / 12,000 N / 18,000 N
- Max. Milling Capacity: 1,000 cm³
- Max. Drilling Diameter: 90 mm
- Max. Tapping Diameter: M40
- Included features: Weekend switch-off circuit; internal lighting
- Not included: Clamping table; vices
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
