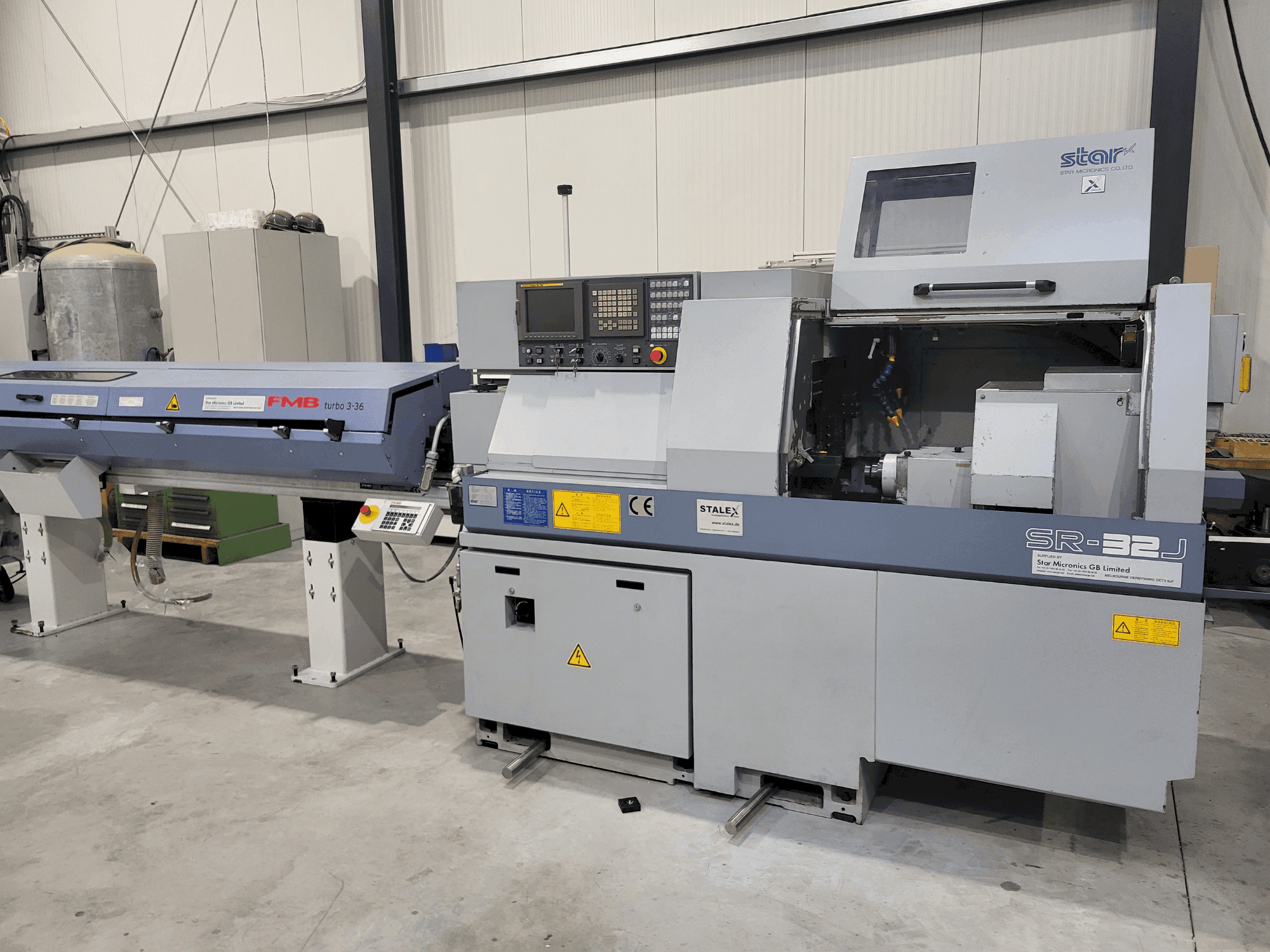

Star - SR-32JDE-TUR-STA-2007-00001

Additional equipment

• With FMB bar loader
• The Star SR32J is sold together with an FMB trubo 3-36 stage loader.
• The bar loader was built in 2008, and the machine itself is from 2007.
• The machine features a JBS guide bushing system for increased precision thanks to flexible guide bushings.
• It also features a Star ER 16/ER11 front-end drilling unit with three spindles for front and rear machining.

Machine Benefits

Technical Machine Benefits

• Maximum machining diameter: 32mm
• Number of tools: 4~15 tools (including op)
• Tool shank dimensions: 6mm x 95~155mm
• Maximum drilling capability: 13mm
• Maximum tapping capability: m12xp1. 75
• Maximum die cutting capability: m10xp1. 5
• Power-driven attachment maximum drilling capability: 8mm
• Maximum tapping capability with power-driven attachment: m6xp1. 0
• Maximum milling capability: 10mm
• Main spindle indexing angle: c-axis control (15* : op)

Extra Information

Coolant Tank Capacity: 174 liters The following accessories are optional available: Two turning holders for Kennametal indexable heads One DCMT indexable head, one threaded plate indexable head Two drill holders, one ER16 and one ER20 A DCMT turning holder, a drill holder, and two driven tools Collets for diameters of 10 mm and 18 mm, as well as for 13 SW Counter spindle collets in diameters of 8mm and 9mm
