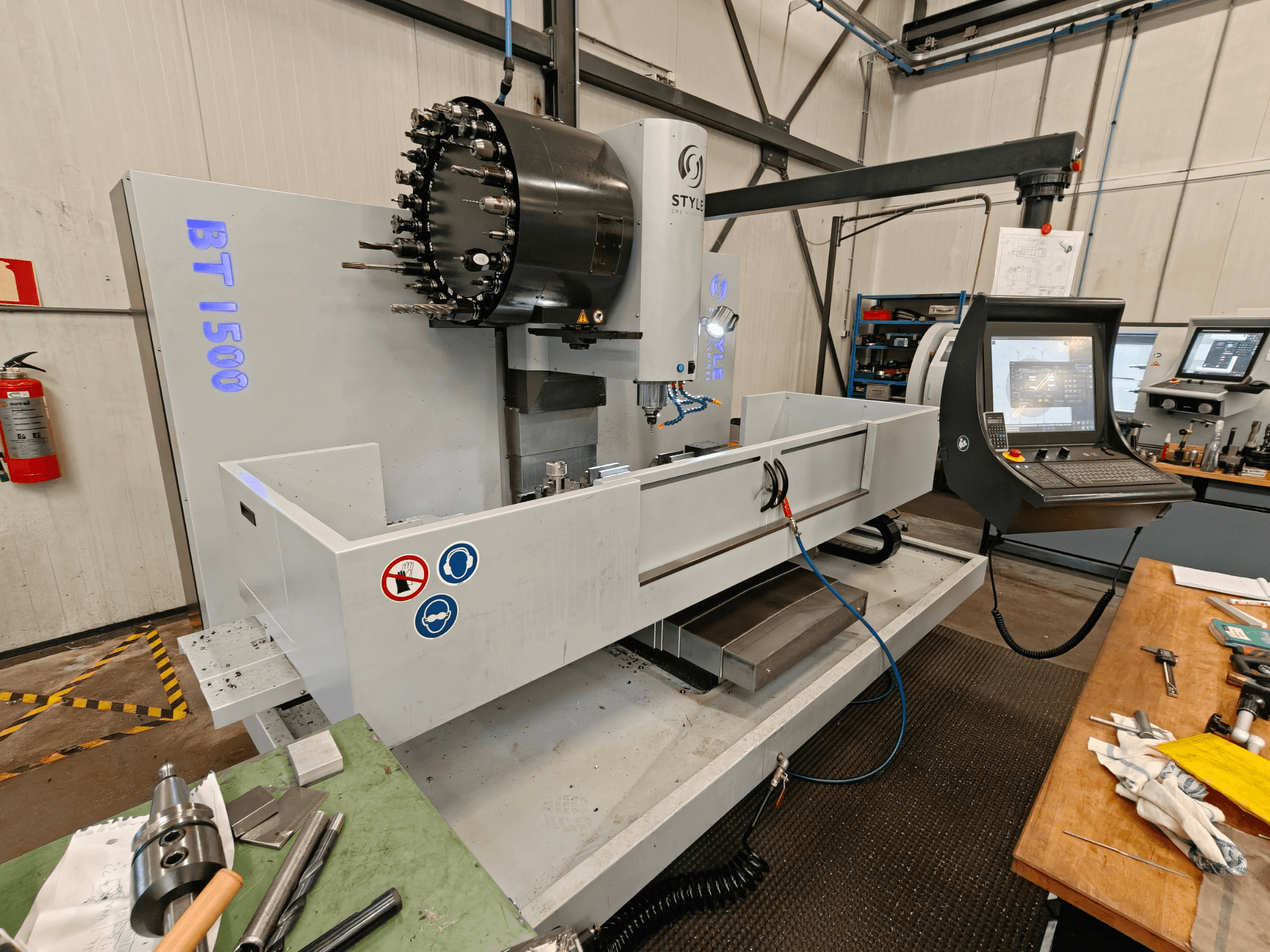

This 3-axis STYLE BT 1500 was manufactured in 2024. It features an X-axis stroke of 1500 mm, Y-axis stroke of 650 mm, and Z-axis stroke of 600 mm. The machine includes a robust table size of 1850 x 610 mm with a maximum table load of 1000 kg. If you are looking to get high-quality machining capabilities, consider the STYLE BT 1500 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: STYLE
- year: 2024
- MODEL: BT 1500
- production hours: 440
- application type: Milling
- Location: Netherlands
- machine type: Vertical Machining Centre
- Available from: 30/06/2026
- control unit brand:
Technical Information - STYLE BT 1500
Dimensions
- Table Load: 1000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1500 mm
- Y-axis Travel: 650 mm
- Z-axis Travel: 600 mm
Technical Specification
- Spindle Speed: 8000 RPM
- Taper Size: SK 40
Additional Information
Bed width: 700 mm
Table dimensions: 1,850 x 610 mm
Table working height: 850 mm
Distance spindle nose–table: 130–730 mm
Distance spindle nose–column: 625 mm
Spindle taper: BT – SK/DIN698713 40
Excl:
- Workpiece holders, probe and toolholders (can be bought for an additional amount)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
