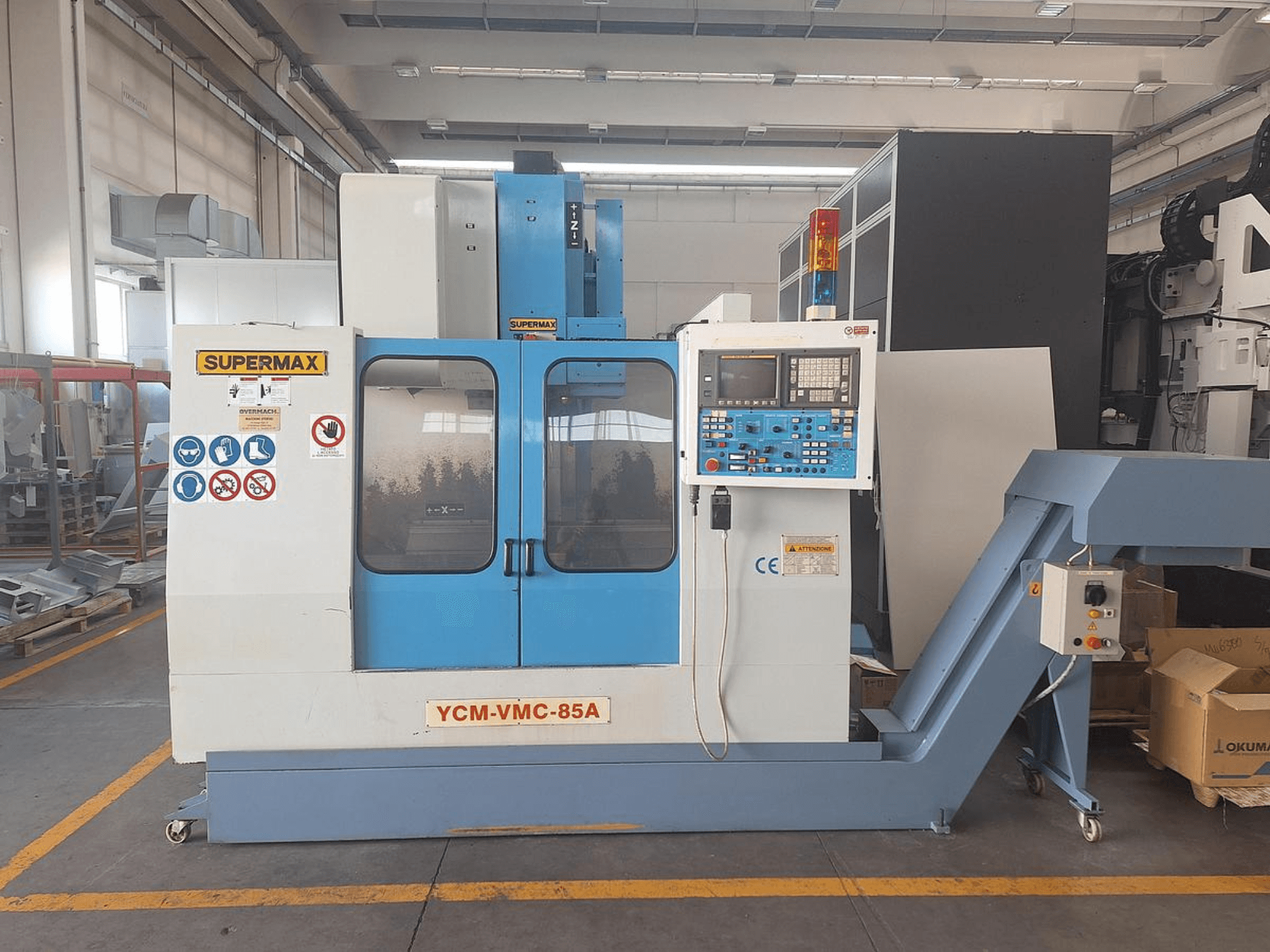

Vertical Machining Centre SUPERMAX YCM-VMC-85A in a factory with control panel and safety decals, front view.
Vertical Machining Centre SUPERMAX YCM-VMC-85A in a factory with control panel and safety decals, front view.

SUPERMAX - YCM-VMC-85AIT-MIL-SUP-1996-00001

9,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis SUPERMAX YCM-VMC-85A was manufactured in 1996. It features a table size of 940 × 400 mm, with an X-axis travel of 850 mm, Y-axis travel of 440 mm, and Z-axis travel of 630 mm. The machine is equipped with a spindle speed of 8,000 rpm and a tool changer with 22 positions. If you are looking to get high-quality machining capabilities, consider the SUPERMAX YCM-VMC-85A vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: SUPERMAX
  • year: 1996
  • MODEL: YCM-VMC-85A
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - SUPERMAX YCM-VMC-85A

Control Unit

  • Control Brand: FANUC
  • Control Model: Series 0-M

Movement

  • Number of Axes: 3
  • X-axis Travel: 850 mm
  • Y-axis Travel: 440 mm
  • Z-axis Travel: 630 mm

Technical Specification

  • Spindle Power: 7.5 kW
  • Spindle Speed: 8000 RPM

Additional Information

  • Tool taper: BT40

  • Table

    • Outer length: 940 mm

    • Outer width: 400 mm

    • Table load: 250 kg

  • Number of tool slots: 22

  • Chip conveyor: Hinged belt type

    • External hydraulic power unit

    • Automatic lubrication system

    • Pneumatic filtration/regulation unit

    • Work status tower light (red/yellow/green)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
