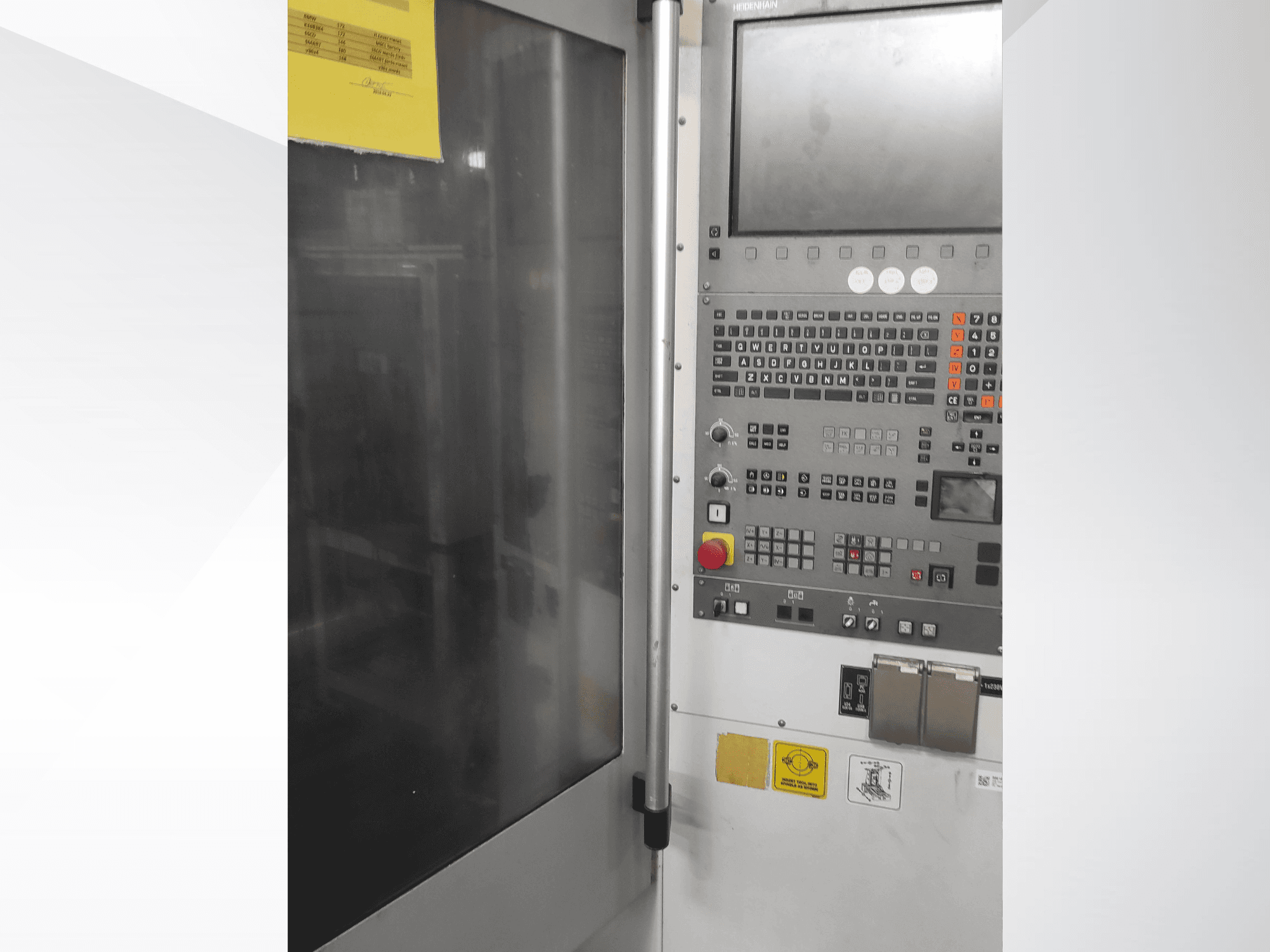

• B axis (table indexing range): 360°

• Distances:

  • Spindle face to rotary table axis: 130–690 mm

  • Spindle axis to pallet clamping surface: 80–590 mm

  • Floor to pallet surface: 950 mm

• Feedrates:

  • Feedrates in X/Y/Z: 0–15 m/min (programmable up to 50 m/min)

  • Rapid traverse in X/Y/Z: 50 m/min

  • Acceleration in X/Y/Z: 5 m/s²

• Rotary table indexing time:

  • 0–90°: 3.2 sec

  • 0–180°: 4.6 sec

  • 0–270°: 5.5 sec

  • 0–360°: 6.7 sec

• Accuracy (VDI/DGQ 3441):

  • Direct measuring system: Positioning X/Y/Z 0.008 mm; Repeatability X/Y/Z 0.005 mm

  • Indirect measuring system: Positioning X/Y/Z 0.010 mm; Repeatability X/Y/Z 0.006 mm

• Spindle:

  • Transmission: Belt

  • Continuous torque (S1): 90 Nm

  • Torque at overload (S6-40%): 127 Nm

• Automatic Tool Changer:

  • Capacity: 45 tools

  • Tool search: Both directions

  • Tool-to-tool time: 3.5 sec

  • Max tool diameter: 85 mm (with adjacent tools), 125 mm (without adjacent tools)

  • Max tool length: 300 mm

  • Max total weight in changer: 200 kg

Additional equipment

• Automatic pallet changer (APC):

  • Number of pallets: 2

  • Pallet exchange time: 10 sec

  • Pallet weight: 90 kg

• Coolant filtration unit: TECNIMETAL (weight without coolant: 280 kg)
