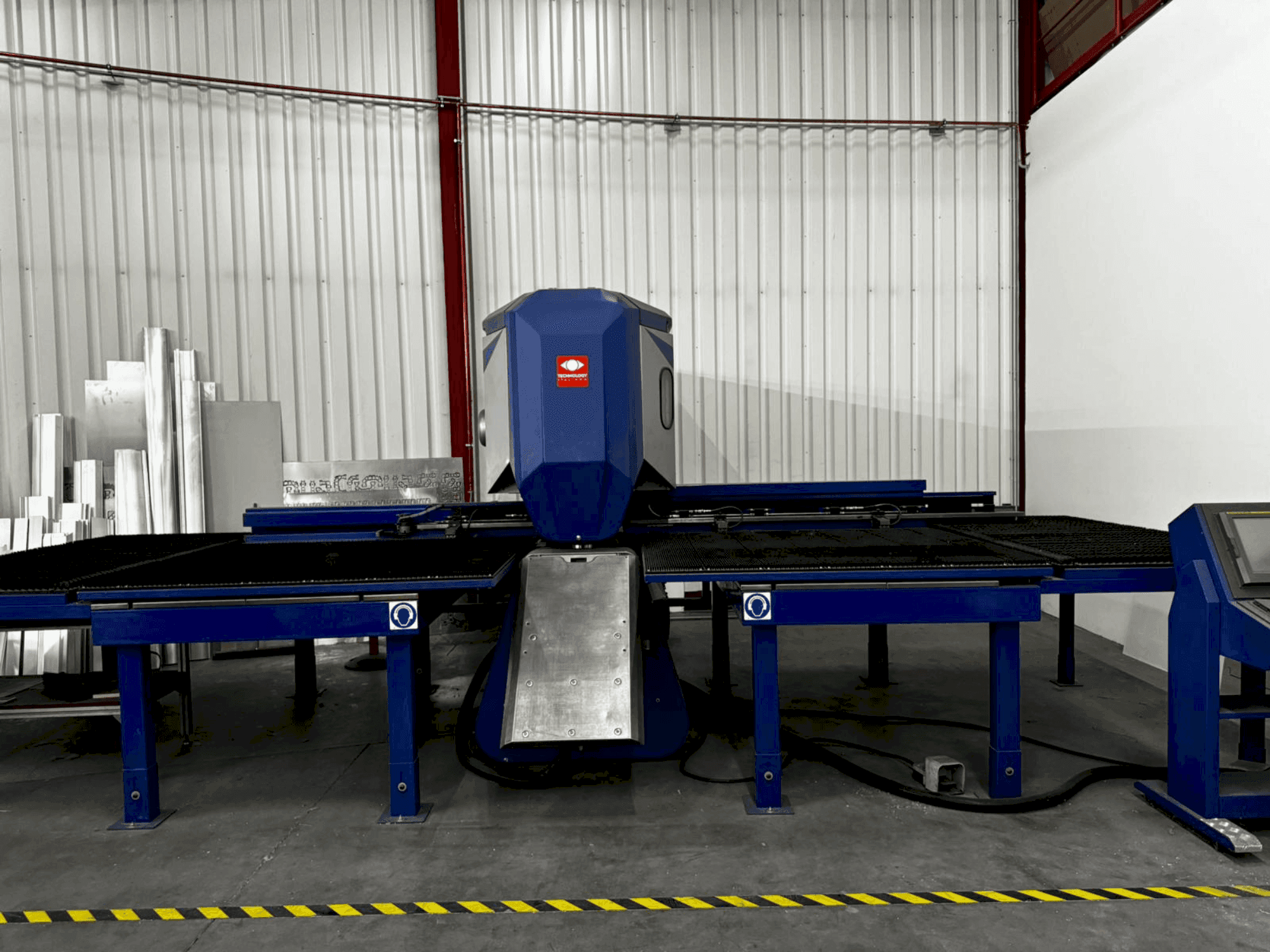

➤ Used TECHNOLOGY Tecnotransfer 1500x3000 For Sale

This TECHNOLOGY Tecnotransfer 1500x3000 was manufactured in 2007. A robust CNC punching machine, it offers precision and efficiency for your metalworking needs. If you are looking to get high-quality punching capabilities, consider the TECHNOLOGY Tecnotransfer 1500x3000 machine we have for sale. Contact us for more information.

Overview

brand: TECHNOLOGY
year: 2007
MODEL: Tecnotransfer 1500x3000
application type: Punching
Location: Germany
machine type: CNC Punching Machine
control unit brand: FANUC

Technical Information - TECHNOLOGY Tecnotransfer 1500x3000

Control Unit

Control Brand: FANUC
Control Model: FANUC 16I-PB

Dimensions

Machine Depth: 6190 mm
Machine Height: 2450 mm
Machine Weight: 8400 kg
Table Length: 1500 mm
Table Width: 3000 mm

Movement

X-axis Travel: 3090 mm
Y-axis Travel: 1540 mm

Additional Information

Additional equipment

Integrated Auto-Index system
Automatic tool change system with 15 stations
Waste extraction system at the die
Pedal for opening/closing sheet clamps
Pedal for single punching operation
Automatic collision prevention for tilting parts and cutouts
Interactive CAD with export function
Import of CAD drawings in common formats
Interactive nesting (freehand, bump nesting)
Automatic positioning of special tools

Machine Benefits

Qualitative Machine Benefits

Maximum punching diameter with technology tools: 100 mm
Maximum punching diameter with trumpf tools: 80 mm
Maximum punching and nibbling thickness: 6 mm
Automatic tool sharpening recovery: 10 mm
Tool change time: 4 seconds
Automatic sheet metal processing, including residual grid destruction

Technical Machine Benefits

Workpiece repositioning: automatic
C-frame structure: c-frame (schwanenhals)
Operating manuals included
Technical support available
Processable sheets with automatic repositioning: 1500 x 6000 mm
Steel and ball plates for sheet metal support
Front horizontal plane for sheet metal unloading
Number of stored stations: 15
Number of rotating stations: 15

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
