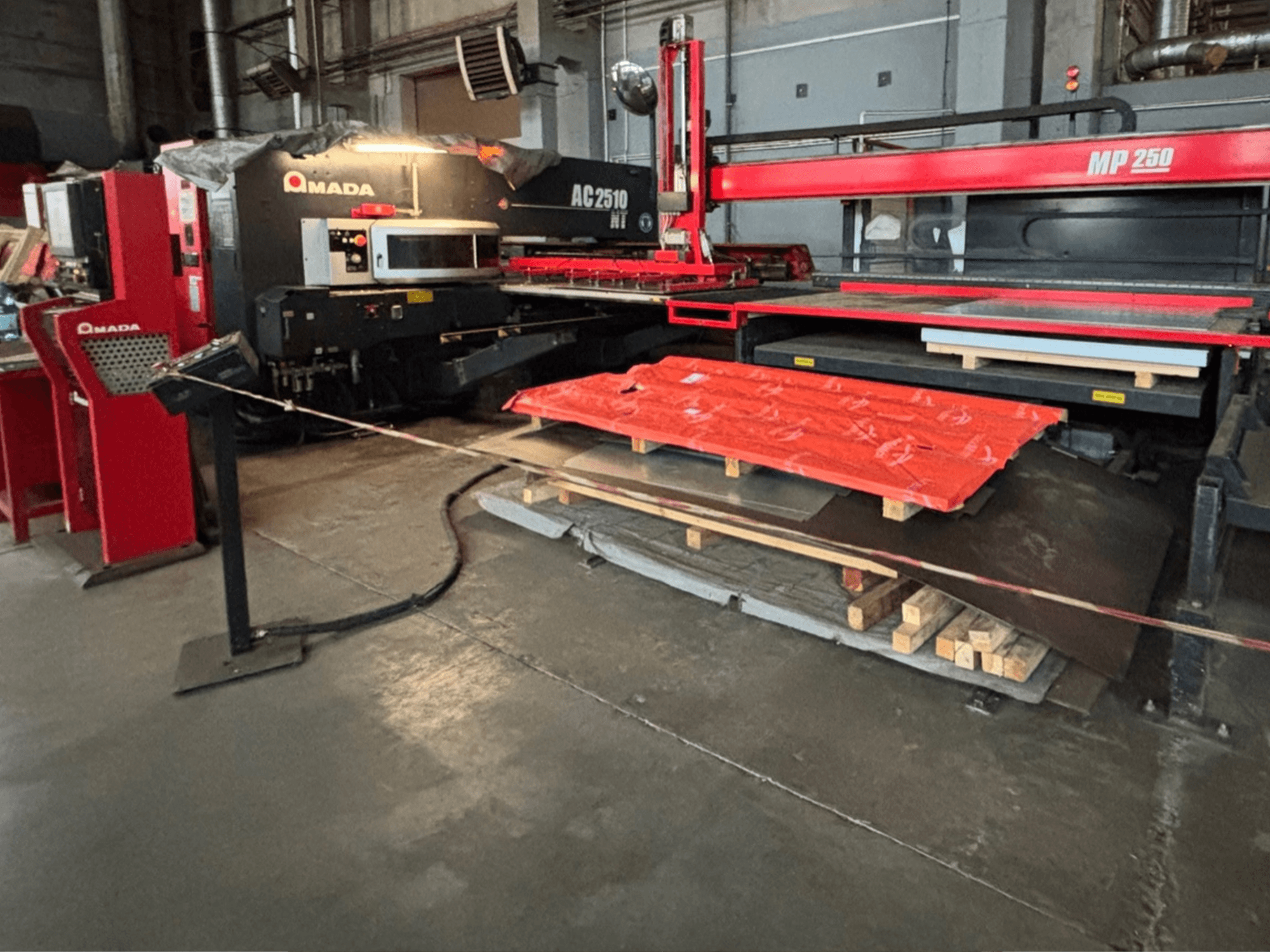

Amada AC2510 NT laser cutter in factory setting, front view, heavy machinery with metal sheets and pallets on the floor.

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

AMADA AC2510 NT + MP 250

Photo Gallery

AMADA - AC2510 NT + MP 250PL-PUN-AMA-2009-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used AMADA AC2510 NT + MP 250 For Sale | gindumac.com

This AMADA AC2510 NT + MP 250 was manufactured in 2009. It features a 51-station turret and can handle sheet sizes up to 1270 × 5000 mm, with a maximum thickness of 3.2 mm for mild steel. The machine includes a loading system MP 250, enhancing its efficiency. Consider the opportunity to buy this AMADA AC2510 NT + MP 250 CNC punching machine. Contact us for more information.

Overview

brand: AMADA
year: 2009
MODEL: AC2510 NT + MP 250
production hours: 22574
application type: Punching
Location: Poland
machine type: CNC Punching Machine
control unit brand: AMADA

Technical Information - AMADA AC2510 NT + MP 250

Control Unit

Control Brand: AMADA
Control Model: AMNC-F

Dimensions

Machine Height: 2082 mm
Machine Length: 4165 mm
Machine Weight: 13000 kg

Movement

X-axis Travel: 2500 mm
Y-axis Travel: 1270 mm

Technical Specification

Punching Force: 200 Kn

Additional Information

Turret type: 51-station turret
Maximum workpiece size: 1270 × 5000 mm
Maximum sheet thickness: 3.2 mm (mild steel)
Maximum sheet weight: 50 kg (feed speed F1); 150 kg (feed speed F4)
Position deviation: ±0.1 mm
Strokes per minute: Punching (5 mm pitch, X-axis) 350; Nibbling (5 mm pitch, Y-axis) 260
Maximum stroke length: 42 mm
Maximum feed speed: X 80 m/min; Y 60 m/min
Turret indexing speed: 30 per minute
Electrical connection power: 19 kVA
Compressed air consumption: 500 l/min
Operating air pressure: 5 bar

Additional equipment

Loading system MP 250 included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
