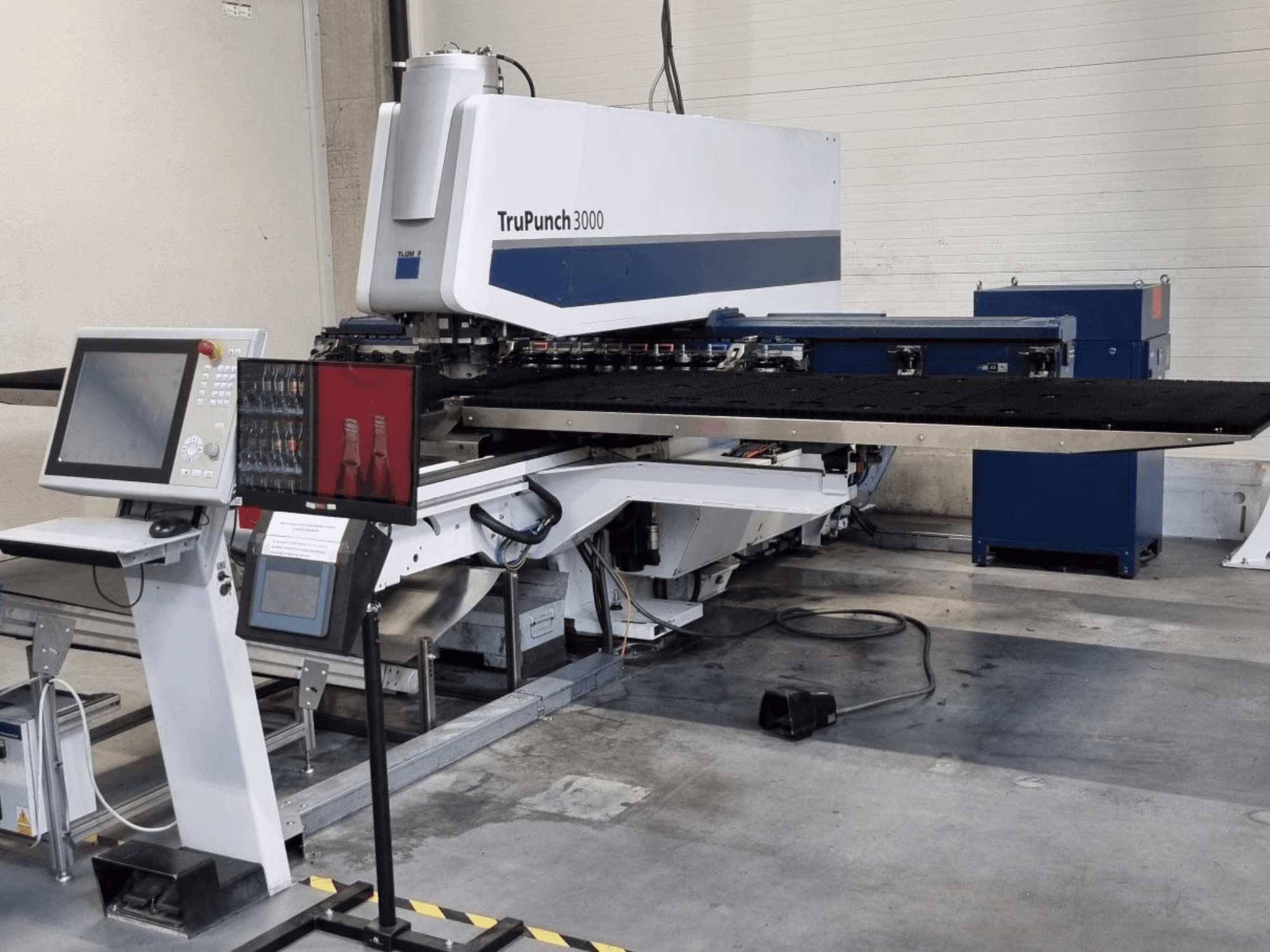

TRUMPF - TruPunch 3000PL-PUN-TRU-2013-00002

• Maximum punching rate: 1000 strokes/min

• Maximum marking rate: 2500 strokes/min

• MultiTool change time: 0.3 sec

• Tool stations: 18

• Sheet clamps: machine equipped with 3 vertically movable clamps

• Maximum part size via part flap: 500 x 500 mm

• Maximum part size via fixed chute: 80 x 50 mm

• Control: BOSCH MTX CMP70 with 17-inch touchscreen

• Tool holder: Rotating single-tool holder

• Thread forming: M2.5 to M10, with thread counter and tool breakage monitoring

• Marking/embossing function

• Retractable die

• Programmable stripper

• Automatic tool length compensation

• Punch stroke counter

• Automatic punch lubrication

• Vacuum slug removal

• Forming function

• Brush table with loading/unloading support

• Automatic repositioning with programmable clamps

• Average power consumption (production): 5.6 kW

• Average power consumption (automatic shutdown mode): 0.3 kW

• CE marked

• Full service history available

• Machine under power and in operation; test possible

Additional equipment

• Independent part conveyor - not included in the sale

• Tooling (e.g., RTC tool cassettes, punches/dies) - not included in the sale
