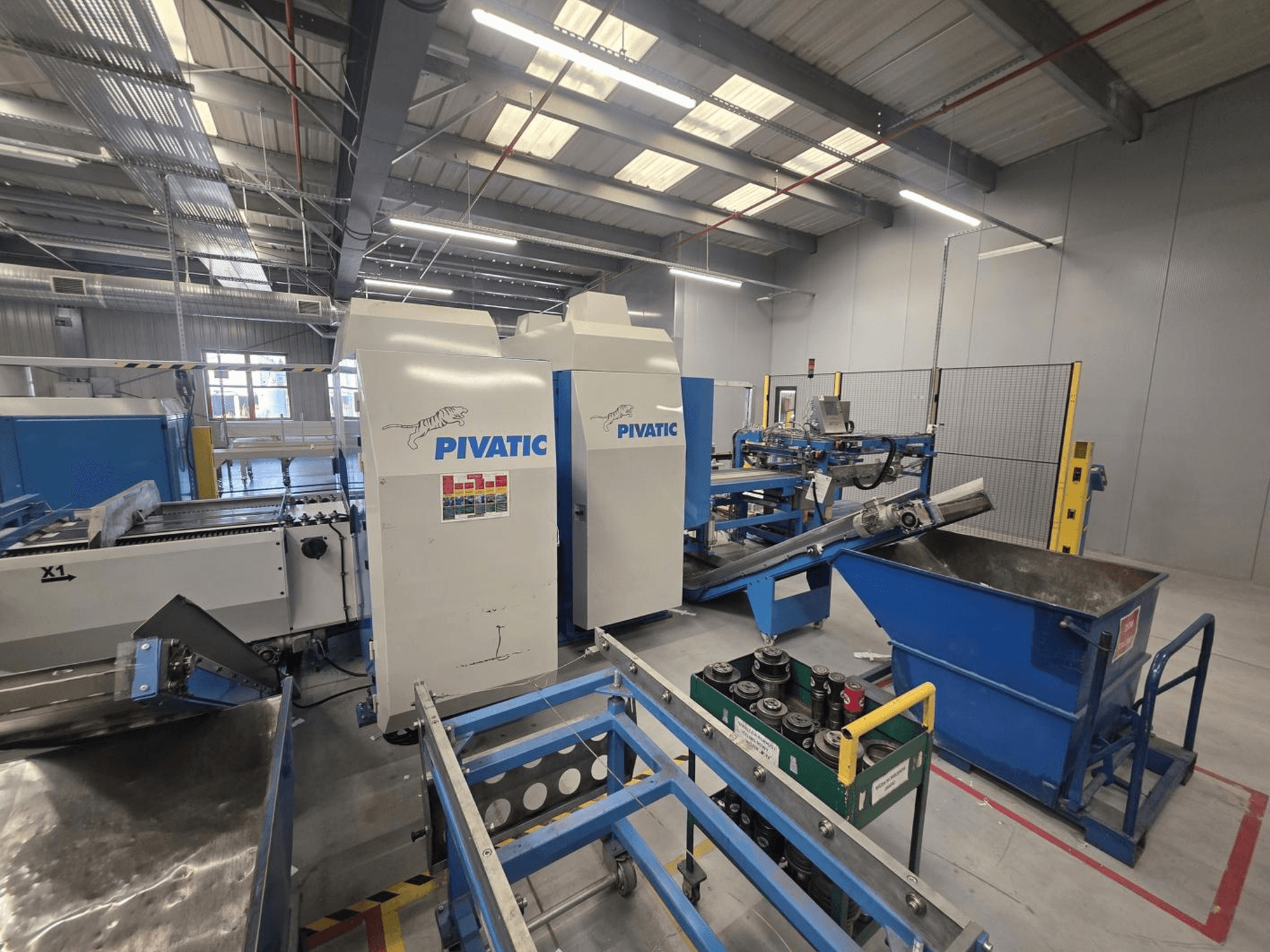

Pivatic - Punching Line PCC80-e TT HTPL-PUN-PIV-2013-00001

• Application: Serial production of flat sheet metal parts (panels, brackets, enclosures, electrical cabinet parts, etc.) requiring holes, cut-outs, and notches

• Process flow: Coil → uncoiling → straightening → positioning → TT punching → HT punching → part cutting → discharge/stacking

• Technical specifications:

  • Sheet width: 60–830 mm

  • Sheet thickness: 0.5–2.0 mm (version available for up to 4.0 mm)

  • Maximum coil weight: 5,000 kg

  • Installed power: 20 kW

  • Power supply: 3 x 400 V + PE

  • Frequency: 50 Hz

• Punching system:

  • TT (Thick Turret): CNC punching with standard cassette-type tools for flexible holes/cut-outs/contours

  • HT (Hard Tool): Second punching section using dedicated tooling for repetitive operations

• Space requirements:

  • Main line footprint: 17.5 x 5.5 m

  • Additional space for scrap: 1.5 m

  • Additional space for HT section: 1.55 m

• Machine condition: Fully operational and in production; inspection and trial possible

Additional equipment

• Included:

  • Coil positioning carts

  • Coil uncoiler

  • Sheet straightener

  • Control panel for uncoiling/straightening unit and coil carts

  • Main control panel

  • Tilting conveyor for selectable product discharge

  • Transport and stacking module

  • Safety system with fixed guards and photoelectric barriers

  • Control cabinet with hydraulic power unit

  • Tool cassette carts

  • Hard Tool transport and storage station

• Not included:

  • Punching tools

  • Tool cassettes

  • Robot shown in some photos
