UZMA - MAKINA PDM 30HU-PUN-UZM-2012-00001

Name: UZMA MAKINA PDM 30
Brand: UZMA
SKU: HU-PUN-UZM-2012-00001
Price: 27000 EUR
Availability: InStock

27,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used UZMA MAKINA PDM 30 For Sale | gindumac.com

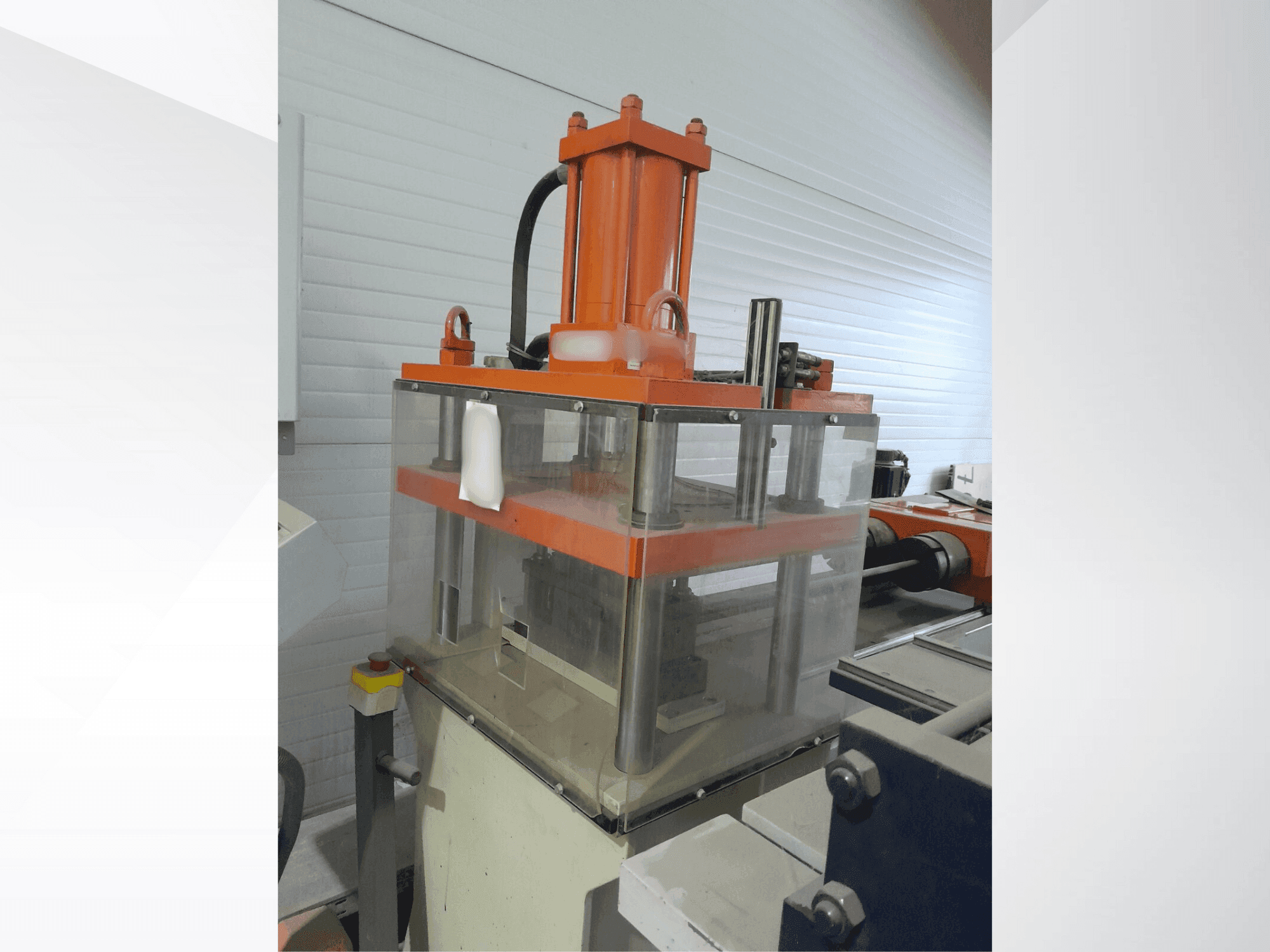

This UZMA MAKINA PDM 30 was manufactured in 2012. It features an electronic PLC with a standalone control system, a maximum tube diameter of 90 mm, and a profile size up to 40 x 80 / 60 x 60 mm. The hydraulic motor power is 4 kW, with a total motor power of 5.5 kW. Consider the opportunity to buy this UZMA MAKINA PDM 30 CNC punching machine. Contact us for more information.

Overview

brand: UZMA
year: 2012
MODEL: MAKINA PDM 30
application type: Punching
Location: Hungary
machine type: CNC Punching Machine
availability: Immediately

Technical Information - UZMA MAKINA PDM 30

General Data

Measurements width: 650 MM
Measurements depth: 4000 MM
Measurements height: 1000 MM
Machine weight: 2000 KG

Main drive

Main motor power: 5.5 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Hydraulic motor power (kw): 4 kw
- - Maximum tube diameter (mm): 90 mm
- - Maximum profile size (mm): 40 x 80 mm / 60 x 60 mm
- - Maximum wall thickness (mm): 3 mm
- - Tube feeding speed (mm/sec): 350 mm/sec
- - Maximum hydraulic pressure (bar): 190 bar
- - Oil tank capacity (l): 150 l
- - Network frequency: 380 v / 50 hz / three-phase
- - Control voltage: 24v dc

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
