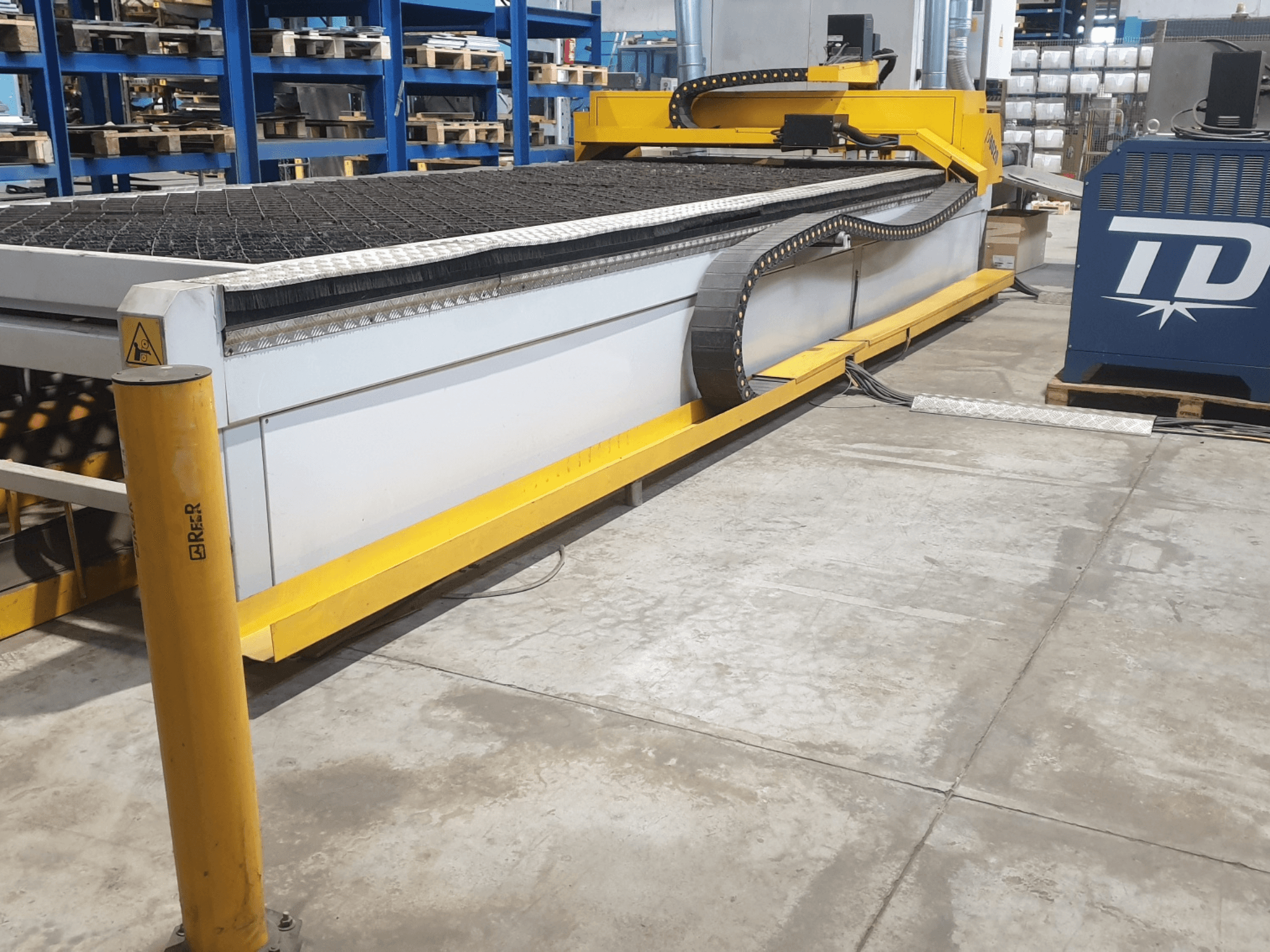

➤ Used THERMAL DYNAMICS UltraCut 200 | Plasma Cutter

This Thermal Dynamics UltraCut 200 was manufactured in 2012. It features a robust output current range of 10-200 A and a duty cycle of 100% at 200 A, ensuring continuous operation. The cutting capacity on mild steel reaches up to 40 mm with a maximum edge start of 65 mm. It includes a liquid-cooled XT-300 precision torch and a DFC-3000 digital gas console with touchscreen. For more information about this machine, please reach out to us.

Overview

brand: THERMAL DYNAMICS
year: 2012
MODEL: UltraCut 200
application type: Cutting
Location: Italy
machine type: Plasma Cutting Machine

Technical Information - THERMAL DYNAMICS UltraCut 200

General Data

Measurements width: 700 mm
Measurements depth: 1054 mm
Measurements height: 978 mm
Machine weight: 197 kg

Additional Information

Control Interface: DFC-3000 digital gas console with touchscreen (TSC-3000)

Main Drive

Rated Output Power: 36 kW
Duty Cycle (at 40 °C): 100% @ 200 A, 180 V

Movement

Output Voltage Range: 80 – 180 V DC
Open Circuit Voltage: 380 V DC

Tools

Torch Type: XT-300 precision torch with SpeedLok™ cartridge system
Marking Function: Yes – plasma marking without changing consumables

Media

Plasma Gases: O₂, Ar-H₂, N₂, Air (8.3 bar)
Shield Gases: O₂, N₂, Air, H₂O (0.6 L/min water mist)
Cooling: Liquid-cooled (closed loop)

Additional Equipment

Communication: Fiber optic link for noise-free control
Certifications: CE, CCC, CSA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
