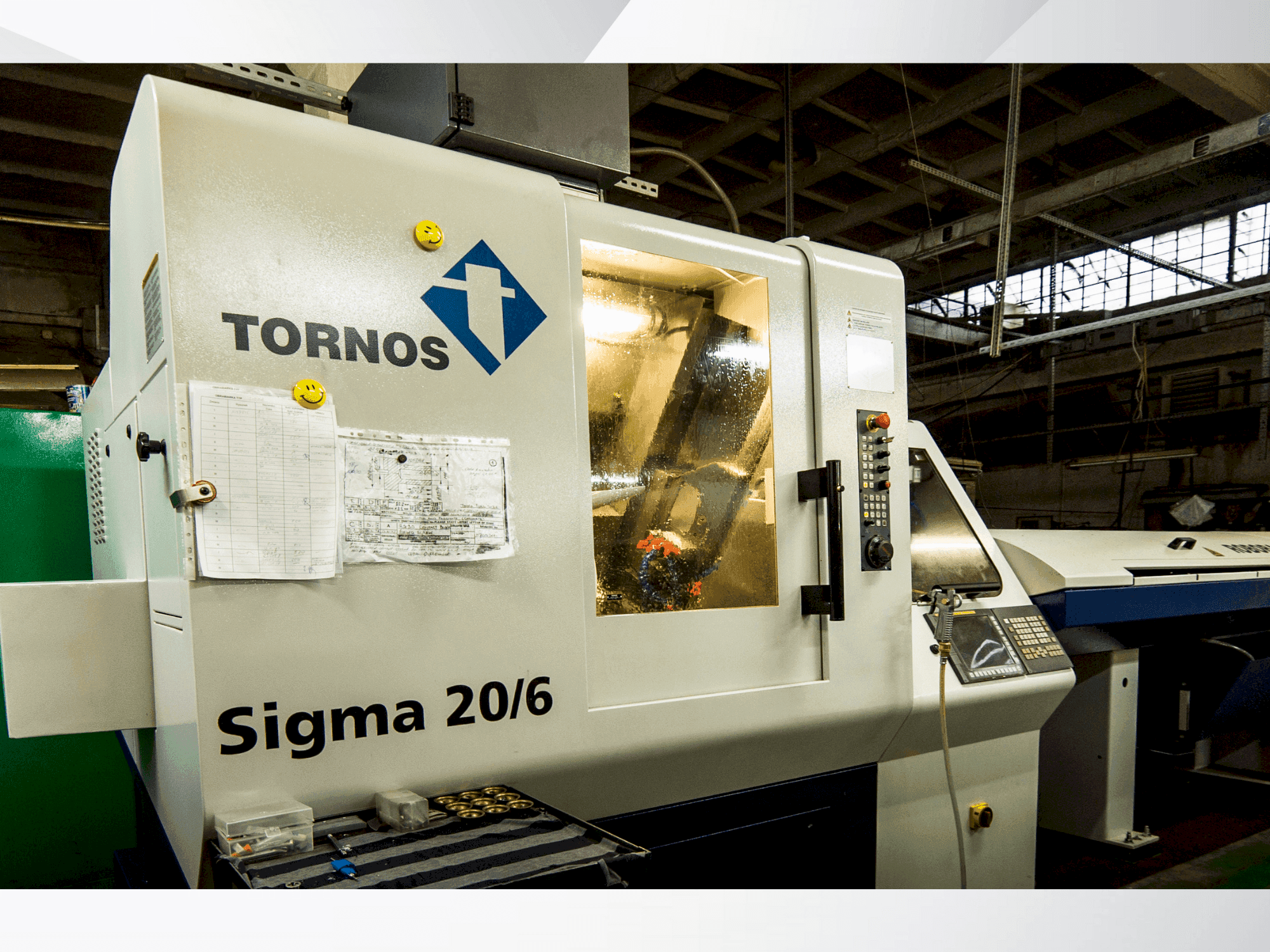

Front view of TORNOS DECO Sigma 20/6  machine

TORNOS - DECO Sigma 20/6PL-TUR-TOR-2015-00002

130,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 8-axis Tornos DECO Sigma 20/6 swiss type turning machine was manufactured in 2015. It features a maximum bar capacity of Ø 20 mm, spindle speeds up to 10,000 rpm, and a rapid axis traverse of 30 m/min. Equipped with a Fanuc 31i control and a 3 meters bar feeder, this machine offers precision and efficiency for complex turning tasks. Ideal for high-volume production, the Tornos DECO Sigma 20/6 machine we have for sale. Contact us for further details regarding this swiss type turning machine.

Overview

  • brand: TORNOS
  • year: 2015
  • MODEL: DECO Sigma 20/6
  • production hours: 39450
  • application type: Turning
  • Location: Poland
  • machine type: Swiss Type Turning Machine
  • availability: Immediately
  • control unit brand: FANUC

Technical Information - TORNOS DECO Sigma 20/6

Control Unit

  • Model: 31i
  • Brand: FANUC

Main drive

  • Spindle speed range: 100-10,000 rpm (Main Spindle and Counter Spindle) 1/MIN
  • Spindle motor power: 3.7 (5.5) kW (Main Spindle and Counter Spindle)

    Additional Equipment

    • - 3 meters bar feeder

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max bar diameter: Ø 20 (25. 4) mm / max workpiece length: 200 mm (turning with guide bush)
        • - Tool slide at guide bush: number of tool positions at guide bush (fixed or rotary): 15
        • - Tool shank section: 16 x 16 mm
        • - Max. Number of cross rotary tools at guide bush: 4
        • - Programmable rotary tool speed for s11: 100-6000 rpm
        • - Max. Rotary tool drive power: 1. 5 (2. 2) kw
        • - Counter spindle and operations on the second side: max. Number of tool positions for second side operations: 11
        • - Max. Number of fixed and rotary spindles: 4
        • - Programmable rotary tool speed for s41: 100-6000 rpm
        • - Max. Rotary tool drive power: 1. 5 (2. 2) kw
      • Qualitative Machine Benefits:
        • - Installed power: 14 kva

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
