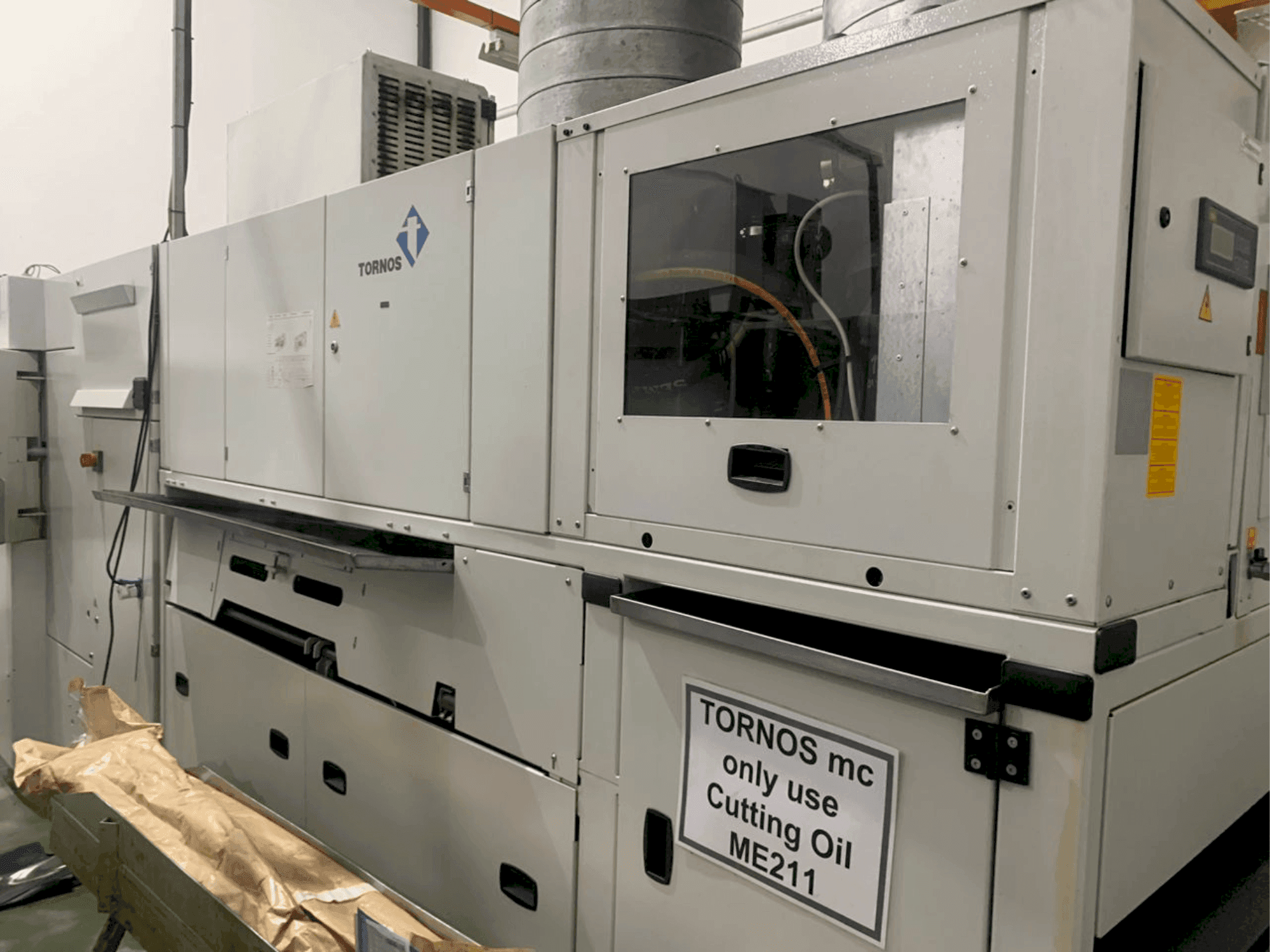

Front view of TORNOS MultiSWiss 6x14 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TORNOS MultiSwiss 6x14

Photo Gallery

TORNOS - MultiSwiss 6x14SG-TUR-TOR-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used TORNOS MultiSwiss 6x14 For Sale | gindumac.com

This 7-axis TORNOS MultiSwiss 6x14 swiss type turning machine was manufactured in 2013. It features a bar passage of 4-14 mm, a maximum part length of 40 mm, and a spindle speed up to 8,000 rpm. The machine includes advanced Fanuc controls and an integrated PC for programming. If you are looking to get high-quality turning capabilities, consider the TORNOS MultiSwiss 6x14 machine we have for sale.Contact us for more information about this machine.

Overview

brand: TORNOS
year: 2013
MODEL: MultiSwiss 6x14
application type: Turning
Location: Singapore
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - TORNOS MultiSwiss 6x14

Control Unit

Control Brand: FANUC

Dimensions

Machine Weight: 7000 kg

Movement

Number of Axes: 7

Technical Specification

Spindle Power: 59 kW
Spindle Speed: 8000 RPM

Additional Information

Additional equipment

Spindle cooling: With oil / Oil tank capacity (l): 900
Cutting oil filtration (mµ): 50
Standard cutting oil pump: Outlet pressure (bars): 4 /Flow rate (l/min): 150
High-pressure pump (options): a) Outlet pressure (bars): 35, Flow rate (l/min): 40 / b) Outlet pressure (bars): 80, Flow rate (l/min): 26

Machine Benefits

Technical Machine Benefits

Main spindle power (kw): 5. 6 / main spindle torque (nm): 7. 5
Number of linear axes: 14+1 (y axis black edition machine)
Bar passage (mm): 4-14 / max. Part length (mm): 40 / max. Remnant length (mm): 70
Max. Number of tools: 18 / max. Number of tools for back work: 2

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
