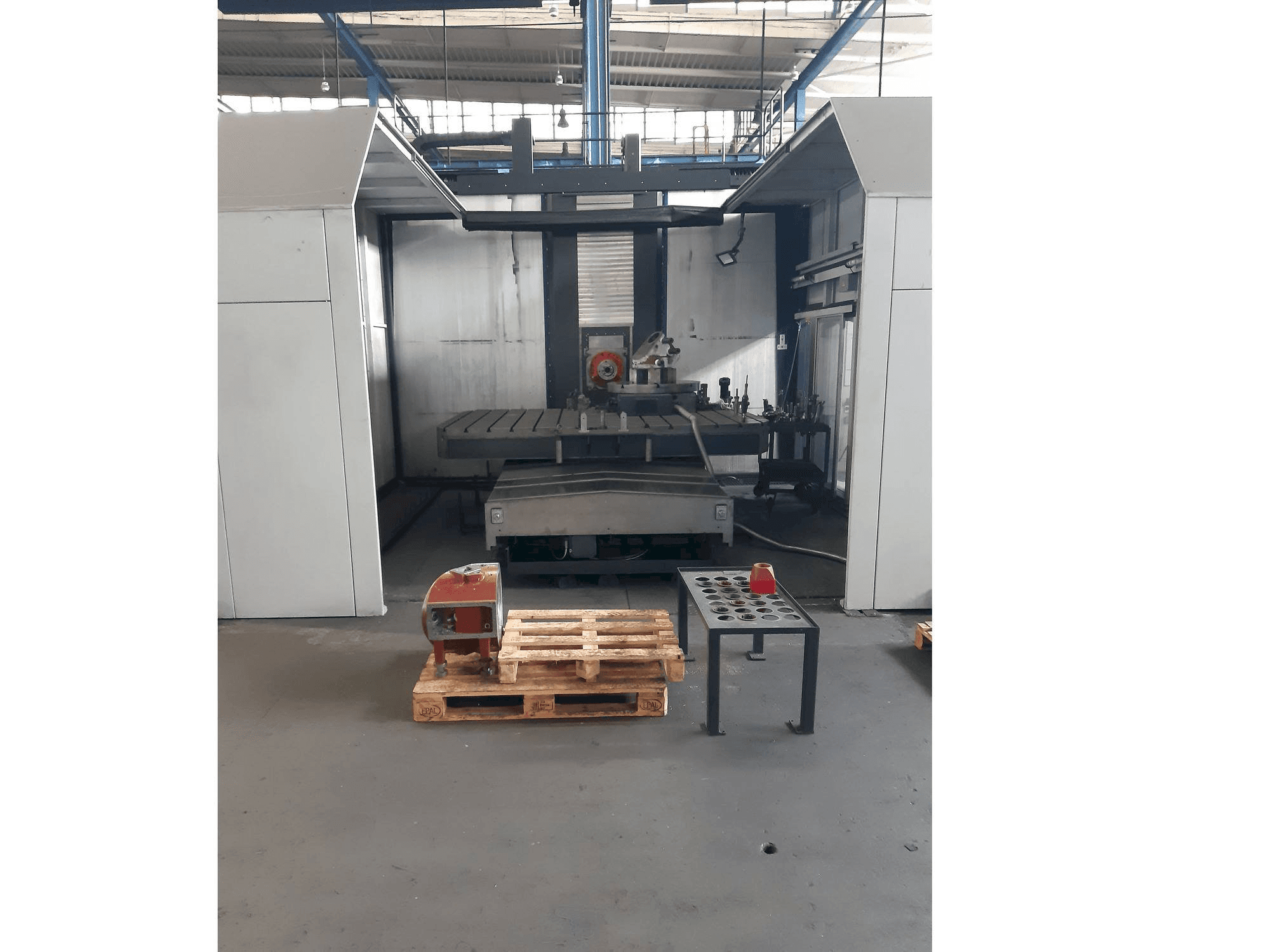

TOS Kurim FOQ 80 Milling Machine

This TOS Kurim FOQ 80 Milling Machine was manufactured in the Czech Republic in the year 2005. This 7 axis machine operates through a Heidenhain iTNC 530 control unit. It can work with a spindle speed up to 4000 rpm. It has a table of 2000 mm outer length and 3000 mm outer width. The machine is in a very good condition.

Overview

brand: TOS Kurim
year: 2005
MODEL: Kurim FOQ 80
application type: Other Machine Tools
Location: Czech Republic
machine type: Machine Tool
control unit brand: HEIDENHAIN

Technical Information - TOS Kurim Kurim FOQ 80

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Machine Weight: 63000 kg
Table Length: 2000 mm
Table Width: 3000 mm

Movement

Number of Axes: 7
X-axis Travel: 2600 mm
Y-axis Travel: 1650 mm
Z-axis Travel: 825 mm

Technical Specification

Max. Tool Weight: 15 kg
Number of Tools: 20
Spindle Power: 30 kW
Spindle Speed: 4000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good conditions

Technical Machine Benefits

Spindle for interchangeable heads
Working feeds range x, y, z 1 – 30 000 mm/min
Maximal feed force 20 000 n
Spindle torque 2000nm
Head va1: 4000 rpm, 2000 nm, iso50 ad, din
2-axis rotary head vk: 4000 rpm, 1000nm, iso50 ad, din
Rmp60 renishaw workpiece probe
High pressure cooling 30 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
